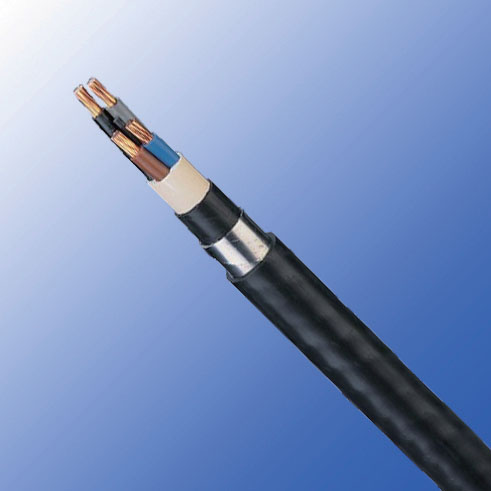

XAV / H1XAV
Application and Description
These cables are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion with mechanical protection is necessary and in this case the intensity must be reduced by 15%.
Standard and Approval
IEC60502-1
NP2365

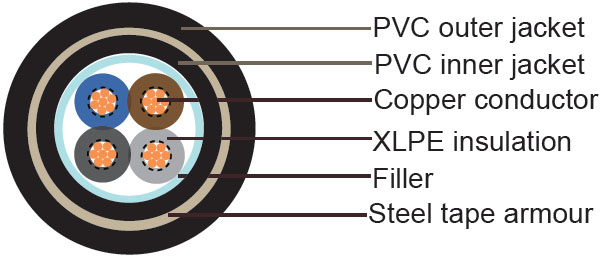

Cable Construction
| Flexible copper strands |
| Strands to IEC 60228, ≤4mm2,class 1, ≥6mm2,class 2 |
| XLPE insulation according to NF C 32-321 |
| Color coded to HD 308 |
| Not fibrous and not hygroscopic filler(optional) |
| PVC inner jacket |
| Two steel tapes helically wraped armour |
| Flexible PVC outer jacket |
Technical Characteristics
| Working Voltage |
600/1000 volts |
| Test voltage |
3500 volts |
| Minimum bending radius |
6 x O |
| Operation temperature range |
-10 °C to 60 °C |
| Short-circuit temperature |
250 °C |
| Flame retardant |
IEC 60332-1/NF C 32-070 C2 |
| Insulation resistance |
1000 MΩ x km |
Cable Parameter
| Cross Section |
Insulation thickness |
Amour thickness |
Minimum Sheath thickness |
Maximum Overall diameter |
Approx Cable weight |
| mm² |
mm |
mm |
mm |
mm |
kg/km |
| 2x1.5 |
0.7 |
0.2 |
1.3 |
11.5 |
230 |
| 2x2.5 |
0.7 |
0.2 |
1.3 |
12.5 |
275 |
| 2x4 |
0.7 |
0.2 |
1.4 |
13.5 |
330 |
| 2x6 |
0.7 |
0.2 |
1.4 |
15.5 |
430 |
| 2x10 |
0.7 |
0.2 |
1.4 |
16.5 |
555 |
| 2x16 |
0.7 |
0.2 |
1.5 |
19 |
770 |
| 2x25 |
0.9 |
0.2 |
1.6 |
22.5 |
1080 |
| 2x35 |
0.9 |
0.2 |
1.7 |
25 |
1390 |
| 3x1.5 |
0.7 |
0.2 |
1.3 |
12 |
255 |
| 3x2.5 |
0.7 |
0.2 |
1.3 |
13 |
305 |
| 3x4 |
0.7 |
0.2 |
1.4 |
14 |
380 |
| 3x6 |
0.7 |
0.2 |
1.4 |
16 |
500 |
| 3x10 |
0.7 |
0.2 |
1.5 |
17.5 |
665 |
| 3x16 |
0.7 |
0.2 |
1.5 |
20 |
930 |
| 3x25 |
0.9 |
0.2 |
1.6 |
24 |
1325 |
| 3x35 |
0.9 |
0.2 |
1.7 |
26.5 |
1720 |
| 3x50 |
0.9 |
0.2 |
1.8 |
29 |
2125 |
| 3x70 |
1.1 |
0.2 |
2 |
34.5 |
3080 |
| 3x95 |
1.1 |
0.5 |
2.1 |
40 |
4505 |
| 3x120 |
1.2 |
0.5 |
2.3 |
44.5 |
5540 |
| 3x150 |
1.4 |
0.5 |
2.4 |
48.5 |
6655 |
| 3x185 |
1.6 |
0.5 |
2.5 |
53.5 |
8150 |
| 3x240 |
1.7 |
0.5 |
2.7 |
61 |
10575 |
| 3x300 |
1.8 |
0.5 |
2.9 |
66.5 |
13055 |
| 3x50+35 |
1.0/09 |
0.2 |
1.9 |
33 |
2730 |
| 3x70+50 |
1.1/0.9 |
0.2 |
2 |
36 |
3440 |
| 3x95+50 |
1.1/1.0 |
0.5 |
2.2 |
42.5 |
5080 |
| 3x120+70 |
1.2/1.1 |
0.5 |
2.3 |
46.5 |
6275 |
| 3x150+70 |
1.4/1.1 |
0.5 |
2.5 |
50 |
7340 |
| 3x185+70 |
1.6/1.1 |
0.5 |
2.6 |
56 |
8975 |
| 3x240+95 |
1.7/1.1 |
0.5 |
2.8 |
62.5 |
11435 |
| 4x1.5 |
0.7 |
0.2 |
1.3 |
13 |
290 |
| 4x2.5 |
0.7 |
0.2 |
1.4 |
14 |
355 |
| 4x4 |
0.7 |
0.2 |
1.4 |
15 |
440 |
| 4x6 |
0.7 |
0.2 |
1.4 |
17 |
585 |
| 4x10 |
0.7 |
0.2 |
1.5 |
19 |
800 |
| 4x16 |
0.7 |
0.2 |
1.6 |
22 |
1120 |
| 4x25 |
0.9 |
0.2 |
1.7 |
26 |
1650 |
| 4x35 |
0.9 |
0.2 |
1.8 |
29 |
2135 |
| 4x50 |
1 |
0.2 |
1.9 |
32.5 |
2745 |
| 4x70 |
1.1 |
0.5 |
2.1 |
39 |
4295 |
| 4x95 |
1.1 |
0.5 |
2.3 |
44.5 |
5660 |
| 4x120 |
1.2 |
0.5 |
2.4 |
48.5 |
6880 |
| 4x150 |
1.4 |
0.5 |
2.6 |
53 |
8315 |
| 4x185 |
1.6 |
0.5 |
2.7 |
60.5 |
10510 |
| 4x240 |
1.7 |
0.5 |
2.9 |
67 |
13370 |
| 4x300 |
1.8 |
0.5 |
3.1 |
73 |
16360 |
| 5x1.5 |
0.7 |
0.2 |
1.4 |
14 |
335 |
| 5x2.5 |
0.7 |
0.2 |
1.4 |
15 |
415 |
| 5x4 |
0.7 |
0.2 |
1.4 |
16 |
515 |
| 5x6 |
0.7 |
0.2 |
1.5 |
18.5 |
705 |
| 5x10 |
0.7 |
0.2 |
1.6 |
21 |
955 |
| 5x16 |
0.7 |
0.2 |
1.8 |
23.5 |
1340 |
| 5x25 |
0.9 |
0.2 |
1.8 |
29.5 |
2085 |
| 7x1.5 |
0.7 |
0.2 |
1.4 |
15 |
395 |
| 7x2.5 |
0.7 |
0.2 |
1.4 |
16 |
495 |
| 12x1.5 |
0.7 |
0.2 |
1.5 |
19 |
605 |
| 12x2.5 |
0.7 |
0.2 |
1.5 |
20.5 |
750 |
| 19x1.5 |
0.7 |
0.2 |
1.5 |
21.5 |
775 |
| 19x2.5 |
0.7 |
0.2 |
1.6 |
24 |
1045 |
| 24x1.5 |
0.7 |
0.2 |
1.6 |
24.5 |
980 |
| 24x2.5 |
0.7 |
0.5 |
1.7 |
29 |
1570 |
| 27x1.5 |
0.7 |
0.2 |
1.7 |
25 |
1050 |
| 27x2.5 |
0.7 |
0.2 |
1.8 |
28.5 |
1410 |
| 37x1.5 |
0.7 |
0.2 |
1.7 |
28 |
1320 |
| 37x2.5 |
0.7 |
0.2 |
1.8 |
31.5 |
1790 |
