XG (frs )/ XZ1(frs)
Application and Description
These cables are specially designed to transmit electric power in the extrem conditions that there are in a large fire. assuring electric supply to emergency circuits. like signaling lights. fume extractors. acustic alarms. water pumps. etc. In case of fire. it does not emit toxic or corrosive gases. thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason. its use is recommended in public places such as: hospitals. schools. museums. airports. bus terminals. shops in general. tunnels. the underground. etc.. as well as in calculation centres. offices. production plants. laboratories. etc.
Standard and Approval
IEC60502-1

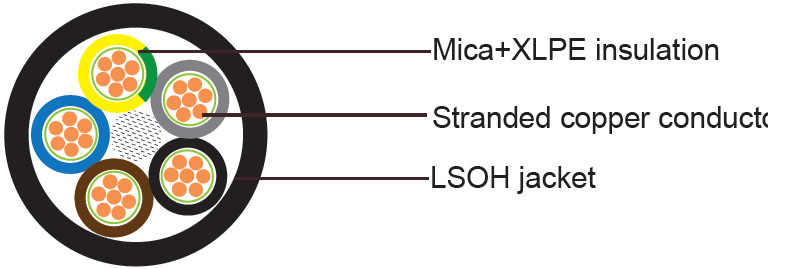

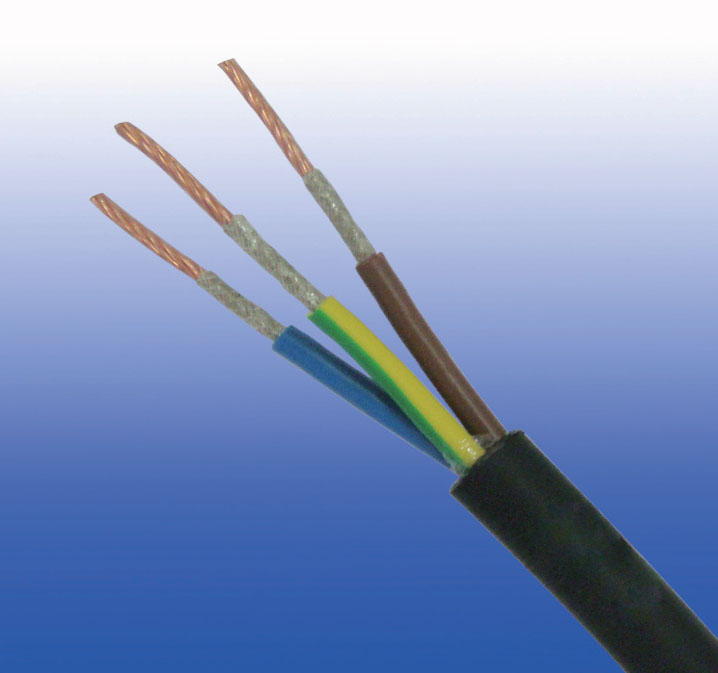

Cable Construction
 |
 |
Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to NP 2363
Mica tape+XLPE insulation
Colour coded to HD 308
Not fibrous and not hygroscopic filler(optional)
Flexible LSOH outer jacket
Technical Characteristics
| Working Voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 12 x Ø |
| Operation temperature range | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Insulation resistance | 1000 MΩ x km |
| Halogen free | IEC 60754-1, EN 50267-2-1 |
| No corrosive gases | IEC 60754-2, EN 50267-2-2 |
| No toxic gases | NES 02-713, NF X 70-100 |
| Low smoke density | IEC 61034, EN 50268-2 |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
Cable Parameter
| No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # x mm² | mm | kg/km | # x mm² | mm | kg/km |
| 1x10 | 95 | 150 | 4x1.5 | 125 | 190 |
| 1x16 | 105 | 210 | 4x2.5 | 135 | 240 |
| 1x25 | 120 | 310 | 4x4 | 150 | 325 |
| 1x35 | 130 | 405 | 4x6 | 160 | 410 |
| 1x50 | 145 | 530 | 4x10 | 180 | 595 |
| 1x70 | 165 | 805 | 4x16 | 21 | 850 |
| 1x95 | 180 | 995 | 3x16+1 G 10 | 200 | 800 |
| 1x120 | 200 | 1235 | 3x25+1x16 | 235 | 1205 |
| 1x150 | 215 | 1500 | 3x35+1x16 | 255 | 1525 |
| 1x185 | 240 | 1865 | 3x50+1x25 | 290 | 2050 |
| 1x240 | 270 | 2400 | 3x70+1x35 | 355 | 2870 |
| 1x300 | 295 | 3010 | 3x95+1x50 | 375 | 3875 |
| 2x1.5 | 110 | 140 | 3x120+1x70 | 425 | 4965 |
| 2x2.5 | 120 | 175 | 5x1.5 | 135 | 225 |
| 2x4 | 130 | 225 | 5x2.5 | 145 | 295 |
| 2x6 | 140 | 280 | 5x4 | 165 | 390 |
| 2x10 | 155 | 385 | 5x6 | 175 | 500 |
| 2x16 | 180 | 545 | 5x10 | 195 | 730 |
| 2x25 | 210 | 810 | 5x16 | 230 | 1055 |
| 3x1.5 | 115 | 160 | 3x25+2G16 | 255 | 1390 |
| 3x2.5 | 120 | 175 | 3x35+2G16 | 310 | 2320 |
| 3x4 | 140 | 270 | 3x50+2G25 | 270 | 3190 |
| 3x6 | 145 | 335 | 3x70+2G35 | 355 | 4525 |
| 3x10 | 165 | 480 | 3x95+2G50 | 415 | 5989 |
