NF M 87-202 EISF
Applications
These NF M 87-202 EISF instrumentation cables are used to transmit analogue or digital signals in easurement and process control where chemicals may be present.

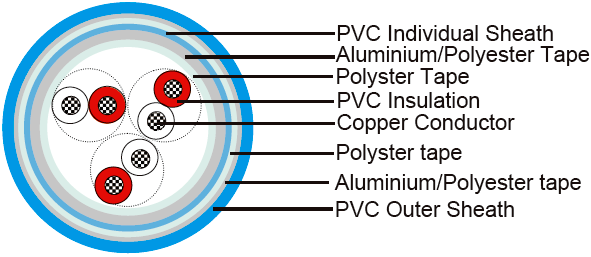

Construction
 |
| Conductor | Solid or Stranded copper conductor |
| Insulation | PVC (70 mm maximum pair length) |
| Individual Binder Tape | Polyster tape |
| Individual Screen | Aluminium/polyester tape |
| Individual Sheath | PVC |
| Overall Binder Tape | Polyster tape |
| Collective Screen | Aluminium/polyester tape |
| Outer Sheath | PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant) |
| Outer Sheath Colour | Light-blue |
Core identification
| Colours | Natural | Red | Blue | Yellow |
| 1 pair | √ | √ | ||
| 1 triple | √ | √ | √ | |
| 1 quad | √ | √ | √ | √ |
Natural cores printed with pair/triple number
Standards References
- NF M 87-202
- UTE C 32-014
- NF C 32-020
- IEC 60332-1
- IEC 60332-3-24
Characteristics
| Voltage Rating | 300/500V |
| Operating Temperature | -40°C/+90°C |
| Installation Temperature | MAX+50°C |
| Maximum Voltage | 250V |
| Voltage Test | 2000V |
Maximum conductor d.c. Resistance
| Conductor Size | Ohm/km at +20°C |
| 1/0.80mm(0.50 sqmm) | 37.50 |
| 7/0.40mm(0.88 sqmm) | 21.40 |
| 7/0.53mm(1.50 sqmm) | 12.50 |
Capacitance between cond. (nf/km)
- 0.5 sqmm ≤ 145
- 0.88 sqmm ≤ 160
- 1.50 sqmm ≤ 180
Type/codification
| 1 Serie | Number of pairs, triples or quads / 01 to 27 |
| 2 Serie | Lay up in pair(IP) ,triple (IT) , quads (IQ) |
| 3 Serie | Core section 05 (0.5mm^2) , 09 (0.88 mm^2) or 15(1.5mm^2) |
| 4 Serie | Overall screen(EG) or individual screen + overall screen(EI) |
| 5 Serie | Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF) |
Dimensions and Weight
| NF M 87-202 | Number of beams x cross section | Cond. mm^2 | Outer Diameter(mm) | Weight(kg/km) | |
|---|---|---|---|---|---|
| Min. | Max. | ||||
| 03 IP 05 EISF | 3X2X0.50 | 0.50 | 11.10 | 12.80 | 180 |
| 07 IP 05 EISF | 7X2X0.50 | 0.50 | 15.40 | 17.70 | 335 |
| 12 IP 05 EISF | 12X2X0.50 | 0.50 | 19.80 | 22.80 | 545 |
| 19 IP 05 EISF | 19X2X0.50 | 0.50 | 24.50 | 28.10 | 820 |
| 27 IP 05 EISF | 27X2X0.50 | 0.50 | 28.90 | 33.20 | 1135 |
| 03 IP 09 EISF | 3X2X0.88 | 0.88 | 13.50 | 15.50 | 270 |
| 07 IP 09 EISF | 7X2X0.88 | 0.88 | 19.00 | 21.80 | 500 |
| 12 IP 09 EISF | 12X2X0.88 | 0.88 | 24.50 | 28.10 | 820 |
| 19 IP 09 EISF | 19X2X0.88 | 0.88 | 30.30 | 34.80 | 1120 |
| 27 IP 09 EISF | 27X2X0.88 | 0.88 | 35.80 | 41.10 | 1700 |
| 01 IP 15 EISF | 1X2X1.50 | 1.50 | 7.20 | 8.40 | 90 |
| 07 IT 05 EISF | 7X3X0.50 | 0.50 | 16.90 | 19.40 | 425 |
| 12 IT 05 EISF | 12X3X0.50 | 0.50 | 21.50 | 24.60 | 695 |
| 07 IT 09 EISF | 7X3X0.88 | 0.88 | 20.60 | 23.70 | 655 |
| 12 IT 09 EISF | 12X3X0.88 | 0.88 | 26.50 | 30.40 | 1045 |
| 01 IT 15 EISF | 1X3X1.50 | 1.50 | 7.50 | 8.80 | 110 |
