1KV Heat shrinkable cable Joints
HlVJ
 |
 |
 |

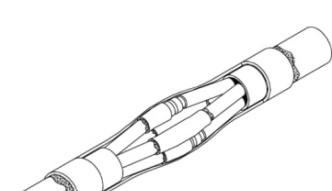

| Type UA | Type CN | Type A |
Application
Straight-through joints Type HLVJ are designed to cover 3, 3.5 and 4-core plastic insulated cables (with PVC,PE, XLPE, EPR outer sheath) with or without armouring (steel wire armour / steel tape armour). The designs cover a wide range of cable cross section.
Features
High mechanical protection
Excellent electrical insulation
Environment sealing and weathering resistance
Wide cross section range suitable for all types of connectors
Compact design
Unlimited shelf life, allowing immediate reenergizing
Standard
EN 50393, DIN VDE 0278-393, BS 7933-2, IEC 60502-4
Kit contents
Crimp connector and mechanical connector are available upon request. Adhesive lined core insulation and outer tube.
Ordering Information
Heat Shrinkable Straight Joints for unarmored plastic insulated cables with mechanical connectors.
| Voltage | Part no. | Cross section mm2 | Cable Type (Unarmoured) | Connector Type |
|---|---|---|---|---|
| Uo/U(Um) 0.6/1.0(1.2)kV | HLVJ-4/1.5-10-UA-M | 1.5 -10 | UA | M |
| HLVJ-4/6-25-UA-M | 6 -25 | UA | M | |
| HLVJ-4/35-70-UA-M | 35 -70 | UA | M | |
| HLVJ-4/50-120-UA-M | 50 -120 | UA | M | |
| HLVJ-4/150-300-UA-M | 150 -300 | UA | M |
Heat Shrinkable Straight Joints for unarmored plastic insulated cables with crimp connectors
| Voltage | Part no. | Cross section mm2 | Cable Type (Unarmoured) | Connector Type |
|---|---|---|---|---|
| Uo/U(Um) 0.6/1.0(1.2)kV | HLVJ-4/1.5-10-UA-C | 1.5 -10 | UA | C |
| HLVJ-4/6-25-UA-C | 6 -25 | UA | C | |
| HLVJ-4/16-25-UA-C | 16 -50 | UA | C | |
| HLVJ-4/50-120-UA-C | 50 -120 | UA | C | |
| HLVJ-4/150-300-UA-C | 150 -300 | UA | C |
Heat Shrinkable Straight Joints for plastic insulated cables (concentric neutral), with mechanical connectors.
| Voltage | Part no. | Cross section mm2 | Cable Type (concentric neutral ) | Connector Type |
|---|---|---|---|---|
| Uo/U(Um) 0.6/1.0(1.2)kV | HLVJ-4/10-35-CN-M | 10-35 | CN | M |
| HLVJ-4/25-70-CN-M | 25-70 | CN | M | |
| HLVJ-4/70-120-CN-M | 70-120 | CN | M | |
| HLVJ-4/150-240-CN-M | 150-240 | CN | M |
Heat Shrinkable Straight Joints for plastic insulated cables (concentric neutral), with crimp connectors.
| Voltage | Part no. | cross section mm2 | cable Type (concentric neutral ) | connector Type |
|---|---|---|---|---|
| Uo/U(Um) 0.6/1.0(1.2)kV | HLVJ-4/10-16-CN-C | 10-16 | CN | C |
| HLVJ-4/25-50-CN-C | 25-50 | CN | C | |
| HLVJ-4/70-150-CN-C | 70-150 | CN | C | |
| HLVJ-4/185-300-CN-C | 185-300 | CN | C |
Heat Shrinkable Straight Joints for armoured plastic insulated cables with mechanical connectors.
| Voltage | Part no. | cross section mm2 | cable Type (armoured) | connector Type | |
|---|---|---|---|---|---|
| Uo/U(Um) 0.6/1.0(1.2)kV | HLVJ-4/10-35-A-M | 10-35 | A | M | |
| HLVJ-4/25-70-A-M | 25-70 | A | M | ||
| HLVJ-4/50-150-A-M | 50-150 | A | M | ||
| HLVJ-4/120-300-A-M | 120-300 | A | M | ||
Heat Shrinkable Straight Joints for armoured plastic insulated cables with crimp connectors.
| Voltage | Part no. | cross section mm2 | cable Type (armoured) | connector Type |
|---|---|---|---|---|
| Uo/U(Um) 0.6/1.0(1.2)kV | HLVJ-4/1.5-4-A-C | 1.5-4 | A | C |
| HLVJ-4/6-16-A-C | 6-16 | A | C | |
| HLVJ-4/25-50-A-C | 25-50 | A | C | |
| HLVJ-4/70-150-A-C | 70-150 | A | C | |
| HLVJ-4/185-300-A-C | 185-300 | A | C |
Example: Kit part number : HLVJ- 4/A-A -M
Where: HLVJ- Heat Shrinkable Low Voltage Cable Joints; 4-number of cable cores; A-cross section range of cable conductor; A-the type of cable armour, SWA/AWA/STA; C- crimp type connectors No connectors supplied unless specified.
Technical Parameters
Performance of heat shrinkable low voltage cable joints when tested according to EN 50393 (CENELEC 623 S1)
| Test sequence | Item | Requirements acc. to Iec 60502.4 | Results | Performed test acc. to en 50393 |
|---|---|---|---|---|
| 1 | Impulse Withstand Voltage Test | No breakdown shall occur at 10 positive and 10 negative impulses of 20kV | No breakdown shall occur at 10 positive and 10 negative impulses of 20kV | Pass |
| 2 | AC Withstand Voltage Test (In Air and Ambient Temperature) | 4kV,1min No breakdown | 4kV,1min No breakdown | Pass |
| 3 | Insulation Resistance (in Air and Ambient Temperature) | ≥ 50MΩ | ≥ 50MΩ | Pass |
| 4 | Impact Test (In Air and Ambient Temperature) | 4kg wedge dropped from a height of 1000mm | No functional Damage | Pass |
| 5 | AC Withstand Voltage Test Immersed in the water of with a Height of 1000mm | 4kV,1min No breakdown | 4kV,1min No breakdown | Pass |
| 6 | Heating Cycle Test in Air | Heat the conductor to 95℃-100℃,63 times in air, No breakdown | Heat the conductor to 95℃-100℃, 63 times i air, No breakdown | Pass |
| 7 | Heating Cycle Test (Immersed in the Water of with a Height of 1000mm) | Heat the conductor to 95℃- 100℃，63 times in the water, No breakdown | Heat the conductor to 95℃- 100℃，63 times in the water, No breakdown | Pass |
| 8 | AC Withstand Voltage Test (Immersed in the Water of with a Height of 1000mm) | 4kV,1min No breakdown | 4kV,1min No breakdown | Pass |
| 9 | Insulation Resistance (in Air and Ambient Temperature) | ≥ 50MΩ | ≥ 50MΩ | Pass |
