Type 1 1.1/1.1KV Individually Screened
Applications
These individually copper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable.
Standards
- AS/NZS 1972:2006
- AS/NZS 1125
- AS/NZS 3808
|
 |

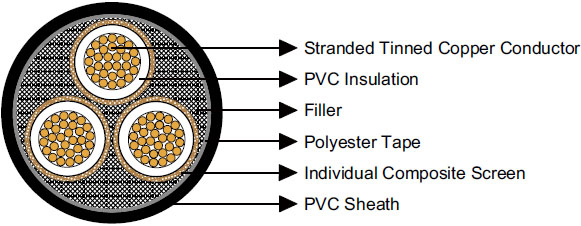

Construction
| Conductors |
Stranded copper conductor. |
| Insulation |
PVC. |
| Individual Composite Screen (earth conductor) |
Tinned annealed copper braiding interwove with polyester yarn. |
| Binding |
Polyester tape. |
| Sheath |
PVC sheath. |
Dimensions and Weight
| Number of Cores |
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
| |
mm^2 |
No/mm |
mm |
mm |
mm^2 |
mm |
mm |
kg/100m |
| Type 1 - Individually Screened |
| 3 |
1.5 |
30/0.25 |
0.8 |
0.20 |
3.5 |
0.8 |
10.1 |
16 |
| 4 |
1.5 |
30/0.25 |
0.8 |
0.20 |
4.6 |
0.8 |
11.1 |
21 |
| 3 |
10 |
77/0.40 |
1.0 |
0.20 |
6.8 |
1.0 |
18.6 |
59 |
| 4 |
10 |
77/0.40 |
1.0 |
0.20 |
9.0 |
1.0 |
20.5 |
75 |
| 3 |
16 |
126/0.40 |
1.0 |
0.20 |
7.9 |
1.3 |
21.6 |
84 |
| 4 |
16 |
126/0.40 |
1.0 |
0.20 |
10.6 |
1.3 |
23.7 |
110 |
