Type 209 1.1 to 11KV
Applications
Type 209 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.
Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

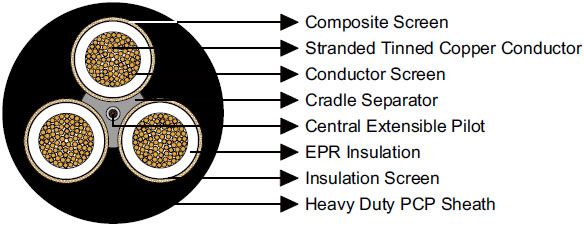

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Composite Screen (earth conductor) |
Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator |
Semiconductive PCP. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| 6 |
84/0.30 |
1.5 |
7/0.25 |
7.2 |
24/0.20 |
0.8 |
3.8 |
30.0 |
129 |
| 10 |
77/0.40 |
1.5 |
7/0.25 |
8.6 |
24/0.20 |
0.8 |
3.8 |
32.6 |
157 |
| 16 |
126/0.40 |
1.6 |
7/0.25 |
9.6 |
24/0.20 |
0.8 |
4.0 |
35.8 |
197 |
| 25 |
209/0.40 |
1.6 |
7/0.25 |
11.3 |
24/0.20 |
0.8 |
4.3 |
39.7 |
255 |
| 35 |
285/0.40 |
1.6 |
7/0.25 |
12.4 |
24/0.20 |
0.8 |
4.6 |
43.1 |
312 |
| 50 |
380/0.40 |
1.7 |
7/0.25 |
14.1 |
40/0.20 |
0.8 |
5.0 |
47.7 |
386 |
| 70 |
203/0.67 |
1.8 |
7/0.25 |
16.5 |
40/0.20 |
0.8 |
5.4 |
52.8 |
503 |
| 95 |
259/0.67 |
2.0 |
7/0.25 |
18.2 |
40/0.20 |
0.8 |
6.0 |
58.6 |
605 |
| 120 |
336/0.67 |
2.1 |
7/0.25 |
20.3 |
40/0.20 |
0.8 |
6.4 |
64.4 |
741 |
| 150 |
427/0.67 |
2.3 |
7/0.25 |
22.3 |
40/0.20 |
0.8 |
6.9 |
70.2 |
896 |
| 185 |
518/0.67 |
2.5 |
7/0.30 |
30.2 |
40/0.20 |
0.8 |
7.4 |
77.4 |
1092 |
| 240 |
672/0.67 |
2.8 |
7/0.30 |
33.6 |
40/0.20 |
0.8 |
8.2 |
86.0 |
1365 |
| 300 |
854/0.67 |
3.0 |
7/0.40 |
50.1 |
40/0.20 |
0.8 |
8.8 |
95.1 |
1715 |
| Type 209.3 |
| 16 |
126/0.40 |
3.0 |
7/0.25 |
13.1 |
24/0.20 |
0.8 |
5.3 |
46.2 |
301 |
| 25 |
209/0.40 |
3.0 |
7/0.25 |
14.8 |
24/0.20 |
0.8 |
5.6 |
50.1 |
369 |
| 35 |
285/0.40 |
3.0 |
7/0.25 |
15.8 |
24/0.20 |
0.8 |
5.9 |
53.5 |
431 |
| 50 |
380/0.40 |
3.0 |
7/0.25 |
17.2 |
40/0.20 |
0.8 |
6.3 |
57.6 |
507 |
| 70 |
203/0.67 |
3.0 |
7/0.25 |
18.6 |
40/0.20 |
0.8 |
6.6 |
62.5 |
624 |
| 95 |
259/0.67 |
3.0 |
7/0.25 |
20.3 |
40/0.20 |
0.8 |
7.1 |
66.2 |
719 |
| 120 |
336/0.67 |
3.0 |
7/0.30 |
27.2 |
40/0.20 |
0.8 |
7.4 |
72.0 |
876 |
| 150 |
427/0.67 |
3.0 |
7/0.40 |
39.6 |
40/0.20 |
0.8 |
7.8 |
78.0 |
1072 |
| 185 |
518/0.67 |
3.0 |
7/0.40 |
42.2 |
40/0.20 |
0.8 |
8.2 |
83.4 |
1236 |
| 240 |
672/0.67 |
3.0 |
7/0.40 |
46.6 |
40/0.20 |
0.8 |
8.8 |
90.3 |
1500 |
| 300 |
854/0.67 |
3.0 |
7/0.50 |
63.2 |
40/0.20 |
0.8 |
9.4 |
98.4 |
1840 |
| Type 209.6 |
| 16 |
126/0.40 |
5.0 |
7/0.25 |
17.2 |
24/0.20 |
0.8 |
6.4 |
57.3 |
435 |
| 25 |
209/0.40 |
5.0 |
7/0.25 |
18.6 |
24/0.20 |
0.8 |
6.7 |
61.2 |
512 |
| 35 |
285/0.40 |
5.0 |
7/0.25 |
18.6 |
24/0.20 |
0.8 |
7.0 |
64.6 |
582 |
| 50 |
380/0.40 |
5.0 |
7/0.25 |
21.3 |
40/0.20 |
0.8 |
7.3 |
68.5 |
668 |
| 70 |
203/0.67 |
5.0 |
7/0.25 |
23.4 |
40/0.20 |
0.8 |
7.7 |
73.7 |
799 |
| 95 |
259/0.67 |
5.0 |
7/0.30 |
29.2 |
40/0.20 |
0.8 |
8.1 |
77.8 |
935 |
| 120 |
336/0.67 |
5.0 |
7/0.30 |
31.7 |
40/0.20 |
0.8 |
8.5 |
83.1 |
1090 |
| 150 |
427/0.67 |
5.0 |
7/0.40 |
45.7 |
40/0.20 |
0.8 |
8.9 |
89.1 |
1310 |
| 185 |
518/0.67 |
5.0 |
7/0.40 |
48.4 |
40/0.20 |
0.8 |
9.3 |
94.5 |
1480 |
| 240 |
672/0.67 |
5.0 |
7/0.40 |
52.8 |
40/0.20 |
0.8 |
9.9 |
101.4 |
1750 |
| 300 |
854/0.67 |
5.0 |
7/0.50 |
71.5 |
40/0.20 |
0.8 |
10.4 |
109.3 |
2120 |
| Type 209.11 |
| 25 |
209/0.40 |
7.6 |
7/0.25 |
23.7 |
24/0.20 |
0.8 |
8.1 |
75.6 |
750 |
| 35 |
285/0.40 |
7.6 |
7/0.30 |
30.2 |
24/0.20 |
0.8 |
8.4 |
79.7 |
858 |
| 50 |
380/0.40 |
7.6 |
7/0.30 |
31.7 |
40/0.20 |
0.8 |
8.7 |
83.6 |
960 |
| 70 |
203/0.67 |
7.6 |
7/0.30 |
34.1 |
40/0.20 |
0.8 |
9.1 |
88.8 |
1093 |
| 95 |
259/0.67 |
7.6 |
7/0.40 |
47.5 |
40/0.20 |
0.8 |
9.6 |
93.7 |
1267 |
| 120 |
336/0.67 |
7.6 |
7/0.40 |
51.0 |
40/0.20 |
0.8 |
9.9 |
98.8 |
1436 |
| 150 |
427/0.67 |
7.6 |
7/0.40 |
53.7 |
40/0.20 |
0.8 |
10.3 |
103.5 |
1614 |
| 185 |
518/0.67 |
7.6 |
7/0.40 |
57.2 |
40/0.20 |
0.8 |
10.7 |
108.8 |
1830 |
