Type 241 1.1 to 11KV
Applications
These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.
Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

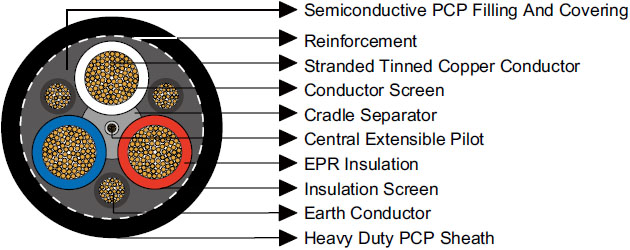

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Cradle Separator |
Semiconductive PCP. |
| Overall Core Screen |
Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor |
Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement |
Open-weave braid reinforcement. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 241.1 |
| 6 |
84/0.30 |
1.5 |
18/0.30 |
1.0 |
24/0.20 |
0.8 |
3.8 |
28.5 |
106 |
| 10 |
77/0.40 |
1.5 |
27/0.30 |
1.0 |
24/0.20 |
0.8 |
3.8 |
31.1 |
127 |
| 16 |
126/0.40 |
1.6 |
42/0.30 |
1.0 |
24/0.20 |
0.8 |
3.9 |
34.1 |
164 |
| 25 |
209/0.40 |
1.6 |
66/0.30 |
1.0 |
24/0.20 |
0.8 |
4.2 |
37.9 |
208 |
| 35 |
285/0.40 |
1.6 |
90/0.30 |
1.0 |
24/0.20 |
0.8 |
4.4 |
41.2 |
254 |
| 50 |
380/0.40 |
1.7 |
120/0.30 |
1.0 |
40/0.20 |
0.8 |
4.9 |
45.9 |
328 |
| 70 |
203/0.67 |
1.8 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.3 |
52.2 |
480 |
| 95 |
259/0.67 |
2.0 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.8 |
56.7 |
600 |
| 120 |
336/0.67 |
2.1 |
42/0.67 |
1.2 |
40/0.20 |
0.8 |
6.3 |
62.7 |
710 |
| 150 |
427/0.67 |
2.3 |
54/0.67 |
1.2 |
40/0.20 |
0.8 |
6.7 |
68.3 |
865 |
| 185 |
518/0.67 |
2.5 |
63/0.67 |
1.4 |
40/0.20 |
0.8 |
7.3 |
74.9 |
1030 |
| 240 |
672/0.67 |
2.8 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
8.0 |
83.3 |
1300 |
| 300 |
854/0.67 |
3.0 |
98/0.67 |
1.4 |
40/0.20 |
0.8 |
8.7 |
91.2 |
1600 |
| Type 241.3 |
| 16 |
126/0.40 |
3.0 |
42/0.30 |
1.0 |
24/0.20 |
0.8 |
5.0 |
43.8 |
249 |
| 25 |
209/0.40 |
3.0 |
66/0.30 |
1.0 |
24/0.20 |
0.8 |
5.3 |
47.7 |
315 |
| 35 |
285/0.40 |
3.0 |
90/0.30 |
1.0 |
24/0.20 |
0.8 |
5.6 |
51.1 |
376 |
| 50 |
380/0.40 |
3.0 |
120/0.30 |
1.2 |
40/0.20 |
0.8 |
6.0 |
55.2 |
450 |
| 70 |
203/0.67 |
3.0 |
39/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
60.3 |
576 |
| 95 |
259/0.67 |
3.0 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.8 |
63.8 |
675 |
| 120 |
336/0.67 |
3.0 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
7.2 |
69.1 |
810 |
| 150 |
427/0.67 |
3.0 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
7.6 |
73.8 |
952 |
| 185 |
518/0.67 |
3.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
8.0 |
79.2 |
1130 |
| 240 |
672/0.67 |
3.0 |
112/0.67 |
1.4 |
40/0.20 |
0.8 |
8.6 |
86.0 |
1380 |
| 300 |
854/0.67 |
3.0 |
144/0.67 |
1.4 |
40/0.20 |
0.8 |
9.1 |
92.6 |
1660 |
| Type 241.6 |
| 16 |
126/0.40 |
5.0 |
42/0.30 |
1.4 |
24/0.20 |
0.8 |
6.1 |
54.9 |
365 |
| 25 |
209/0.40 |
5.0 |
66/0.30 |
1.4 |
24/0.20 |
0.8 |
6.4 |
58.8 |
440 |
| 35 |
285/0.40 |
5.0 |
90/0.30 |
1.4 |
24/0.20 |
0.8 |
6.7 |
62.2 |
509 |
| 50 |
380/0.40 |
5.0 |
120/0.30 |
1.4 |
40/0.20 |
0.8 |
7.1 |
66.2 |
592 |
| 70 |
203/0.67 |
5.0 |
39/0.67 |
1.4 |
40/0.20 |
0.8 |
7.4 |
71.2 |
727 |
| 95 |
259/0.67 |
5.0 |
48/0.67 |
1.4 |
40/0.20 |
0.8 |
7.9 |
74.8 |
835 |
| 120 |
336/0.67 |
5.0 |
60/0.67 |
1.4 |
40/0.20 |
0.8 |
8.3 |
80.2 |
990 |
| 150 |
427/0.67 |
5.0 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
8.6 |
84.6 |
1140 |
| 185 |
518/0.67 |
5.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
9.0 |
90.0 |
1311 |
| 240 |
672/0.67 |
5.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
9.6 |
96.8 |
1576 |
| 300 |
854/0.67 |
5.0 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
10.2 |
103.6 |
1900 |
| Type 241.11 |
| 25 |
209/0.40 |
7.6 |
66/0.30 |
1.8 |
24/0.20 |
0.8 |
7.8 |
73.2 |
645 |
| 35 |
285/0.40 |
7.6 |
90/0.30 |
1.8 |
24/0.20 |
0.8 |
8.1 |
76.6 |
724 |
| 50 |
380/0.40 |
7.6 |
120/0.30 |
1.8 |
40/0.20 |
0.8 |
8.5 |
80.6 |
825 |
| 70 |
203/0.67 |
7.6 |
39/0.67 |
1.8 |
40/0.20 |
0.8 |
8.9 |
85.7 |
975 |
| 95 |
259/0.67 |
7.6 |
48/0.67 |
1.8 |
40/0.20 |
0.8 |
9.3 |
89.1 |
1088 |
| 120 |
336/0.67 |
7.6 |
60/0.67 |
1.8 |
40/0.20 |
0.8 |
9.7 |
94.4 |
1258 |
| 150 |
427/0.67 |
7.6 |
77/0.67 |
1.8 |
40/0.20 |
0.8 |
10.0 |
98.9 |
1423 |
| 185 |
518/0.67 |
7.6 |
91/0.67 |
1.8 |
40/0.20 |
0.8 |
10.4 |
104.2 |
1610 |
