Type 241 Superflex 1.1 to 6.6KV
Applications
These cables are similar to Type 241 cables, except more flexible and have a smaller ‘natural’ bending radius, suitable for use as monorail cable where cable loops will be narrower, thus allowing more space for other equipment and reducing opportunities for getting snagged.
Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

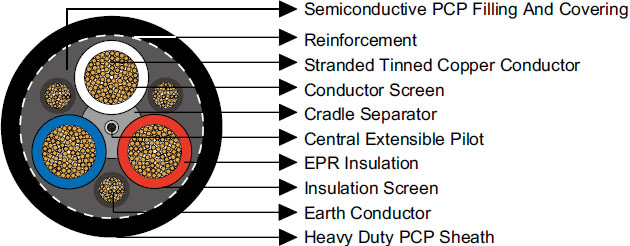

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Cradle Separator |
Semiconductive PCP. |
| Overall Core Screen |
Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor |
Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement |
Open-weave braid reinforcement. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 241.1 |
| 70 |
361/0.50 |
1.8 |
110/0.40 |
1.0 |
40/0.20 |
0.8 |
5.3 |
53.0 |
485 |
| 95 |
475/0.50 |
2.0 |
85/0.40 |
1.0 |
40/0.20 |
0.8 |
5.8 |
58.8 |
595 |
| 120 |
608/0.50 |
2.1 |
110/0.40 |
1.2 |
40/0.20 |
0.8 |
6.3 |
62.5 |
715 |
| 150 |
740/0.50 |
2.3 |
135/0.40 |
1.2 |
40/0.20 |
0.8 |
6.7 |
67.0 |
840 |
| 185 |
925/0.50 |
2.5 |
165/0.40 |
1.4 |
40/0.20 |
0.8 |
7.3 |
75.1 |
1040 |
| 240 |
1221/0.50 |
2.8 |
216/0.40 |
1.4 |
40/0.20 |
0.8 |
8.0 |
85.7 |
1340 |
| Type 241.3 |
| 70 |
361/0.50 |
3.0 |
110/0.40 |
1.2 |
40/0.20 |
0.8 |
6.4 |
61.2 |
590 |
| 95 |
475/0.50 |
3.0 |
135/0.40 |
1.2 |
40/0.20 |
0.8 |
6.8 |
65.9 |
710 |
| 120 |
608/0.50 |
3.0 |
165/0.40 |
1.2 |
40/0.20 |
0.8 |
7.2 |
68.9 |
820 |
| 150 |
740/0.50 |
3.0 |
216/0.40 |
1.2 |
40/0.20 |
0.8 |
7.6 |
72.5 |
940 |
| 185 |
925/0.50 |
3.0 |
252/0.40 |
1.4 |
40/0.20 |
0.8 |
8.0 |
79.4 |
1130 |
| 240 |
1221/0.50 |
3.0 |
324/0.40 |
1.4 |
40/0.20 |
0.8 |
8.6 |
88.3 |
1420 |
| Type 241.6 |
| 70 |
361/0.50 |
5.0 |
110/0.40 |
1.4 |
40/0.20 |
0.8 |
7.4 |
72.1 |
750 |
| 95 |
475/0.50 |
5.0 |
135/0.40 |
1.4 |
40/0.20 |
0.8 |
7.9 |
77.0 |
885 |
| 120 |
608/0.50 |
5.0 |
165/0.40 |
1.4 |
40/0.20 |
0.8 |
8.3 |
79.9 |
1000 |
| 150 |
740/0.50 |
5.0 |
216/0.40 |
1.4 |
40/0.20 |
0.8 |
8.6 |
83.3 |
1130 |
| 185 |
925/0.50 |
5.0 |
252/0.40 |
1.4 |
40/0.20 |
0.8 |
9.0 |
90.2 |
1330 |
| 240 |
1221/0.50 |
5.0 |
324/0.40 |
1.4 |
40/0.20 |
0.8 |
9.6 |
99.1 |
1640 |
