Type 260 1.1 to 11KV
Applications
These armoured cables are mainly used as feeder cables for power supply where mechanical protection and strength is required, and also can be the feeder to machinery and i.e. transportable mining substation (sand mining).
Standards
- AS/NZS 1802:2003
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

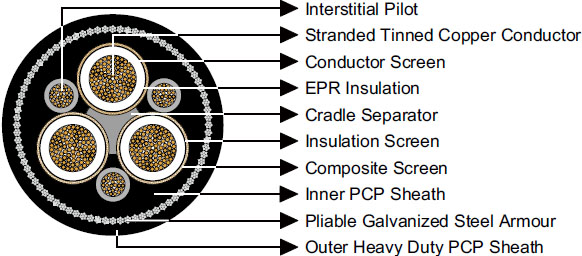

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Composite Screen (earth conductor) |
Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator |
Semiconductive PCP. |
| 3×Interstitial Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Inner Sheath |
PCP sheath. CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Pliable Armour Size |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
Inner |
Outer |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 260.1 |
| 6 |
84/0.30 |
1.5 |
7/0.25 |
7.2 |
18/0.30 |
1.0 |
7/0.45 |
2.0 |
3.8 |
36.9 |
230 |
| 10 |
77/0.40 |
1.5 |
7/0.25 |
8.6 |
27/0.30 |
1.0 |
7/0.45 |
2.0 |
3.8 |
39.5 |
265 |
| 16 |
126/0.40 |
1.6 |
7/0.25 |
9.6 |
42/0.30 |
1.0 |
7/0.90 |
2.5 |
4.0 |
46.5 |
410 |
| 25 |
209/0.40 |
1.6 |
7/0.25 |
11.3 |
66/0.30 |
1.2 |
7/0.90 |
2.5 |
4.3 |
50.4 |
495 |
| 35 |
285/0.40 |
1.6 |
7/0.25 |
12.4 |
90/0.30 |
1.2 |
7/0.90 |
2.5 |
4.6 |
53.8 |
576 |
| 50 |
380/0.40 |
1.7 |
7/0.25 |
14.1 |
120/0.30 |
1.2 |
7/0.90 |
2.5 |
5.0 |
58.4 |
679 |
| 70 |
203/0.67 |
1.8 |
7/0.25 |
16.5 |
39/0.67 |
1.2 |
7/0.90 |
2.5 |
5.4 |
64.6 |
837 |
| 95 |
259/0.67 |
2.0 |
7/0.25 |
18.2 |
39/0.67 |
1.2 |
7/0.90 |
3.5 |
6.0 |
71.4 |
1003 |
| 120 |
336/0.67 |
2.1 |
7/0.25 |
20.3 |
42/0.67 |
1.4 |
7/0.90 |
3.5 |
6.4 |
77.2 |
1176 |
| 150 |
427/0.67 |
2.3 |
7/0.25 |
22.3 |
54/0.67 |
1.4 |
7/0.90 |
3.5 |
6.9 |
83.0 |
1372 |
| 185 |
518/0.67 |
2.5 |
7/0.30 |
30.2 |
63/0.67 |
1.4 |
7/0.90 |
3.5 |
7.4 |
90.0 |
1610 |
| 240 |
672/0.67 |
2.8 |
7/0.30 |
33.6 |
77/0.67 |
1.6 |
7/1.25 |
4.5 |
8.2 |
103.0 |
2150 |
| 300 |
854/0.67 |
3.0 |
7/0.40 |
50.1 |
98/0.67 |
1.6 |
7/1.25 |
4.5 |
8.8 |
112.1 |
2590 |
| Type 260.3 |
| 16 |
126/0.40 |
3.0 |
7/0.25 |
13.1 |
42/0.30 |
1.4 |
7/0.90 |
2.5 |
5.3 |
56.9 |
566 |
| 25 |
209/0.40 |
3.0 |
7/0.25 |
14.8 |
66/0.30 |
1.4 |
7/0.90 |
2.5 |
5.6 |
60.8 |
661 |
| 35 |
285/0.40 |
3.0 |
7/0.25 |
15.8 |
90/0.30 |
1.4 |
7/0.90 |
3.5 |
5.9 |
66.3 |
779 |
| 50 |
380/0.40 |
3.0 |
7/0.25 |
17.2 |
120/0.30 |
1.4 |
7/0.90 |
3.5 |
6.3 |
70.4 |
886 |
| 70 |
203/0.67 |
3.0 |
7/0.25 |
18.6 |
39/0.67 |
1.4 |
7/0.90 |
3.5 |
6.6 |
75.3 |
1044 |
| 95 |
259/0.67 |
3.0 |
7/0.25 |
20.3 |
39/0.67 |
1.4 |
7/0.90 |
3.5 |
7.1 |
78.9 |
1156 |
| 120 |
336/0.67 |
3.0 |
7/0.30 |
27.2 |
42/0.67 |
1.6 |
7/0.90 |
3.5 |
7.4 |
84.7 |
1350 |
| 150 |
427/0.67 |
3.0 |
7/0.40 |
39.6 |
54/0.67 |
1.6 |
7/1.25 |
4.5 |
7.8 |
95.0 |
1779 |
| 185 |
518/0.67 |
3.0 |
7/0.40 |
42.2 |
63/0.67 |
1.8 |
7/1.25 |
4.5 |
8.2 |
100.4 |
1990 |
| 240 |
672/0.67 |
3.0 |
7/0.40 |
46.6 |
77/0.67 |
1.8 |
7/1.25 |
4.5 |
8.8 |
107.3 |
2300 |
| 300 |
854/0.67 |
3.0 |
7/0.50 |
63.2 |
98/0.67 |
1.8 |
7/1.25 |
4.5 |
9.4 |
115.4 |
2710 |
| Type 260.6 |
| 16 |
126/0.40 |
5.0 |
7/0.25 |
17.2 |
42/0.30 |
1.4 |
7/0.90 |
3.5 |
6.4 |
70.1 |
796 |
| 25 |
209/0.40 |
5.0 |
7/0.25 |
18.6 |
66/0.30 |
1.4 |
7/0.90 |
3.5 |
6.7 |
74.0 |
897 |
| 35 |
285/0.40 |
5.0 |
7/0.25 |
18.6 |
90/0.30 |
1.6 |
7/0.90 |
3.5 |
7.0 |
77.4 |
990 |
| 50 |
380/0.40 |
5.0 |
7/0.25 |
21.3 |
120/0.30 |
1.6 |
7/0.90 |
3.5 |
7.3 |
81.2 |
1102 |
| 70 |
203/0.67 |
5.0 |
7/0.25 |
23.4 |
39/0.67 |
1.6 |
7/1.25 |
4.5 |
7.7 |
90.7 |
1456 |
| 95 |
259/0.67 |
5.0 |
7/0.30 |
29.2 |
39/0.67 |
1.6 |
7/1.25 |
4.5 |
8.1 |
94.8 |
1610 |
| 120 |
336/0.67 |
5.0 |
7/0.30 |
31.7 |
42/0.67 |
1.8 |
7/1.25 |
4.5 |
8.5 |
100.2 |
1807 |
| 150 |
427/0.67 |
5.0 |
7/0.40 |
45.7 |
54/0.67 |
1.8 |
7/1.25 |
4.5 |
8.9 |
106.2 |
2080 |
| 185 |
518/0.67 |
5.0 |
7/0.40 |
48.4 |
63/0.67 |
1.8 |
7/1.25 |
4.5 |
9.3 |
111.5 |
2300 |
| 240 |
672/0.67 |
5.0 |
7/0.40 |
52.8 |
77/0.67 |
1.8 |
7/1.25 |
4.5 |
9.9 |
118.4 |
2630 |
| 300 |
854/0.67 |
5.0 |
7/0.50 |
71.5 |
98/0.67 |
1.8 |
7/1.25 |
4.5 |
10.4 |
126.3 |
3060 |
| Type 260.11 |
| 25 |
209/0.40 |
7.6 |
7/0.25 |
23.7 |
66/0.30 |
2.0 |
7/1.25 |
4.5 |
8.1 |
92.7 |
1380 |
| 35 |
285/0.40 |
7.6 |
7/0.30 |
30.2 |
90/0.30 |
2.0 |
7/1.25 |
4.5 |
8.4 |
96.7 |
1528 |
| 50 |
380/0.40 |
7.6 |
7/0.30 |
31.7 |
120/0.30 |
2.0 |
7/1.25 |
4.5 |
8.7 |
100.6 |
1664 |
| 70 |
203/0.67 |
7.6 |
7/0.30 |
34.1 |
39/0.67 |
2.0 |
7/1.25 |
4.5 |
9.1 |
105.8 |
1867 |
| 95 |
259/0.67 |
7.6 |
7/0.40 |
47.5 |
39/0.67 |
2.0 |
7/1.25 |
4.5 |
9.6 |
110.7 |
2080 |
| 120 |
336/0.67 |
7.6 |
7/0.40 |
51.0 |
42/0.67 |
2.2 |
7/1.25 |
4.5 |
9.9 |
115.8 |
2290 |
| 150 |
427/0.67 |
7.6 |
7/0.40 |
53.7 |
54/0.67 |
2.2 |
7/1.25 |
4.5 |
10.3 |
120.5 |
2510 |
| 185 |
518/0.67 |
7.6 |
7/0.40 |
57.2 |
63/0.67 |
2.2 |
7/1.25 |
4.5 |
10.7 |
125.9 |
2750 |
