Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened
Applications
These individually copper screened cables are used for wiring of machines or between machines and equipment where a rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and control cores or twisted pair and screened cores.
Standards
- AS/NZS 1972:2006
- AS/NZS 1125
- AS/NZS 3808
|
![Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened](images/AS_NZS-18.jpg) |

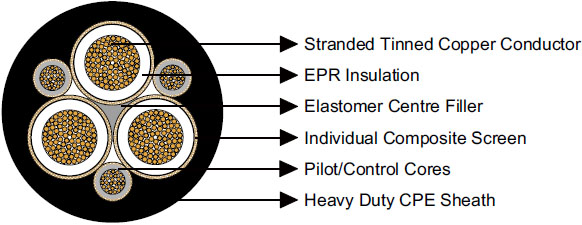

Construction
Conductors |
Stranded tinned annealed copper conductor. |
Insulation |
EPR. |
Filling |
Elastomer centre filler. |
Pilot/Control Cores |
EPR covered and composite screened flexible stranded tinned copper conductor. |
Individual Composite Screen (earth conductor) |
Tinned annealed copper braiding interwove with polyester yarn. |
Sheath |
Heavy duty CPE sheath. |
Dimensions and Weight
Number of Core |
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
Strand Size |
Area of Screen |
Number of Pilots |
Strand Size |
Thickness of Covering |
|
mm^2 |
No/mm |
mm |
mm |
mm^2 |
|
No/mm |
mm |
mm |
mm |
kg/100m |
Type 2S 1.1/1kV Individually Screened |
3 |
10 |
77/0.40 |
1.2 |
0.2 |
7.9 |
3 |
– |
– |
1.8 |
22.1 |
69 |
4 |
10 |
77/0.40 |
1.2 |
0.2 |
7.9 |
4 |
– |
– |
1.8 |
23.0 |
93 |
2 |
16 |
126/0.40 |
1.2 |
0.2 |
9.0 |
2 |
– |
– |
1.8 |
22.0 |
81 |
3 |
16 |
126/0.40 |
1.2 |
0.2 |
9.0 |
3 |
– |
– |
1.8 |
23.4 |
100 |
4 |
16 |
126/0.40 |
1.2 |
0.2 |
9.0 |
4 |
– |
– |
1.8 |
26.8 |
135 |
3 |
10 |
77/0.40 |
1.2 |
0.2 |
7.9 |
3 |
30/0.20 |
1.0 |
1.8 |
22.5 |
87 |
2 |
16 |
126/0.40 |
1.2 |
0.2 |
9.0 |
2 |
30/0.20 |
1.0 |
1.8 |
22.7 |
88 |
3 |
16 |
126/0.40 |
1.2 |
0.2 |
9.0 |
3 |
30/0.20 |
1.0 |
1.8 |
27.7 |
130 |
3 |
25 |
209/0.40 |
1.4 |
0.2 |
11.3 |
3 |
30/0.20 |
1.0 |
1.8 |
29.2 |
165 |
3 |
35 |
285/0.40 |
1.4 |
0.2 |
12.4 |
3 |
30/0.20 |
1.0 |
1.8 |
31.6 |
200 |
3 |
50 |
380/0.40 |
1.6 |
0.25 |
17.5 |
3 |
30/0.20 |
1.0 |
1.9 |
36.1 |
260 |
Type 2S 1.1/1kV Individually and Collectively Screened |
30 |
1.5 |
30/0.25 |
1.0 |
0.3 |
14.0 |
– |
– |
– |
1.9 |
32.6 |
170 |
Type 2S 3.3/3.3Kv Individually Screened |
3 |
10 |
77/0.40 |
3.0 |
0.2 |
11.3 |
3 |
30/0.25 |
1.0 |
1.8 |
28.9 |
130 |
3 |
16 |
126/0.40 |
3.0 |
0.2 |
12.4 |
3 |
30/0.25 |
1.0 |
1.8 |
31.3 |
160 |
3 |
25 |
209/0.40 |
3.0 |
0.2 |
13.6 |
3 |
30/0.25 |
1.0 |
1.9 |
34.8 |
210 |
3 |
35 |
285/0.40 |
3.0 |
0.2 |
15.3 |
3 |
30/0.25 |
1.0 |
2.0 |
37.8 |
250 |
3 |
50 |
380/0.40 |
3.0 |
0.2 |
17.0 |
3 |
30/0.25 |
1.0 |
2.1 |
41.3 |
305 |
3 |
70 |
203/0.67 |
3.0 |
0.3 |
30.5 |
3 |
30/0.25 |
1.0 |
2.2 |
46.8 |
415 |
3 |
95 |
259/0.67 |
3.0 |
0.3 |
30.5 |
3 |
30/0.25 |
1.0 |
2.3 |
49.6 |
490 |
3 |
120 |
336/0.67 |
3.0 |
0.4 |
47.5 |
3 |
30/0.25 |
1.0 |
2.5 |
55.0 |
620 |
