Type 409 1.1 to 22KV
Applications
Type 409 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment, while larger ones are used for power supply to draglines, shovels and drills.
Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

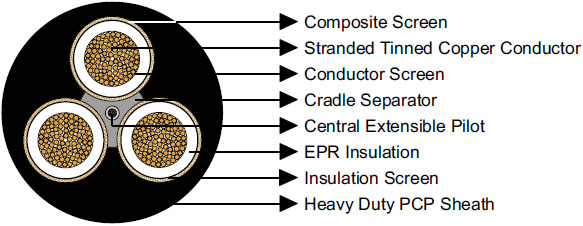

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Composite Screen (earth conductor) |
Tinned annealed copper braiding interwove with polyester yarn. |
| Cradle Separator |
Semiconductive PCP. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 409.1 Class2 |
| 6 |
84/0.30 |
1.5 |
7/0.25 |
7.2 |
24/0.20 |
0.8 |
3.8 |
30.0 |
129 |
| 10 |
77/0.40 |
1.5 |
7/0.25 |
8.6 |
24/0.20 |
0.8 |
3.8 |
32.6 |
157 |
| 16 |
126/0.40 |
1.6 |
7/0.25 |
9.6 |
24/0.20 |
0.8 |
4.0 |
35.8 |
197 |
| 25 |
209/0.40 |
1.6 |
7/0.25 |
11.3 |
24/0.20 |
0.8 |
4.3 |
39.7 |
255 |
| 35 |
285/0.40 |
1.6 |
7/0.25 |
12.4 |
24/0.20 |
0.8 |
4.6 |
43.1 |
312 |
| 50 |
380/0.40 |
1.7 |
7/0.25 |
14.1 |
40/0.20 |
0.8 |
5.0 |
47.7 |
386 |
| 70 |
203/0.67 |
1.8 |
7/0.25 |
16.5 |
40/0.20 |
0.8 |
5.4 |
53.9 |
503 |
| 95 |
259/0.67 |
2.0 |
7/0.30 |
21.8 |
40/0.20 |
0.8 |
6.0 |
59.3 |
622 |
| 120 |
336/0.67 |
2.1 |
7/0.30 |
24.7 |
40/0.20 |
0.8 |
6.4 |
65.1 |
760 |
| 150 |
427/0.67 |
2.3 |
7/0.40 |
36.1 |
40/0.20 |
0.8 |
6.9 |
72.1 |
960 |
| 185 |
518/0.67 |
2.5 |
7/0.40 |
40.5 |
40/0.20 |
0.8 |
7.4 |
78.6 |
1160 |
| 240 |
672/0.67 |
2.8 |
7/0.50 |
57.7 |
40/0.20 |
0.8 |
8.2 |
88.6 |
1490 |
| 300 |
854/0.67 |
3.0 |
7/0.50 |
63.2 |
40/0.20 |
0.8 |
8.8 |
96.3 |
1800 |
| Type 409.3 Class2 |
| 16 |
126/0.40 |
3.0 |
7/0.25 |
13.1 |
24/0.20 |
0.8 |
5.3 |
46.2 |
301 |
| 25 |
209/0.40 |
3.0 |
7/0.25 |
14.8 |
24/0.20 |
0.8 |
5.6 |
50.1 |
371 |
| 35 |
285/0.40 |
3.0 |
7/0.25 |
15.8 |
24/0.20 |
0.8 |
5.9 |
53.5 |
430 |
| 50 |
380/0.40 |
3.0 |
7/0.25 |
17.2 |
40/0.20 |
0.8 |
6.3 |
57.6 |
511 |
| 70 |
203/0.67 |
3.0 |
7/0.25 |
18.6 |
40/0.20 |
0.8 |
6.6 |
62.5 |
624 |
| 95 |
259/0.67 |
3.0 |
7/0.25 |
20.3 |
40/0.20 |
0.8 |
7.1 |
66.2 |
724 |
| 120 |
336/0.67 |
3.0 |
7/0.30 |
27.2 |
40/0.20 |
0.8 |
7.4 |
72.0 |
880 |
| 150 |
427/0.67 |
3.0 |
7/0.40 |
39.6 |
40/0.20 |
0.8 |
7.8 |
78.0 |
1079 |
| 185 |
518/0.67 |
3.0 |
7/0.40 |
42.2 |
40/0.20 |
0.8 |
8.2 |
83.4 |
1251 |
| 240 |
672/0.67 |
3.0 |
7/0.40 |
46.6 |
40/0.20 |
0.8 |
8.8 |
90.3 |
1502 |
| 300 |
854/0.67 |
3.0 |
7/0.50 |
63.2 |
40/0.20 |
0.8 |
9.4 |
98.4 |
1840 |
| Type 409.6 Class2 |
| 16 |
126/0.40 |
5.0 |
7/0.25 |
17.2 |
24/0.20 |
0.8 |
6.4 |
57.3 |
440 |
| 25 |
209/0.40 |
5.0 |
7/0.25 |
18.6 |
24/0.20 |
0.8 |
6.7 |
61.2 |
516 |
| 35 |
285/0.40 |
5.0 |
7/0.25 |
18.6 |
24/0.20 |
0.8 |
7.0 |
64.6 |
584 |
| 50 |
380/0.40 |
5.0 |
7/0.25 |
21.3 |
40/0.20 |
0.8 |
7.3 |
68.5 |
669 |
| 70 |
203/0.67 |
5.0 |
7/0.25 |
23.4 |
40/0.20 |
0.8 |
7.7 |
73.7 |
804 |
| 95 |
259/0.67 |
5.0 |
7/0.30 |
29.2 |
40/0.20 |
0.8 |
8.1 |
77.8 |
934 |
| 120 |
336/0.67 |
5.0 |
7/0.30 |
31.7 |
40/0.20 |
0.8 |
8.5 |
83.1 |
1090 |
| 150 |
427/0.67 |
5.0 |
7/0.40 |
45.7 |
40/0.20 |
0.8 |
8.9 |
89.1 |
1310 |
| 185 |
518/0.67 |
5.0 |
7/0.40 |
48.4 |
40/0.20 |
0.8 |
9.3 |
94.5 |
1479 |
| 240 |
672/0.67 |
5.0 |
7/0.40 |
52.8 |
40/0.20 |
0.8 |
9.9 |
101.4 |
1749 |
| 300 |
854/0.67 |
5.0 |
7/0.50 |
71.5 |
40/0.20 |
0.8 |
10.4 |
109.3 |
2120 |
| Type 409.11 Class2 |
| 25 |
209/0.40 |
7.6 |
7/0.25 |
23.7 |
24/0.20 |
0.8 |
8.1 |
75.6 |
750 |
| 35 |
285/0.40 |
7.6 |
7/0.30 |
30.2 |
24/0.20 |
0.8 |
8.4 |
79.7 |
859 |
| 50 |
380/0.40 |
7.6 |
7/0.30 |
31.7 |
40/0.20 |
0.8 |
8.7 |
83.6 |
954 |
| 70 |
203/0.67 |
7.6 |
7/0.30 |
34.1 |
40/0.20 |
0.8 |
9.1 |
88.8 |
1105 |
| 95 |
259/0.67 |
7.6 |
7/0.40 |
47.5 |
40/0.20 |
0.8 |
9.6 |
93.7 |
1290 |
| 120 |
336/0.67 |
7.6 |
7/0.40 |
51.0 |
40/0.20 |
0.8 |
9.9 |
98.8 |
1460 |
| 150 |
427/0.67 |
7.6 |
7/0.40 |
53.7 |
40/0.20 |
0.8 |
10.3 |
103.5 |
1636 |
| 185 |
518/0.67 |
7.6 |
7/0.40 |
57.2 |
40/0.20 |
0.8 |
10.7 |
108.8 |
1830 |
| Type 409.22 Class2 |
| 35 |
285/0.40 |
10.5 |
7/0.40 |
55.4 |
24/0.20 |
0.8 |
10.0 |
105.0 |
1405 |
| 50 |
380/0.40 |
10.5 |
7/0.40 |
58.1 |
40/0.20 |
0.8 |
10.3 |
108.9 |
1525 |
| 70 |
203/0.67 |
10.5 |
7/0.40 |
60.7 |
40/0.20 |
0.8 |
10.7 |
114.0 |
1710 |
