Type 412 1.1/1.1KV
Applications
These cables with green/yellow earths and pliable armour for mechanical protection may be used in applications where damage is likely and armour can reduce cases of costly downtime, suitable installed as feeder cables in sand mining operations.
Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

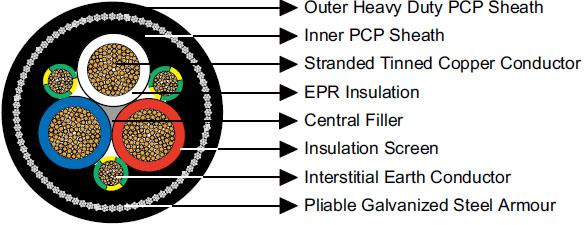

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Filler |
Elastomer centre filler. |
| 3×Interstitial Earth Conductor |
EPR covered flexible stranded tinned copper conductor. |
| Inner Sheath |
PCP sheath. CPE/CSP sheath can be offered upon request. |
| Pliable Armour |
Galvanized low carbon (mild) steel strands. |
| Outer Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor |
Pliable Armour Size |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Thickness of Covering |
Inner |
Outer |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 412.1 Class2 |
| 16 |
126/0.40 |
1.6 |
81/0.30 |
0.6 |
7/0.90 |
2.5 |
3.8 |
38.3 |
265 |
| 25 |
209/0.40 |
1.6 |
81/0.30 |
0.6 |
7/0.90 |
2.5 |
3.8 |
38.4 |
294 |
| 35 |
285/0.40 |
1.6 |
81/0.30 |
0.6 |
7/0.90 |
2.5 |
4.0 |
44.6 |
402 |
| 50 |
380/0.40 |
1.7 |
120/0.30 |
0.8 |
7/0.90 |
2.5 |
4.4 |
49.2 |
500 |
| 70 |
203/0.67 |
1.8 |
39/0.67 |
0.8 |
7/0.90 |
2.5 |
4.8 |
55.4 |
655 |
| 95 |
259/0.67 |
2.0 |
48/0.67 |
0.8 |
7/0.90 |
2.5 |
5.4 |
60.1 |
775 |
| 120 |
336/0.67 |
2.1 |
60/0.67 |
1.0 |
7/0.90 |
3.5 |
5.8 |
68.1 |
990 |
| 150 |
427/0.67 |
2.3 |
77/0.67 |
1.0 |
7/0.90 |
3.5 |
6.3 |
73.8 |
1186 |
| 185 |
518/0.67 |
2.5 |
91/0.67 |
1.0 |
7/0.90 |
3.5 |
6.8 |
80.2 |
1360 |
| 240 |
672/0.67 |
2.8 |
119/0.67 |
1.2 |
7/0.90 |
3.5 |
7.5 |
88.7 |
1670 |
| 300 |
854/0.67 |
3.0 |
156/0.67 |
1.2 |
7/1.25 |
4.5 |
8.2 |
100.9 |
2200 |
