Type 441 (class 1) 3.3 to 22KV
Applications
Type 441 Class 1 series cable has lower insulation and sheath radials than Class 2 cables, designed for many uses, suitable for trailing and also suitable for reeling applications, have one central pilot and a semiconductive cradle supporting and protecting the power cores, which makes these cables less likely to be damaged from crushing and squashing.
Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

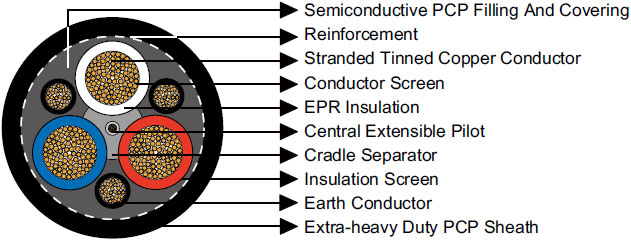

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Cradle Separator |
Semiconductive PCP. |
| Overall Core Screen |
Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor |
Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement |
Open-weave braid reinforcement. |
| Sheath |
Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor |
Pilot Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Thickness of Covering |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 441.3 Class1 |
| 16 |
126/0.40 |
2.2 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
4.6 |
43.0 |
241 |
| 25 |
209/0.40 |
2.2 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
4.9 |
46.9 |
304 |
| 35 |
285/0.40 |
2.2 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.2 |
50.3 |
359 |
| 50 |
380/0.40 |
2.4 |
120/0.30 |
1.0 |
40/0.20 |
0.8 |
5.7 |
55.5 |
446 |
| 70 |
203/0.67 |
2.4 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
6.0 |
60.4 |
571 |
| 95 |
259/0.67 |
2.4 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
63.6 |
659 |
| 120 |
336/0.67 |
2.4 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
6.5 |
68.6 |
794 |
| 150 |
427/0.67 |
2.4 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
6.6 |
72.7 |
931 |
| 185 |
518/0.67 |
2.4 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
6.7 |
77.4 |
1080 |
| 240 |
672/0.67 |
2.4 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
6.9 |
83.4 |
1310 |
| 300 |
854/0.67 |
2.4 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
7.0 |
89.2 |
1570 |
| Type 441.6 Class1 |
| 16 |
126/0.40 |
3.0 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.0 |
47.4 |
276 |
| 25 |
209/0.40 |
3.0 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.3 |
51.2 |
350 |
| 35 |
285/0.40 |
3.0 |
81/0.30 |
1.0 |
24/0.20 |
0.8 |
5.6 |
54.6 |
405 |
| 50 |
380/0.40 |
3.0 |
120/0.30 |
1.2 |
40/0.20 |
0.8 |
6.0 |
58.7 |
485 |
| 70 |
203/0.67 |
3.0 |
39/0.67 |
1.2 |
40/0.20 |
0.8 |
6.3 |
63.7 |
634 |
| 95 |
259/0.67 |
3.0 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
66.5 |
700 |
| 120 |
336/0.67 |
3.0 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
6.6 |
71.4 |
835 |
| 150 |
427/0.67 |
3.0 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
6.7 |
75.5 |
975 |
| 185 |
518/0.67 |
3.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
6.8 |
80.3 |
1130 |
| 240 |
672/0.67 |
3.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
7.0 |
86.2 |
1360 |
| 300 |
854/0.67 |
3.0 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
7.1 |
92.0 |
1650 |
| Type 441.11 Class1 |
| 25 |
209/0.40 |
5.0 |
81/0.30 |
1.2 |
24/0.20 |
0.8 |
6.3 |
62.2 |
481 |
| 35 |
285/0.40 |
5.0 |
81/0.30 |
1.4 |
24/0.20 |
0.8 |
6.4 |
65.2 |
542 |
| 50 |
380/0.40 |
5.0 |
120/0.30 |
1.4 |
40/0.20 |
0.8 |
6.5 |
68.6 |
620 |
| 70 |
203/0.67 |
5.0 |
39/0.67 |
1.4 |
40/0.20 |
0.8 |
6.6 |
73.1 |
750 |
| 95 |
259/0.67 |
5.0 |
48/0.67 |
1.4 |
40/0.20 |
0.8 |
6.8 |
76.2 |
850 |
| 120 |
336/0.67 |
5.0 |
60/0.67 |
1.4 |
40/0.20 |
0.8 |
6.9 |
80.9 |
986 |
| 150 |
427/0.67 |
5.0 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
7.0 |
85.0 |
1129 |
| 185 |
518/0.67 |
5.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
7.1 |
89.6 |
1289 |
| 240 |
672/0.67 |
5.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
7.3 |
95.7 |
1539 |
| Type 441.22 Class1 |
| 35 |
285/0.40 |
7.6 |
81/0.30 |
1.8 |
24/0.20 |
0.8 |
6.9 |
77.9 |
733 |
| 50 |
380/0.40 |
7.6 |
120/0.30 |
1.8 |
40/0.20 |
0.8 |
7.0 |
81.4 |
820 |
| 70 |
203/0.67 |
7.6 |
39/0.67 |
1.8 |
40/0.20 |
0.8 |
7.1 |
85.8 |
960 |
| 95 |
259/0.67 |
7.6 |
48/0.67 |
1.8 |
40/0.20 |
0.8 |
7.2 |
88.6 |
1070 |
| 120 |
336/0.67 |
7.6 |
60/0.67 |
1.8 |
40/0.20 |
0.8 |
7.3 |
93.4 |
1220 |
| 150 |
427/0.67 |
7.6 |
77/0.67 |
1.8 |
40/0.20 |
0.8 |
7.4 |
97.5 |
1380 |
| 185 |
518/0.67 |
7.6 |
91/0.67 |
1.8 |
40/0.20 |
0.8 |
7.6 |
102.4 |
1545 |
