Type 450 3.3 to 33KV
Applications
These cables are suitable for supply of power to a wide range of applications, from dragline cable to slow reeling applications, where copper screened cable is required but light weight and smaller dimensions are also desired.
Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

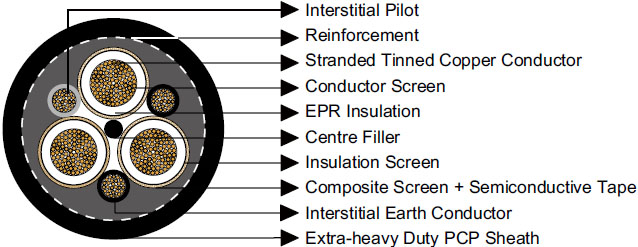

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Composite Screen |
Tinned annealed copper braiding interwove with polyester yarn, covered with semiconductive tape. |
| Filler |
Elastomer centre filler. |
| 2×Interstitial Earth Conductor |
CSP covered flexible stranded tinned copper conductor. |
| 1×Interstitial Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement |
Open-weave braid reinforcement. |
| Sheath |
Extra-heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core Screen |
Pilot/Earth Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Thickness of Covering |
Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm^2 |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 450.3 Class1 |
| 16 |
126/0.40 |
2.2 |
128/0.25 |
6.3 |
120/0.30 |
1.4 |
4.5 |
42.8 |
266 |
| 25 |
209/0.40 |
2.2 |
118/0.30 |
8.3 |
120/0.30 |
1.4 |
4.8 |
46.9 |
338 |
| 35 |
285/0.40 |
2.2 |
127/0.30 |
9.0 |
120/0.30 |
1.4 |
5.1 |
50.3 |
392 |
| 50 |
380/0.40 |
2.4 |
141/0.30 |
10.0 |
183/0.30 |
1.4 |
5.6 |
55.5 |
487 |
| 70 |
203/0.67 |
2.4 |
117/0.40 |
14.7 |
54/0.67 |
1.4 |
6.0 |
61.1 |
637 |
| 95 |
259/0.67 |
2.4 |
123/0.40 |
15.5 |
70/0.67 |
1.6 |
6.3 |
64.3 |
734 |
| 120 |
336/0.67 |
2.4 |
135/0.40 |
17.0 |
84/0.67 |
1.6 |
6.4 |
69.0 |
867 |
| 150 |
427/0.67 |
2.4 |
144/0.40 |
18.1 |
112/0.67 |
1.6 |
6.6 |
73.3 |
1022 |
| 185 |
518/0.67 |
2.4 |
144/0.40 |
18.1 |
132/0.67 |
1.6 |
6.7 |
78.1 |
1175 |
| 240 |
672/0.67 |
2.4 |
136/0.50 |
26.7 |
168/0.67 |
1.6 |
6.9 |
84.5 |
1440 |
| 300 |
854/0.67 |
2.4 |
144/0.50 |
28.3 |
228/0.67 |
1.6 |
7.0 |
90.4 |
1741 |
| Type 450.6 Class1 |
| 16 |
126/0.40 |
3.0 |
118/0.30 |
8.3 |
120/0.30 |
1.4 |
5.0 |
47.6 |
317 |
| 25 |
209/0.40 |
3.0 |
129/0.30 |
9.1 |
120/0.30 |
1.6 |
5.2 |
51.2 |
382 |
| 35 |
285/0.40 |
3.0 |
139/0.30 |
9.8 |
120/0.30 |
1.6 |
5.5 |
54.7 |
443 |
| 50 |
380/0.40 |
3.0 |
149/0.30 |
10.5 |
177/0.30 |
1.6 |
5.9 |
58.8 |
534 |
| 70 |
203/0.67 |
3.0 |
123/0.40 |
15.5 |
54/0.67 |
1.6 |
6.3 |
64.3 |
682 |
| 95 |
259/0.67 |
3.0 |
130/0.40 |
16.3 |
70/0.67 |
1.8 |
6.4 |
67.1 |
771 |
| 120 |
336/0.67 |
3.0 |
141/0.40 |
17.7 |
84/0.67 |
1.8 |
6.5 |
71.9 |
912 |
| 150 |
427/0.67 |
3.0 |
144/0.40 |
18.1 |
112/0.67 |
1.8 |
6.6 |
76.0 |
1073 |
| 185 |
518/0.67 |
3.0 |
144/0.40 |
18.1 |
132/0.67 |
1.8 |
6.8 |
80.9 |
1222 |
| 240 |
672/0.67 |
3.0 |
141/0.50 |
27.7 |
168/0.67 |
1.8 |
7.0 |
87.4 |
1502 |
| 300 |
854/0.67 |
3.0 |
144/0.50 |
28.3 |
228/0.67 |
1.8 |
7.1 |
93.2 |
1790 |
| Type 450.11 Class1 |
| 25 |
209/0.40 |
5.0 |
120/0.40 |
15.1 |
120/0.30 |
2.0 |
6.3 |
62.8 |
542 |
| 35 |
285/0.40 |
5.0 |
127/0.40 |
16.0 |
120/0.30 |
2.0 |
6.4 |
65.8 |
601 |
| 50 |
380/0.40 |
5.0 |
135/0.40 |
17.0 |
183/0.30 |
2.0 |
6.5 |
69.3 |
692 |
| 70 |
203/0.67 |
5.0 |
144/0.40 |
18.1 |
54/0.67 |
2.0 |
6.6 |
73.8 |
826 |
| 95 |
259/0.67 |
5.0 |
144/0.40 |
18.1 |
70/0.67 |
2.2 |
6.7 |
76.6 |
926 |
| 120 |
336/0.67 |
5.0 |
144/0.40 |
18.1 |
84/0.67 |
2.2 |
6.9 |
81.6 |
1082 |
| 150 |
427/0.67 |
5.0 |
139/0.50 |
27.3 |
112/0.67 |
2.2 |
7.0 |
86.1 |
1263 |
| 185 |
518/0.67 |
5.0 |
144/0.50 |
28.3 |
132/0.67 |
2.2 |
7.1 |
90.8 |
1433 |
| 240 |
627/0.67 |
5.0 |
144/0.50 |
28.3 |
168/0.67 |
2.2 |
7.3 |
96.8 |
1690 |
| 300 |
854/0.67 |
5.0 |
144/0.50 |
28.3 |
228/0.67 |
2.2 |
7.4 |
102.7 |
2000 |
| Type 450.22 Class1 |
| 35 |
285/0.40 |
7.6 |
144/0.40 |
18.1 |
120/0.30 |
2.5 |
6.8 |
78.4 |
805 |
| 50 |
380/0.40 |
7.6 |
144/0.40 |
18.1 |
183/0.30 |
2.5 |
6.9 |
81.8 |
900 |
| 70 |
203/0.67 |
7.6 |
140/0.50 |
27.5 |
54/0.67 |
2.5 |
7.0 |
86.8 |
1070 |
| 95 |
259/0.67 |
7.6 |
144/0.50 |
28.3 |
70/0.67 |
2.5 |
7.2 |
89.8 |
1180 |
| 120 |
336/0.67 |
7.6 |
144/0.50 |
28.3 |
84/0.67 |
2.5 |
7.3 |
94.5 |
1350 |
| 150 |
427/0.67 |
7.6 |
144/0.50 |
28.3 |
112/0.67 |
2.5 |
7.4 |
98.6 |
1520 |
| 185 |
518/0.67 |
7.6 |
144/0.50 |
28.3 |
132/0.67 |
2.5 |
7.5 |
103.4 |
1700 |
| 240 |
627/0.67 |
7.6 |
144/0.50 |
28.3 |
168/0.67 |
2.5 |
7.7 |
109.4 |
1980 |
| 300 |
854/0.67 |
7.6 |
144/0.50 |
28.3 |
228/0.67 |
2.5 |
7.9 |
115.4 |
2310 |
| Type 450.33 Class1 |
| 50 |
380/0.40 |
10.5 |
144/0.50 |
28.3 |
183/0.30 |
2.5 |
7.4 |
96.9 |
1222 |
| 70 |
203/0.67 |
10.5 |
144/0.50 |
28.3 |
54/0.67 |
2.5 |
7.5 |
101.4 |
1385 |
| 95 |
259/0.67 |
10.5 |
144/0.50 |
28.3 |
70/0.67 |
2.5 |
7.7 |
104.4 |
1505 |
| 120 |
336/0.67 |
10.5 |
144/0.50 |
28.3 |
84/0.67 |
2.5 |
7.8 |
109.2 |
1680 |
| 185 |
518/0.67 |
10.5 |
144/0.50 |
28.3 |
132/0.67 |
2.5 |
8.0 |
118.0 |
2060 |
| 240 |
627/0.67 |
10.5 |
144/0.50 |
28.3 |
168/0.67 |
2.5 |
8.2 |
124.0 |
2360 |
| 300 |
854/0.67 |
10.5 |
144/0.50 |
28.3 |
228/0.67 |
2.5 |
8.4 |
130.1 |
2710 |
