Type 455 3.3 to 33KV
Applications
These cables are designed with reduced insulation and sheath thickness, no cradle, 2 earth and 1 pilot core (each earth and pilot are the same size) in the outer interstices. These cables are suitable for reeling and trailing applications where minimal diameter and mass is desired, particularly suited to stacker-reclaimer applications.
Standards
- AS/NZS 2802:2000
- AS/NZS 1125
- AS/NZS 3808
- AS/NZS 5000.1
|
 |

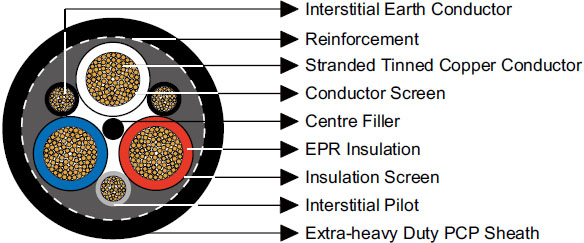

Construction
| 3×Conductors |
Flexible stranded tinned annealed copper conductor. |
| Conductor Screen |
Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation |
EPR. |
| Insulation Screen |
Semiconductive elastomer. |
| Filler |
Elastomer centre filler. |
| 2×Interstitial Earth Conductor |
CSP covered flexible stranded tinned copper conductor. |
| 1×Interstitial Pilot |
EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement |
Open-weave braid reinforcement. |
| Sheath |
Extra-heavy duty PCP sheath. Extra-heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
| Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Pilot/Earth Conductor |
Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| Strand Size |
Thickness of Covering |
| mm^2 |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
| Type 455.3 Class1 |
| 16 |
126/0.40 |
2.2 |
120/0.30 |
1.4 |
4.2 |
39.4 |
224 |
| 25 |
209/0.40 |
2.2 |
120/0.30 |
1.4 |
4.5 |
43.3 |
281 |
| 35 |
285/0.40 |
2.2 |
120/0.30 |
1.4 |
4.8 |
46.7 |
336 |
| 50 |
380/0.40 |
2.4 |
183/0.30 |
1.4 |
5.3 |
51.9 |
424 |
| 70 |
203/0.67 |
2.4 |
54/0.67 |
1.4 |
5.7 |
57.0 |
556 |
| 95 |
259/0.67 |
2.4 |
70/0.67 |
1.6 |
6.1 |
60.5 |
646 |
| 120 |
336/0.67 |
2.4 |
84/0.67 |
1.6 |
6.4 |
65.6 |
786 |
| 150 |
427/0.67 |
2.4 |
112/0.67 |
1.6 |
6.5 |
69.7 |
931 |
| 185 |
518/0.67 |
2.4 |
132/0.67 |
1.6 |
6.6 |
74.5 |
1072 |
| 240 |
672/0.67 |
2.4 |
168/0.67 |
1.6 |
6.8 |
80.5 |
1310 |
| 300 |
854/0.67 |
2.4 |
228/0.67 |
1.6 |
6.9 |
86.3 |
1600 |
| Type 455.6 Class1 |
| 16 |
126/0.40 |
3.0 |
120/0.30 |
1.4 |
4.7 |
43.9 |
266 |
| 25 |
209/0.40 |
3.0 |
120/0.30 |
1.6 |
5.0 |
47.8 |
332 |
| 35 |
285/0.40 |
3.0 |
120/0.30 |
1.6 |
5.3 |
51.3 |
387 |
| 50 |
380/0.40 |
3.0 |
183/0.30 |
1.6 |
5.6 |
55.1 |
466 |
| 70 |
203/0.67 |
3.0 |
54/0.67 |
1.6 |
6.0 |
60.3 |
597 |
| 95 |
259/0.67 |
3.0 |
70/0.67 |
1.8 |
6.3 |
63.5 |
692 |
| 120 |
336/0.67 |
3.0 |
84/0.67 |
1.8 |
6.5 |
68.5 |
826 |
| 150 |
427/0.67 |
3.0 |
112/0.67 |
1.8 |
6.6 |
72.6 |
977 |
| 185 |
518/0.67 |
3.0 |
132/0.67 |
1.8 |
6.7 |
77.3 |
1122 |
| 240 |
672/0.67 |
3.0 |
168/0.67 |
1.8 |
6.9 |
83.3 |
1361 |
| 300 |
854/0.67 |
3.0 |
228/0.67 |
1.8 |
7.0 |
89.1 |
1652 |
| Type 455.11 Class1 |
| 16 |
126/0.40 |
5.0 |
120/0.30 |
2.0 |
5.8 |
55.1 |
392 |
| 25 |
209/0.40 |
5.0 |
120/0.30 |
2.0 |
6.1 |
59.0 |
462 |
| 35 |
285/0.40 |
5.0 |
120/0.30 |
2.0 |
6.3 |
62.2 |
527 |
| 50 |
380/0.40 |
5.0 |
183/0.30 |
2.0 |
6.4 |
65.6 |
607 |
| 70 |
203/0.67 |
5.0 |
54/0.67 |
2.0 |
6.5 |
70.2 |
742 |
| 95 |
259/0.67 |
5.0 |
70/0.67 |
2.2 |
6.7 |
73.2 |
837 |
| 120 |
336/0.67 |
5.0 |
84/0.67 |
2.2 |
6.8 |
77.9 |
982 |
| 150 |
427/0.67 |
5.0 |
112/0.67 |
2.2 |
6.9 |
82.0 |
1143 |
| 185 |
518/0.67 |
5.0 |
132/0.67 |
2.2 |
7.0 |
86.8 |
1305 |
| 240 |
672/0.67 |
5.0 |
168/0.67 |
2.2 |
7.2 |
92.8 |
1553 |
| Type 455.22 Class1 |
| 16 |
126/0.40 |
7.6 |
120/0.30 |
2.5 |
6.6 |
68.5 |
578 |
| 25 |
209/0.40 |
7.6 |
120/0.30 |
2.5 |
6.6 |
71.7 |
653 |
| 35 |
285/0.40 |
7.6 |
120/0.30 |
2.5 |
6.7 |
74.7 |
719 |
| 50 |
380/0.40 |
7.6 |
183/0.30 |
2.5 |
6.8 |
78.2 |
810 |
| 70 |
203/0.67 |
7.6 |
54/0.67 |
2.5 |
7.0 |
82.9 |
956 |
| 95 |
259/0.67 |
7.6 |
70/0.67 |
2.5 |
7.1 |
85.7 |
1061 |
| 120 |
336/0.67 |
7.6 |
84/0.67 |
2.5 |
7.2 |
90.5 |
1221 |
| 150 |
427/0.67 |
7.6 |
112/0.67 |
2.5 |
7.3 |
94.6 |
1392 |
| 185 |
518/0.67 |
7.6 |
132/0.67 |
2.5 |
7.4 |
99.3 |
1564 |
| Type 455.33 Class1 |
| 16 |
126/0.40 |
10.5 |
120/0.30 |
2.5 |
7.0 |
83.0 |
822 |
| 25 |
209/0.40 |
10.5 |
120/0.30 |
2.5 |
7.1 |
86.4 |
920 |
| 35 |
285/0.40 |
10.5 |
120/0.30 |
2.5 |
7.2 |
89.4 |
993 |
| 50 |
380/0.40 |
10.5 |
183/0.30 |
2.5 |
7.3 |
92.8 |
1092 |
| 70 |
203/0.67 |
10.5 |
54/0.67 |
2.5 |
7.4 |
97.4 |
1254 |
| 95 |
259/0.67 |
10.5 |
70/0.67 |
2.5 |
7.6 |
100.4 |
1372 |
| 120 |
336/0.67 |
10.5 |
84/0.67 |
2.5 |
7.7 |
105.1 |
1543 |
| 150 |
427/0.67 |
10.5 |
112/0.67 |
2.5 |
7.8 |
109.2 |
1720 |
