Type SHD-GC Three-Conductor Round Portable Power Cable, TPU Jacket 25kV

These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills and for power feeders.

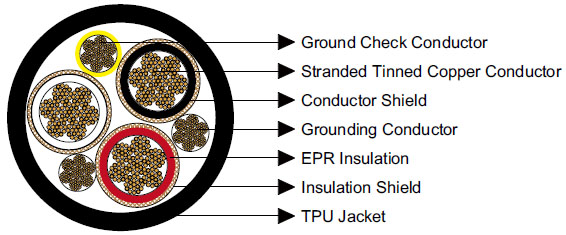

Conductors	Stranded annealed tinned copper conductor.
Conductor Shield	Conducting layer.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Conducting tape + Tinned copper/textile braid.
Ground Check Conductor	Tinned copper with a yellow polypropylene insulation.
Grounding Conductor	Tinned copper conductor.
Jacket	Thermoplastic Polyurethane (TPU) Jacket, black.

Other jacket materials such as CPE/CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Minimum Bending Radius	8×OD
Maximum Conductor Operating Temperature	+90℃

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter Height×Width		Nominal Weight		Ampacity
No. of cores × AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×1	259	5	8	0.260	6.6	0.265	6.7	2.95	74.9	4410	6561	191
3×1/0	266	4	8	0.260	6.6	0.265	6.7	3.05	77.5	4866	7240	218
3×2/0	323	3	8	0.260	6.6	0.280	7.1	3.20	81.3	5560	8272	249
3×3/0	418	2	8	0.260	6.6	0.280	7.1	3.33	84.6	6192	9213	286
3×4/0	532	1	8	0.260	6.6	0.295	7.5	3.50	88.9	7110	10578	327

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
