Type W Single Conductor Portable Power Cable 2kV
Applications
These cables are designed for use on electric mining locomotives and other mobile equipment of the gathering-reel type, where the cable must withstand constant flexing and reeling.
Standards
- ICEA S-75-381/NEMA WC 58
- ASTM B 172
- ASTM B 33
- CAN/CSA C22.2 No. 96
Construction

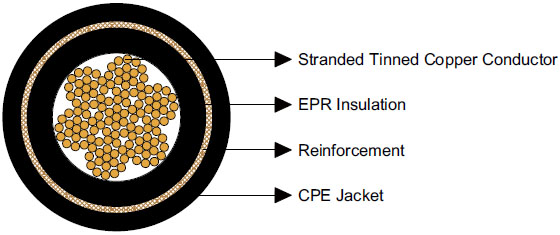

-1.jpg) |
| Conductors | Stranded annealed tinned copper conductor. |
|---|---|
| Insulation | Ethylene Propylene Rubber (EPR). |
| Reinforcement | A layer of polyester braid, applied between the insulation and jacket for mechanical strength. |
| Jacket | Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
Options
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
| Minimum Bending Radius | 6×OD |
|---|---|
| Maximum Conductor Operating Temperature | +90℃ |
Dimensions and Weight
| Construction | No. of Strands | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| No. of cores × AWG/kcmil | - | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 1×8 | 133 | 0.060 | 1.5 | 0.060 | 1.5 | 0.44 | 11.2 | 150 | 223 | 83 |
| 1×6 | 168 | 0.060 | 1.5 | 0.080 | 2.0 | 0.51 | 13.0 | 205 | 305 | 109 |
| 1×4 | 259 | 0.060 | 1.5 | 0.080 | 2.0 | 0.57 | 14.5 | 280 | 417 | 145 |
| 1×3 | 329 | 0.060 | 1.5 | 0.095 | 2.4 | 0.63 | 16.0 | 350 | 521 | 167 |
| 1×2 | 259 | 0.060 | 1.5 | 0.095 | 2.4 | 0.66 | 16.8 | 370 | 550 | 192 |
| 1×1 | 329 | 0.080 | 2.0 | 0.110 | 2.8 | 0.74 | 18.8 | 500 | 744 | 223 |
| 1×1/0 | 259 | 0.080 | 2.0 | 0.110 | 2.8 | 0.77 | 19.6 | 550 | 818 | 258 |
| 1×2/0 | 329 | 0.080 | 2.0 | 0.110 | 2.8 | 0.82 | 20.1 | 660 | 982 | 298 |
| 1×3/0 | 427 | 0.080 | 2.0 | 0.125 | 3.2 | 0.87 | 22.1 | 830 | 1235 | 345 |
| 1×4/0 | 532 | 0.080 | 2.0 | 0.125 | 3.2 | 0.93 | 23.6 | 950 | 1413 | 400 |
| 1×250 | 608 | 0.095 | 2.4 | 0.140 | 3.6 | 1.03 | 26.2 | 1240 | 1845 | 445 |
| 1×300 | 741 | 0.095 | 2.4 | 0.140 | 3.6 | 1.09 | 27.7 | 1400 | 2083 | 500 |
| 1×350 | 855 | 0.095 | 2.4 | 0.155 | 3.9 | 1.15 | 29.2 | 1480 | 2202 | 552 |
| 1×500 | 1221 | 0.095 | 2.4 | 0.155 | 3.9 | 1.31 | 33.3 | 2140 | 3184 | 695 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
