2YSLGCGOEU Signal & Control Cable
Applications
These control, signalling and bus cables are used for electric and electronic equipment, such as for measured value and process data processing and automation units in open-cast mining applications, suitable for laying alongside conveyor belts and on material handling equipment.
Standards
VDE 0250 Part 812

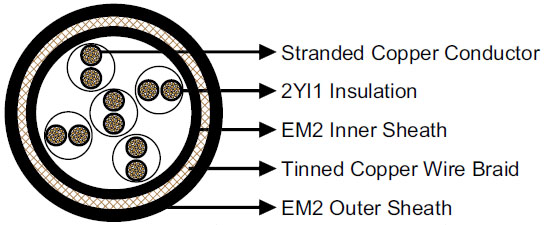

Construction
| Conductors |
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295. |
| Insulation |
PE type 2YI1. |
| Cable Element |
Cores are laid-up in pairs in layers with a continuous serving of non-hygroscopic material over the conductor assembly. |
| Inner Sheath |
CM type EM2. |
| Screen |
Tinned copper wire braid. |
| Outer Sheath |
CM type EM2. |
Dimensions and Weight
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 2×2×1 |
11.0 |
13.0 |
245 |
| 5×2×1 |
16.0 |
19.0 |
440 |
| 10×2×1 |
20.0 |
23.0 |
700 |
| 20×2×1 |
25.0 |
29.0 |
1040 |
