(N)SSHOEU 0.6/1kV Heavy Duty Flexible Cable
Applications
These cables are used for connection of mobile equipment and machines under very high mechanical loads in dry and damp areas, outdoors and in explosion hazard areas, particularly in mining and at quarries and building sites.
Standards
Based on VDE 0250 Part 812

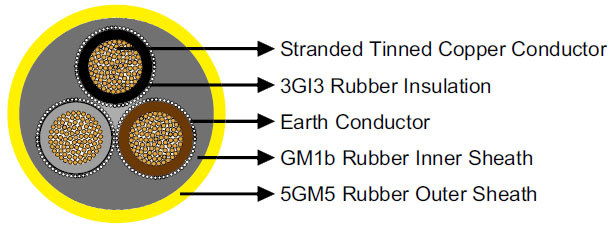

Construction
| Conductors |
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295. |
| Insulation |
Rubber type 3GI3. |
| Pilot Cores (optional) |
Tinned copper conductor with EPR insulation. |
| Earth Conductor |
Spiral of tinned copper wires. |
| Inner Sheath |
Rubber type GM1b. |
| Outer Sheath |
Rubber type 5GM5. |
Dimensions and Weight
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 3x2.5+3x2.5/3E |
14.0 |
17.0 |
300 |
| 3x6+3x6/3E |
18.0 |
21.0 |
580 |
| 3x10+3x10/3E |
21.0 |
25.0 |
860 |
| 3x2.5+3x2.5/3E+3x1.5 |
17.0 |
20.0 |
450 |
| 3x6+3x6/3E+3x1.5 |
18.0 |
22.0 |
660 |
| 3x10+3x10/3E+3x2.5 |
21.0 |
26.0 |
950 |
| 3x25+3x16/3E+3x2.5 |
28.0 |
33.0 |
1660 |
| 3x35+3x16/3E+3x2.5 |
30.0 |
35.0 |
1970 |
| 3x50+3x25/3E+3x2.5 |
36.0 |
41.0 |
2840 |
| 3x70+3x35/3E+3x2.5 |
41.0 |
46.0 |
3700 |
| 3x95+3x50/3E+3x2.5 |
47.0 |
52.0 |
4950 |
| 3x120+3x70/3E+3x2.5 |
52.0 |
57.0 |
5650 |
| 3x150+3x70/3E+3x2.5 |
58.0 |
63.0 |
6520 |
