NSGAFOEU/NSHXAFOE Medium Voltage Single Core Cables
Applications
These cables are designed for fixed installation in track-bound vehicles and buses, in pipes and closed installation ducts, as well as for the connection of mobile parts. 3 kV-rated cables can be used in low-voltage switch boards to ensure inherently short-circuit and earth-fault proof connections.
Standards
DIN VDE 0250 Part 602 (for NSGAFOEU/NSGAFCMOEU)
DIN VDE 0250 Part 606 (for halogen free version NSHXAFOE/NSHXAFCMOE)

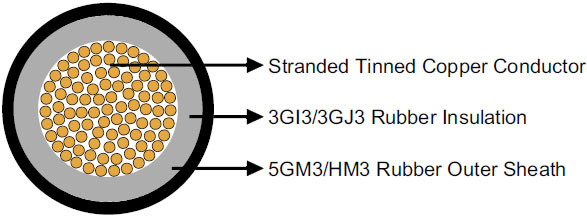

Construction
| Conductors |
Stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228. |
| Inner Conductor Layer(for 6kV) |
Semi-conducting layer. |
| Insulation |
EPR compound type 3GI3/3GJ3. |
| Optional Screen (for NSGAFCMOEU/NSHXAFCMOE) |
Tinned copper wires. |
| Outer Sheath |
Chlorinated rubber type 5GM3, oil resistant and flame retardant (for NSGAFOEU/NSGAFCMOEU). Halogen-free polymer compound HM3, oil-resistant, flame retardant, low smoke (for NSHXAFOE/NSHXAFOE). |
Dimensions and Weight
NSGAFOEU/ NSHXAFOE 1.8/3kV
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 1×1.5 |
5.7 |
7.0 |
50 |
| 1×2.5 |
6.0 |
7.5 |
60 |
| 1×4 |
6.8 |
9.0 |
80 |
| 1×6 |
7.3 |
9.5 |
100 |
| 1×10 |
8.7 |
11.0 |
160 |
| 1×16 |
10.0 |
13.0 |
230 |
| 1×25 |
12.4 |
15.0 |
340 |
| 1×35 |
13.4 |
16.5 |
430 |
| 1×50 |
14.9 |
18.0 |
580 |
| 1×70 |
16.6 |
20.5 |
780 |
| 1×95 |
19.3 |
24.0 |
1030 |
| 1×120 |
20.8 |
26.0 |
1270 |
| 1×150 |
23.0 |
28.0 |
1570 |
| 1×185 |
25.2 |
31.0 |
1900 |
| 1×240 |
28.1 |
34.5 |
2500 |
| 1×300 |
30.8 |
38.0 |
3000 |
| 1×400 |
40.0 |
34.6 |
4000 |
NSGAFOEU/NSHXAFOE 3.6/6kV
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter
|
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 1×1.5 |
8.3 |
9.5 |
135 |
| 1×2.5 |
8.6 |
10.5 |
150 |
| 1×4 |
9.4 |
12.0 |
170 |
| 1×6 |
9.9 |
13.0 |
200 |
| 1×10 |
10.9 |
14.5 |
250 |
| 1×16 |
12.6 |
15.5 |
350 |
| 1×25 |
14.5 |
17.5 |
480 |
| 1×35 |
15.6 |
19.0 |
600 |
| 1×50 |
17.1 |
21.0 |
760 |
| 1×70 |
18.8 |
23.0 |
960 |
| 1×95 |
21.3 |
26.5 |
1240 |
| 1×120 |
23.2 |
28.5 |
1530 |
| 1×150 |
25.0 |
30.5 |
1790 |
| 1×185 |
26.8 |
33.0 |
2130 |
NSGAFCMOEU/NSHXAFCMOE 3.6/6kV
| Number of Cores×Nominal Cross Section |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
kg/km |
| 1×185 |
38.5 |
3060 |
