NTMCWOEU Flexible Medium Voltage Single Core Cable
Applications
These cables are used for connection in switch-gear and for connection of mobile transformer substations to the overhead line.
Standards
VDE 0250 Part 813

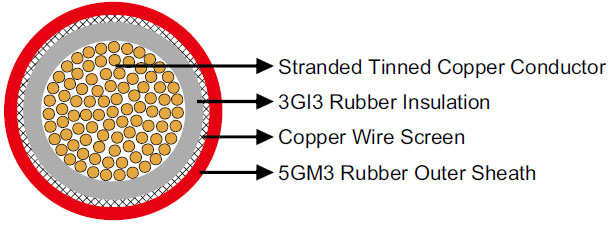

Construction
| Conductors |
Flexible stranded tinned copper conductor , class 5 according to DIN VDE 0295. |
| Inner Conductor Layer |
Special conductive rubber. |
| Insulation |
EPR type 3GI3. |
| Outer Conductor Layer |
Special conductive rubber. |
| Screen |
Spiral of tinned copper wires. |
| Outer Sheath |
PCP type 5GM3. |
Dimensions and Weight
6/10kV
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Outer Sheath |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
kg/km |
| 1×16/16 |
3.4 |
2.2 |
22.0 |
760 |
| 1×25/16 |
3.4 |
2.2 |
23.5 |
910 |
| 1×35/16 |
3.4 |
2.2 |
24.5 |
1040 |
| 1×50/16 |
3.4 |
2.2 |
27.0 |
1260 |
| 1×70/16 |
3.4 |
2.5 |
28.5 |
1530 |
| 1×95/16 |
3.4 |
2.5 |
30.5 |
1770 |
| 1×120/16 |
3.4 |
2.5 |
33.5 |
2180 |
| 1×150/25 |
3.4 |
3.0 |
35.0 |
2550 |
| 1×185/25 |
3.4 |
3.0 |
37.0 |
2900 |
| 1×240/25 |
3.4 |
3.5 |
41.0 |
3590 |
| 1×300/25 |
3.4 |
3.5 |
43.0 |
4280 |
| 1×400/35 |
3.4 |
4.0 |
46.0 |
5120 |
| 1×500/35 |
3.4 |
4.0 |
49.0 |
5950 |
| 1×630/35 |
3.4 |
4.0 |
53.5 |
7860 |
12/20kV
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Outer Sheath |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
kg/km |
| 1×25/16 |
5.5 |
2.5 |
28.0 |
1180 |
| 1×35/16 |
5.5 |
2.5 |
29.5 |
1320 |
| 1×50/16 |
5.5 |
2.5 |
31.5 |
1560 |
| 1×70/16 |
5.5 |
3.0 |
34.0 |
1920 |
| 1×95/16 |
5.5 |
3.0 |
36.0 |
2190 |
| 1×120/16 |
5.5 |
3.0 |
38.0 |
2460 |
| 1×150/25 |
5.5 |
3.5 |
40.0 |
2990 |
| 1×185/25 |
5.5 |
3.5 |
42.0 |
3350 |
| 1×240/25 |
5.5 |
3.5 |
45.0 |
3990 |
| 1×300/25 |
5.5 |
3.5 |
48.0 |
4760 |
| 1×400/35 |
5.5 |
4.0 |
52.0 |
6100 |
| 1×500/35 |
5.5 |
4.0 |
56.0 |
7010 |
| 1×630/35 |
5.5 |
4.0 |
60.0 |
8180 |
14/25kV
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Outer Sheath |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
kg/km |
| 1×25/16 |
6.8 |
3.0 |
30.5 |
1300 |
| 1×300/25 |
6.8 |
4.0 |
49.0 |
4900 |
18/30kV
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Outer Sheath |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
kg/km |
| 1×50/16 |
8.0 |
3.0 |
35.0 |
1870 |
20/35 kV
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Outer Sheath |
Nominal Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
kg/km |
| 1×95/16 |
9.5 |
3.5 |
44.0 |
2900 |
| 1×150/25 |
9.5 |
3.5 |
46.3 |
3600 |
| 1×240/25 |
9.5 |
4.0 |
51.7 |
5000 |
