NTSKCGERLOEU Medium Voltage Coal Cutter Cable
Applications
These cables are used for the connection of mobile electrical equipment in underground mines, e.g. for coal-cutting machines, especially for the use in bretby chains with extreme bending loads under low tensile stress.
Standards
VDE 0250 Part 813

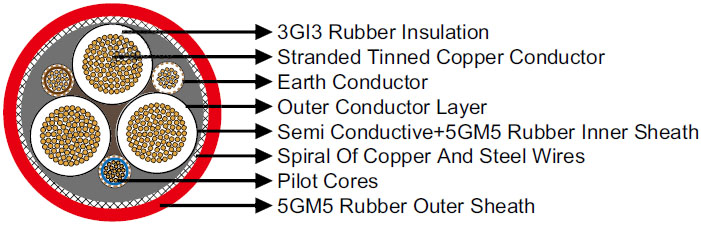

Construction
| Conductors |
Flexible stranded tinned copper conductor. |
| Insulation |
Heat resistant 3GI3 rubber based on EPR. |
| Outer Conductor Layer (for 3.6/6kV) |
Easy strippable outer conductive layer. |
| Pilot Cores |
Copper/steel conductor capable of expansion and compression with EPR rubber insulation. |
| Earth Conductor |
Spiral of tinned copper wires and a conductive tape. |
| Inner Sheath |
2 layer design, semi conductive rubber + Rubber type 5GM5. |
| Armour |
Spiral of steel wires, embedded in the outer sheath, fiberglas tape which prevents sheath exchanging. |
| Outer Sheath |
Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant. |
Dimensions and Weight
1.8/3kV
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 3×35+3×(1.5ST+25/3)+UEL |
44.0 |
49.0 |
3900 |
| 3×50+3×(1.5ST+25/3)+UEL |
50.0 |
55.0 |
5100 |
| 3×70+3×(1.5ST+35/3)+UEL |
52.0 |
56.0 |
6200 |
| 3×95+3×(1.5ST+50/3)+UEL |
58.0 |
62.0 |
7500 |
| 3×120+3×(1.5ST+70/3)+UEL |
64.0 |
70.0 |
9350 |
3.6/6kV
| Number of Cores×Nominal Cross Section |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
kg/km |
| 3×35+3×(1.5ST+25/3)+UEL |
49.0 |
54.0 |
5800 |
| 3×50+3×(1.5ST+25/3)+UEL |
56.0 |
61.0 |
6100 |
| 3×70+3×(1.5ST+35/3)+UEL |
57.0 |
62.0 |
6700 |
| 3×95+3×(1.5ST+50/3)+UEL |
62.0 |
66.0 |
8000 |
| 3×120+3×(1.5ST+70/3)+UEL |
67.0 |
71.0 |
10200 |
