150/250V HF-EPR Insulated, SW2/SW4 Sheathed, Collectively Screened Unarmoured Flame Retardant Instrumentation & Control Cables

Applications

These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in instrumentation, lighting and control circuits.

Standards

  • BS 6883
  • IEC 60332-3A Flame retardant
  • IEC 60754-1; IEC 60754-2 Corrosivity
  • IEC 61034-2 Smoke density
  • Cold bend and impact (-40°C) (on request)
  • CSA C22.2 No. 38-95 (on request)

Construction

150/250V HF-EPR Insulated, SW2/SW4 Sheathed, Collectively
Screened Unarmoured Flame Retardant Instrumentation & Control
Cables

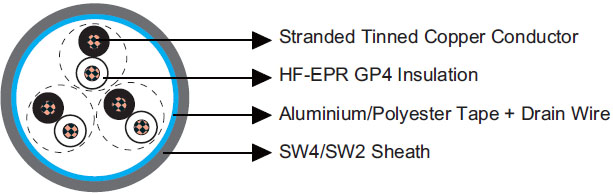

Conductor Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228
Insulation HF-EPR GP4 according to BS 7655 1.2.
Lay-up Pairs, triples.
Collective Screen Aluminium/polyester tape + drain wire tinned copper.
Sheath Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius 8×OD
Temperature Range -40°C ~ +90°C

Dimensions and Weight

Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Approx. Weight
mm^2 mm mm mm mm kg/km
Multipair
3×2×0.75 0.8 1.2 12.6 14.5 175
7×2×0.75 0.8 1.4 16.6 18.7 330
12×2×0.75 0.8 1.6 21.7 24.2 530
20×2×0.75 0.8 1.8 27.3 30.1 830
27×2×0.75 0.8 1.9 31.1 34.2 1070
37×2×0.75 0.8 2.1 34.4 37.7 1430
3×2×1 0.8 1.2 13.3 15.3 185
7×2×1 0.8 1.4 17.6 19.8 360
12×2×1 0.8 1.6 23.1 25.7 590
20×2×1 0.8 1.8 29.1 31.9 920
27×2×1 0.8 2.0 33.3 36.6 1220
37×2×1 0.8 2.2 36.9 40.3 1630
Multitriple
3×3×0.75 0.8 1.3 14.2 16.2 230
7×3×0.75 0.8 1.4 19.4 21.9 440
12×3×0.75 0.8 1.7 24.2 26.8 730
3×3×1 0.8 1.3 15.1 17.1 260
7×3×1 0.8 1.5 20.9 23.4 510
12×3×1 0.8 1.7 25.8 28.5 840
