150/250V HF-EPR Insulated, SW2/SW4 Sheathed, Individually Screened Unarmoured Flame Retardant Instrumentation & Control Cables
Applications
These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in instrumentation, lighting and control circuits.
Standards
- BS 6883
- IEC 60332-3A Flame retardant
- IEC 60754-1; IEC 60754-2 Corrosivity
- IEC 61034-2 Smoke density
- Cold bend and impact (-40°C) (on request)
- CSA C22.2 No. 38-95 (on request)

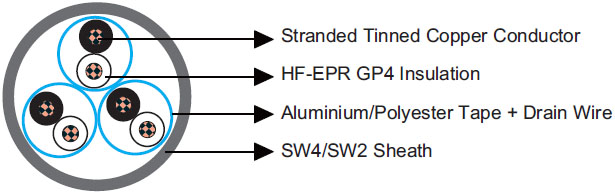

Construction
| Conductor |
Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228 |
| Insulation |
HF-EPR GP4 according to BS 7655 1.2. |
| Lay-up |
Pairs, triples, quads. |
| Individual Screen |
Aluminium/polyester tape + drain wire tinned copper. |
| Sheath |
Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6. |
Mechanical and Thermal Properties
| Minimum Internal Bending Radius |
8×OD |
| Temperature Range |
-40°C ~ +90°C |
Dimensions and Weight
| Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Approx. Weight |
| mm^2 |
mm |
mm |
mm |
mm |
kg/km |
| Multipair |
| 1×2×0.75 |
0.8 |
1.0 |
7.3 |
9.0 |
90 |
| 3×2×0.75 |
0.8 |
1.2 |
12.6 |
14.5 |
200 |
| 7×2×0.75 |
0.8 |
1.4 |
16.9 |
19.0 |
390 |
| 12×2×0.75 |
0.8 |
1.6 |
21.2 |
23.7 |
630 |
| 20×2×0.75 |
0.8 |
1.9 |
27.0 |
29.8 |
1010 |
| 27×2×0.75 |
0.8 |
2.0 |
30.8 |
33.9 |
1320 |
| 37×2×0.75 |
0.8 |
2.2 |
35.9 |
39.3 |
1560 |
| 1×2×1 |
0.8 |
1.0 |
7.7 |
9.5 |
100 |
| 3×2×1 |
0.8 |
1.3 |
13.5 |
15.5 |
240 |
| 7×2×1 |
0.8 |
1.4 |
18.0 |
20.1 |
470 |
| 12×2×1 |
0.8 |
1.7 |
22.8 |
25.4 |
780 |
| 20×2×1 |
0.8 |
1.9 |
28.8 |
31.6 |
1230 |
| 27×2×1 |
0.8 |
2.1 |
32.8 |
36.0 |
1630 |
| 37×2×1 |
0.8 |
2.3 |
38.5 |
42.3 |
2180 |
| Multitriple |
| 1×3×0.75 |
0.8 |
1.0 |
7.7 |
9.4 |
100 |
| 3×3×0.75 |
0.8 |
1.3 |
14.2 |
16.2 |
250 |
| 7×3×0.75 |
0.8 |
1.5 |
19.7 |
22.1 |
500 |
| 12×3×0.75 |
0.8 |
1.7 |
24.4 |
27.1 |
830 |
| 1×3×1 |
0.8 |
1.1 |
8.4 |
10.1 |
120 |
| 3×3×1 |
0.8 |
1.3 |
15.0 |
17.2 |
300 |
| 7×3×1 |
0.8 |
1.5 |
21.0 |
23.5 |
610 |
| 12×3×1 |
0.8 |
1.8 |
26.2 |
28.9 |
1020 |
| Multiquad |
| 1×4×0.75 |
0.8 |
1.1 |
8.6 |
10.4 |
120 |
| 3×4×0.75 |
0.8 |
1.4 |
16.4 |
18.5 |
310 |
| 7×4×0.75 |
0.8 |
1.6 |
22.1 |
24.7 |
620 |
| 1×4×1 |
0.8 |
1.1 |
9.1 |
10.9 |
140 |
| 3×4×1 |
0.8 |
1.4 |
17.5 |
19.6 |
360 |
| 7×4×1 |
0.8 |
1.6 |
23.6 |
26.2 |
740 |
