Armoured PROFIBUS 1 Pair 22 AWG

Applications

These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards

  • IEC 60332-1&2
  • IEC 60754-1/2
  • IEC 61034
  • IEC 60092

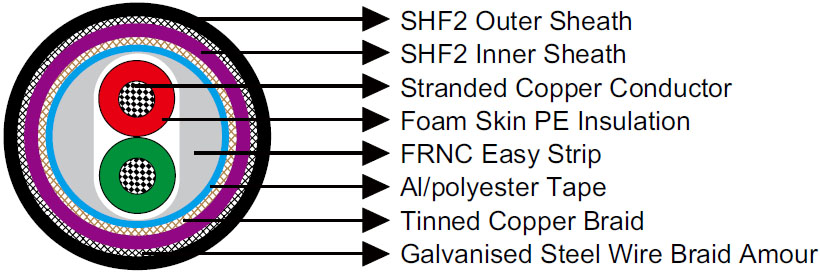

Construction

  Armoured PROFIBUS 1 Pair 22 AWG
Conductors Stranded bare copper 22 AWG.
Insulation Foam skin PE.
Easy Strip Thermoplastic copolymer (FRNC).
Overall Screen1 Aluminium/polyester tape.
Overall Screen2 Tinned copper braid.
Inner Sheath SHF2.
Armour Galvanised Steel Wire Braid.
Outer Sheath SHF2.

Core Identification

Core 1 Red
Core 2 Green

Electrical Characteristics

Characteristic Impedance Ω 150 ±15
Mutual Capacitance @1KHz nF/km 28.5
Insulation Resistance MΩ.km 16000
Attenuation @9.6kHz dB/km 2.5
Attenuation @38.4kHz dB/km 4
Attenuation @4kHz dB/km 22
Attenuation @16kHz dB/km 42

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 10×OD
Temperature Range -30℃ ~ +75℃

Dimensions and Weight

Part No. Construction No. of elements×No. of cores in element×Cross section Core Diameter Nominal Overall Diameter Nominal Weight
  mm^2 mm mm kg/km
MLN-02YSH(ST)CHSWBH-1×2×22A 1×2×22 AWG 2.55 10.65 180
