Cat 5e SF/UTP 24AWG 4P/8P
Applications
These Cat5e SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.
Standards
- EN 50173-1
- EN 50288-2-1
- ISO/IEC 11801
- IEC 61156-5
- TIA/EIA-568-B.2
- IEC 60332-1 (for PVC & LSOH & FRLSOH Sheath)
- IEC 60754-2 (for LSOH & FRLSOH Sheath)
- IEC 61034 (for LSOH & FRLSOH Sheath)
- IEC 60332-3-24 (for FRLSOH Sheath)

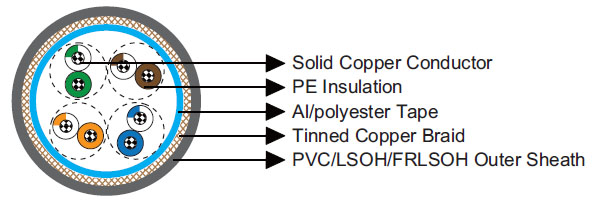

Construction
| Conductors |
Bare copper conductor. |
| Insulation |
PE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Overall Screen1 |
Al/polyester tape. |
| Overall Screen2 |
Tinned copper wire braid. |
| Outer Sheath |
PVC/LSOH/FRLSOH. |
Core Identification
| Pair 1 |
White/Blue, Blue |
| Pair 2 |
White/Orange, Orange |
| Pair 3 |
White/Green, Green |
| Pair 4 |
White/Brown, Brown |
Electrical Properties
| Maximum Loop Resistance |
Ω/km |
190 |
| Maximum Resistance Unbalance |
|
2% |
| Minimum Insulation Resistance |
MΩ.km |
1000 |
| Nominal Capacitance @800Hz |
nF/km |
48 |
| Maximum Capacitance Unbalance (pair to ground) |
pF/km |
1500 |
| Characteristic Impedance @1-100MHz |
Ω |
100 ±15 |
| Nominal Velocity of Propagation |
|
ca. 67% |
| Maximum Propagation Delay |
ns/100 m |
535 |
| Maximum Delay Skew |
ns/100 m |
20 |
| Maximum Transfer Impedance @1MHz |
mΩ/m |
20 |
| Maximum Transfer Impedance @10MHz |
mΩ/m |
20 |
| Maximum Transfer Impedance @30MHz |
mΩ/m |
30 |
| Maximum Transfer Impedance @100MHz |
mΩ/m |
60 |
| Minimum Coupling Attenuation |
dB |
75 |
Nominal Transmission Characteristics @20℃
| F |
Attenuation |
NEXT |
ACR |
Return Loss |
PS-NEXT |
PS-ACR |
ELFEXT |
PS-ELFEXT |
| MHz |
dB/100m |
dB |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB/100m |
| 1 |
2.1 |
90 |
88 |
|
87 |
85 |
85 |
82 |
| 4 |
4.0 |
90 |
86 |
27 |
87 |
83 |
85 |
82 |
| 10 |
6.3 |
90 |
84 |
30 |
87 |
81 |
79 |
76 |
| 16 |
8.0 |
90 |
82 |
30 |
87 |
79 |
75 |
72 |
| 20 |
9.0 |
90 |
81 |
30 |
87 |
78 |
73 |
70 |
| 31.25 |
11.4 |
90 |
79 |
30 |
87 |
76 |
69 |
66 |
| 62.5 |
16.5 |
86 |
70 |
30 |
83 |
67 |
63 |
60 |
| 100 |
21.3 |
83 |
62 |
30 |
80 |
59 |
59 |
56 |
| 155.0 |
24.2 |
81 |
57 |
26 |
78 |
54 |
57 |
54 |
| 200.0 |
31.5 |
78 |
47 |
25 |
75 |
44 |
53 |
50 |
| 250 |
35.8 |
77 |
41 |
25 |
74 |
38 |
51 |
48 |
| 300.0 |
47.1 |
73 |
26 |
23 |
70 |
23 |
47 |
44 |
| 600.0 |
60.1 |
71 |
11 |
20 |
68 |
8 |
44 |
41 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation); |
| |
4×OD (fixed installed) |
| Temperature Range |
-40℃ ~ +85℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MLN-SF/UTPCAT5E4P24 |
4×2×24AWG |
0.29 |
0.6 |
6.4 |
47 |

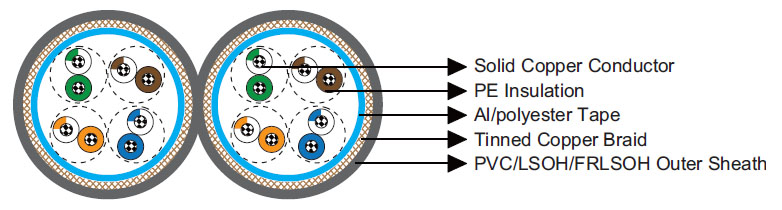

| MLN-SF/UTPCAT5E8P24 |
2×(4×2×24AWG) |
0.29 |
0.6 |
13.0×6.4 |
94 |
