Cat 6 U/FTP 23AWG
Applications
These Cat6 U/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.
Standards
- EN 50288
- ISO 11801
- IEC 61156-5
- IEC 60332-1
- IEC 60754-1/2
- IEC 61034

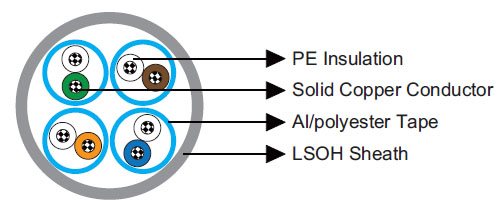

Construction
| Conductors |
Solid bare copper conductor. |
| Insulation |
PE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Individual Screen |
Al/polyester tape. |
| Outer Sheath |
LSOH. |
Core Identification
| Pair 1 |
White, Blue |
| Pair 2 |
White Orange |
| Pair 3 |
White, Green |
| Pair 4 |
White, Brown |
Electrical Properties
| Maximum Loop Resistance |
Ω/km |
145 |
| Maximum Resistance Unbalance |
|
2% |
| Minimum Insulation Resistance |
MΩ.km |
1000 |
| Nominal Capacitance @800Hz |
nF/km |
45 |
| Maximum Capacitance Unbalance (pair to ground) |
pF/km |
800 |
| Characteristic Impedance @1-100MHz |
Ω |
100 ±5 |
| Nominal Velocity of Propagation |
|
0.75c |
| Maximum Propagation Delay |
ns/100 m |
500 |
| Maximum Delay Skew |
ns/100 m |
20 |
| Maximum Transfer Impedance @1MHz |
mΩ/m |
50 |
| Maximum Transfer Impedance @10MHz |
mΩ/m |
100 |
| Maximum Transfer Impedance @30MHz |
mΩ/m |
200 |
| Minimum Coupling Attenuation |
dB |
55 |
Nominal Transmission Characteristics @20℃
| F |
Attenuation |
NEXT |
PS-NEXT |
ACR |
PS-ACR |
ELFEXT |
PS-ELFEXT |
Return Loss |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB |
| 1 |
2.0 |
90 |
87 |
88 |
85 |
85 |
82 |
|
| 4 |
3.6 |
90 |
87 |
86 |
83 |
85 |
82 |
27 |
| 10 |
5.7 |
90 |
87 |
84 |
81 |
79 |
76 |
30 |
| 16 |
7.2 |
90 |
87 |
83 |
80 |
75 |
72 |
30 |
| 20 |
8.1 |
90 |
87 |
82 |
79 |
73 |
70 |
30 |
| 31.25 |
10.2 |
90 |
87 |
80 |
77 |
69 |
66 |
30 |
| 62.50 |
14.7 |
90 |
87 |
75 |
72 |
63 |
60 |
30 |
| 100 |
18.9 |
90 |
87 |
71 |
68 |
59 |
56 |
30 |
| 155 |
24.0 |
88 |
85 |
64 |
61 |
55 |
52 |
26 |
| 200 |
27.0 |
88 |
85 |
61 |
58 |
53 |
50 |
25 |
| 250 |
31.4 |
86 |
83 |
55 |
52 |
51 |
48 |
25 |
| 300 |
34.8 |
86 |
83 |
51 |
48 |
49 |
46 |
23 |
| 400 |
38.1 |
86 |
83 |
48 |
45 |
44 |
41 |
23 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation); |
| |
4×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +60℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MLN-U/FTPCAT64P23 |
4×2×23AWG |
0.23 |
0.63 |
7.5 |
61 |
