MFX400 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Multicore)
Applications
These cables are used for fixed installations on ships and offshore units in all locations and on open deck. The good screening qualities of the copper braid also reduce radio interference and electrical influencMFes to electronics installations. These cables are flame retardant, low smoke & halogen free.
Standards
- IEC 60092-350/351/353/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

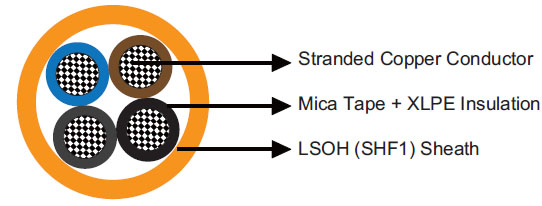

Construction
| Conductors |
Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request. |
| Insulation |
Mica tape + XLPE. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Two cores |
Black, Blue. |
| Three cores |
Brown, Black, Grey. |
| Four cores |
Blue, Brown, Black, Grey. |
| Five cores |
Blue, Brown, Black, Grey, Black. |
| Multi cores |
White with black numbers. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD(OD>25mm) |
| |
4×OD (OD ≤25mm) |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
MFX400 1mRZ1-R Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
| Part No. |
Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MFX400-1mRZ1-R-2C1.5 |
2×1.5 |
0.7 |
1.1 |
8.5 |
85 |
| MFX400-1mRZ1-R-2C2.5 |
2×2.5 |
0.7 |
1.1 |
9.5 |
110 |
| MFX400-1mRZ1-R-2C4 |
2×4 |
0.7 |
1.1 |
11.3 |
140 |
| MFX400-1mRZ1-R-2C6 |
2×6 |
0.7 |
1.2 |
12.6 |
230 |
| MFX400-1mRZ1-R-2C10 |
2×10 |
0.7 |
1.2 |
14.3 |
330 |
| MFX400-1mRZ1-R-2C16 |
2×16 |
0.7 |
1.3 |
16.6 |
490 |
| MFX400-1mRZ1-R-2C25 |
2×25 |
0.9 |
1.3 |
19.5 |
750 |
| MFX400-1mRZ1-R-2C35 |
2×35 |
0.9 |
1.5 |
22.0 |
990 |
| MFX400-1mRZ1-R-2C50 |
2×50 |
1.0 |
1.5 |
24.8 |
1340 |
| MFX400-1mRZ1-R-3C1.5 |
3×1.5 |
0.7 |
1.1 |
9.5 |
105 |
| MFX400-1mRZ1-R-3C2.5 |
3×2.5 |
0.7 |
1.1 |
10.0 |
145 |
| MFX400-1mRZ1-R-3C4 |
3×4 |
0.7 |
1.2 |
12.3 |
205 |
| MFX400-1mRZ1-R-3C6 |
3×6 |
0.7 |
1.2 |
13.5 |
270 |
| MFX400-1mRZ1-R-3C10 |
3×10 |
0.7 |
1.3 |
15.5 |
400 |
| MFX400-1mRZ1-R-3C16 |
3×16 |
0.7 |
1.3 |
18.0 |
610 |
| MFX400-1mRZ1-R-3C25 |
3×25 |
0.9 |
1.5 |
21.4 |
920 |
| MFX400-1mRZ1-R-3C35 |
3×35 |
0.9 |
1.6 |
24.2 |
1330 |
| MFX400-1mRZ1-R-3C50 |
3×50 |
1.0 |
1.7 |
27.5 |
1830 |
| MFX400-1mRZ1-R-3C70 |
3×70 |
1.1 |
1.8 |
32.0 |
2570 |
| MFX400-1mRZ1-R-3C70S |
3×70 (sector shaped) |
1.1 |
1.8 |
27.5 |
2370 |
| MFX400-1mRZ1-R-3C95 |
3×95 |
1.1 |
1.9 |
36.4 |
3360 |
| MFX400-1mRZ1-R-3C95S |
3×95 (sector shaped) |
1.1 |
1.9 |
31.1 |
3130 |
| MFX400-1mRZ1-R-3C120 |
3×120 |
1.2 |
2.1 |
40.7 |
4180 |
| MFX400-1mRZ1-R-3C120S |
3×120 (sector shaped) |
1.2 |
2.1 |
34.4 |
3930 |
| MFX400-1mRZ1-R-4C1.5 |
4×1.5 |
0.7 |
1.1 |
10.0 |
135 |
| MFX400-1mRZ1-R-4C2.5 |
4×2.5 |
0.7 |
1.1 |
11.2 |
180 |
| MFX400-1mRZ1-R-4C4 |
4×4 |
0.7 |
1.2 |
13.5 |
260 |
| MFX400-1mRZ1-R-4C6 |
4×6 |
0.7 |
1.2 |
14.8 |
350 |
| MFX400-1mRZ1-R-4C10 |
4×10 |
0.7 |
1.3 |
17.0 |
530 |
| MFX400-1mRZ1-R-4C16 |
4×16 |
0.7 |
1.4 |
19.8 |
800 |
| MFX400-1mRZ1-R-4C25 |
4×25 |
0.9 |
1.5 |
23.5 |
1230 |
| MFX400-1mRZ1-R-4C35 |
4×35 |
0.9 |
1.7 |
26.7 |
1650 |
| MFX400-1mRZ1-R-5C1.5 |
5×1.5 |
0.7 |
1.1 |
11.0 |
170 |
| MFX400-1mRZ1-R-7C1.5 |
7×1.5 |
0.7 |
1.2 |
12.6 |
210 |
| MFX400-1mRZ1-R-12C1.5 |
12×1.5 |
0.7 |
1.3 |
16.5 |
350 |
| MFX400-1mRZ1-R-19C1.5 |
19×1.5 |
0.7 |
1.4 |
19.6 |
520 |
| MFX400-1mRZ1-R-27C1.5 |
27×1.5 |
0.7 |
1.5 |
23.3 |
730 |
| MFX400-1mRZ1-R-37C1.5 |
37×1.5 |
0.7 |
1.6 |
26.3 |
980 |
| MFX400-1mRZ1-R-5C2.5 |
5×2.5 |
0.7 |
1.2 |
12.5 |
240 |
| MFX400-1mRZ1-R-7C2.5 |
7×2.5 |
0.7 |
1.2 |
14.1 |
300 |
| MFX400-1mRZ1-R-12C2.5 |
12×2.5 |
0.7 |
1.3 |
18.6 |
490 |
| MFX400-1mRZ1-R-19C2.5 |
19×2.5 |
0.7 |
1.4 |
22.1 |
750 |
| MFX400-1mRZ1-R-27C2.5 |
27×2.5 |
0.7 |
1.5 |
26.4 |
1060 |
