MRE-2X(St)HCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

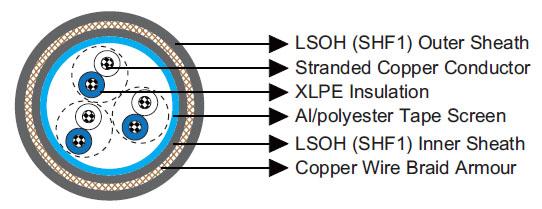

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
XLPE. |
| Cabling Element |
Pair/Triple. |
| Overall Screen |
Al/polyester tape |
| Inner Sheath |
LSOH (SHF1). |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number. |
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter |
Nominal Weight |
| (mm^2) |
mm |
Inner |
Outer |
mm |
kg/km |
| MRE-2X(St)HCH-1P0.75 |
1×2×0.75 |
0.5 |
1.0 |
0.8 |
10.3 |
150 |
| MRE-2X(St)HCH-2P0.75 |
2×2×0.75* |
0.5 |
1.0 |
0.8 |
11.2 |
190 |
| MRE-2X(St)HCH-3P0.75 |
3×2×0.75 |
0.5 |
1.1 |
0.9 |
14.2 |
270 |
| MRE-2X(St)HCH-4P0.75 |
4×2×0.75 |
0.5 |
1.2 |
0.9 |
15.1 |
310 |
| MRE-2X(St)HCH-7P0.75 |
7×2×0.75 |
0.5 |
1.2 |
1.0 |
17.3 |
410 |
| MRE-2X(St)HCH-8P0.75 |
8×2×0.75 |
0.5 |
1.3 |
1.0 |
18.4 |
460 |
| MRE-2X(St)HCH-10P0.75 |
10×2×0.75 |
0.5 |
1.4 |
1.1 |
20.5 |
550 |
| MRE-2X(St)HCH-12P07.5 |
12×2×0.75 |
0.5 |
1.4 |
1.1 |
21.2 |
600 |
| MRE-2X(St)HCH-14P0.75 |
14×2×0.75 |
0.5 |
1.4 |
1.1 |
21.9 |
650 |
| MRE-2X(St)HCH-16P0.75 |
16×2×0.75 |
0.5 |
1.5 |
1.1 |
23.4 |
730 |
| MRE-2X(St)HCH-19P0.75 |
19×2×0.75 |
0.5 |
1.5 |
1.1 |
24.3 |
810 |
| MRE-2X(St)HCH-24P0.75 |
24×2×0.75 |
0.5 |
1.6 |
1.2 |
27.3 |
980 |
| MRE-2X(St)HCH-30P0.75 |
30×2×0.75 |
0.5 |
1.7 |
1.3 |
30.3 |
1190 |
| MRE-2X(St)HCH-32P0.75 |
32×2×0.75 |
0.5 |
1.7 |
1.3 |
30.8 |
1240 |
| MRE-2X(St)HCH-37P0.75 |
37×2×0.75 |
0.5 |
1.8 |
1.3 |
32.3 |
1380 |
| MRE-2X(St)HCH-1P1.0 |
1×2×1.0 |
0.5 |
1.0 |
0.8 |
10.7 |
170 |
| MRE-2X(St)HCH-2P1.0 |
2×2×1.0* |
0.5 |
1.0 |
0.8 |
11.7 |
210 |
| MRE-2X(St)HCH-3P1.0 |
3×2×1.0 |
0.5 |
1.2 |
0.9 |
15.2 |
310 |
| MRE-2X(St)HCH-4P1.0 |
4×2×1.0 |
0.5 |
1.2 |
0.9 |
15.9 |
350 |
| MRE-2X(St)HCH-7P1.0 |
7×2×1.0 |
0.5 |
1.3 |
1.0 |
18.5 |
480 |
| MRE-2X(St)HCH-8P1.0 |
8×2×1.0 |
0.5 |
1.3 |
1.0 |
19.5 |
530 |
| MRE-2X(St)HCH-10P1.0 |
10×2×1.0 |
0.5 |
1.4 |
1.1 |
21.8 |
630 |
| MRE-2X(St)HCH-12P1.0 |
12×2×1.0 |
0.5 |
1.4 |
1.1 |
22.5 |
700 |
| MRE-2X(St)HCH-14P1.0 |
14×2×1.0 |
0.5 |
1.5 |
1.1 |
23.4 |
770 |
| MRE-2X(St)HCH-16P1.0 |
16×2×1.0 |
0.5 |
1.5 |
1.2 |
25.1 |
860 |
| MRE-2X(St)HCH-19P1.0 |
19×2×1.0 |
0.5 |
1.6 |
1.2 |
26.2 |
970 |
| MRE-2X(St)HCH-24P1.0 |
24×2×1.0 |
0.5 |
1.7 |
1.3 |
29.5 |
1190 |
| MRE-2X(St)HCH-30P1.0 |
30×2×1.0 |
0.5 |
1.8 |
1.3 |
32.6 |
1430 |
| MRE-2X(St)HCH-32P1.0 |
32×2×1.0 |
0.5 |
1.8 |
1.4 |
33.3 |
1500 |
| MRE-2X(St)HCH-37P1.0 |
37×2×1.0 |
0.5 |
1.9 |
1.4 |
35.3 |
1750 |
| MRE-2X(St)HCH-1P1.5 |
1×2×1.5 |
0.7 |
1.1 |
1.2 |
11.7 |
200 |
| MRE-2X(St)HCH-2P1.5 |
2×2×1.5* |
0.7 |
1.1 |
1.2 |
13.1 |
270 |
| MRE-2X(St)HCH-3P1.5 |
3×2×1.5 |
0.7 |
1.2 |
1.2 |
17.0 |
380 |
| MRE-2X(St)HCH-4P1.5 |
4×2×1.5 |
0.7 |
1.3 |
1.2 |
18.1 |
450 |
| MRE-2X(St)HCH-7P1.5 |
7×2×1.5 |
0.7 |
1.4 |
1.2 |
21.4 |
640 |
| MRE-2X(St)HCH-8P1.5 |
8×2×1.5 |
0.7 |
1.4 |
1.2 |
22.6 |
700 |
| MRE-2X(St)HCH-10P1.5 |
10×2×1.5 |
0.7 |
1.5 |
1.2 |
25.3 |
840 |
| MRE-2X(St)HCH-12P1.5 |
12×2×1.5 |
0.7 |
1.6 |
1.2 |
26.4 |
940 |
| MRE-2X(St)HCH-14P1.5 |
14×2×1.5 |
0.7 |
1.6 |
1.2 |
27.2 |
1030 |
| MRE-2X(St)HCH-16P1.5 |
16×2×1.5 |
0.7 |
1.7 |
1.3 |
29.4 |
1170 |
| MRE-2X(St)HCH-19P1.5 |
19×2×1.5 |
0.7 |
1.7 |
1.3 |
30.5 |
1310 |
| MRE-2X(St)HCH-24P1.5 |
24×2×1.5 |
0.7 |
1.9 |
1.4 |
35.0 |
1700 |
| MRE-2X(St)HCH-30P1.5 |
30×2×1.5 |
0.7 |
2.0 |
1.5 |
38.9 |
2050 |
| MRE-2X(St)HCH-32P1.5 |
32×2×1.5 |
0.7 |
2.0 |
1.5 |
39.5 |
2140 |
| MRE-2X(St)HCH-37P1.5 |
37×2×1.5 |
0.7 |
2.1 |
1.6 |
41.6 |
2410 |
| MRE-2X(St)HCH-1T0.75 |
1×3×0.75 |
0.5 |
1.0 |
0.8 |
10.6 |
170 |
| MRE-2X(St)HCH-2T0.75 |
2×3×0.75 |
0.5 |
1.1 |
0.9 |
14.4 |
280 |
| MRE-2X(St)HCH-3T0.75 |
3×3×0.75 |
0.5 |
1.2 |
0.9 |
15.2 |
320 |
| MRE-2X(St)HCH-4T0.75 |
4×3×0.75 |
0.5 |
1.2 |
1.0 |
16.3 |
380 |
| MRE-2X(St)HCH-7T0.75 |
7×3×0.75 |
0.5 |
1.3 |
1.0 |
19.6 |
540 |
| MRE-2X(St)HCH-8T0.75 |
8×3×0.75 |
0.5 |
1.4 |
1.1 |
21.1 |
610 |
| MRE-2X(St)HCH-10T0.75 |
10×3×0.75 |
0.5 |
1.5 |
1.1 |
23.5 |
720 |
| MRE-2X(St)HCH-12T07.5 |
12×3×0.75 |
0.5 |
1.5 |
1.2 |
24.7 |
810 |
| MRE-2X(St)HCH-14T0.75 |
14×3×0.75 |
0.5 |
1.5 |
1.2 |
25.6 |
890 |
| MRE-2X(St)HCH-16T0.75 |
16×3×0.75 |
0.5 |
1.6 |
1.2 |
27.1 |
990 |
| MRE-2X(St)HCH-19T0.75 |
19×3×0.75 |
0.5 |
1.7 |
1.3 |
29.3 |
1150 |
| MRE-2X(St)HCH-24T0.75 |
24×3×0.75 |
0.5 |
1.8 |
1.3 |
32.1 |
1370 |
| MRE-2X(St)HCH-30T0.75 |
30×3×0.75 |
0.5 |
1.9 |
1.4 |
35.7 |
1730 |
| MRE-2X(St)HCH-32T0.75 |
32×3×0.75 |
0.5 |
1.9 |
1.4 |
36.8 |
1820 |
| MRE-2X(St)HCH-37T0.75 |
37×3×0.75 |
0.5 |
2.0 |
1.5 |
38.7 |
2040 |
| MRE-2X(St)HCH-1T1.0 |
1×3×1.0 |
0.5 |
1.0 |
0.8 |
11.1 |
190 |
| MRE-2X(St)HCH-2T1.0 |
2×3×1.0 |
0.5 |
1.2 |
0.9 |
15.5 |
320 |
| MRE-2X(St)HCH-3T1.0 |
3×3×1.0 |
0.5 |
1.2 |
1.0 |
16.2 |
370 |
| MRE-2X(St)HCH-4T1.0 |
4×3×1.0 |
0.5 |
1.3 |
1.0 |
17.6 |
440 |
| MRE-2X(St)HCH-7T1.0 |
7×3×1.0 |
0.5 |
1.4 |
1.1 |
21.4 |
650 |
| MRE-2X(St)HCH-8T1.0 |
8×3×1.0 |
0.5 |
1.4 |
1.1 |
22.6 |
710 |
| MRE-2X(St)HCH-10T1.0 |
10×3×1.0 |
0.5 |
1.5 |
1.2 |
25.4 |
860 |
| MRE-2X(St)HCH-12T1.0 |
12×3×1.0 |
0.5 |
1.6 |
1.2 |
26.8 |
970 |
| MRE-2X(St)HCH-14T1.0 |
14×3×1.0 |
0.5 |
1.6 |
1.2 |
27.8 |
1070 |
| MRE-2X(St)HCH-16T1.0 |
16×3×1.0 |
0.5 |
1.7 |
1.3 |
29.6 |
1200 |
| MRE-2X(St)HCH-19T1.0 |
19×3×1.0 |
0.5 |
1.8 |
1.3 |
31.8 |
1380 |
| MRE-2X(St)HCH-24T1.0 |
24×3×1.0 |
0.5 |
1.9 |
1.4 |
35.4 |
1750 |
| MRE-2X(St)HCH-30T1.0 |
30×3×1.0 |
0.5 |
2.0 |
1.5 |
39.0 |
2100 |
| MRE-2X(St)HCH-32T1.0 |
32×3×1.0 |
0.5 |
2.0 |
1.5 |
40.2 |
2210 |
| MRE-2X(St)HCH-37T1.0 |
37×3×1.0 |
0.5 |
2.1 |
1.6 |
42.3 |
2490 |
| MRE-2X(St)HCH-1T1.5 |
1×3×1.5 |
0.7 |
1.1 |
1.2 |
12.3 |
230 |
| MRE-2X(St)HCH-2T1.5 |
2×3×1.5 |
0.7 |
1.2 |
1.2 |
17.2 |
390 |
| MRE-2X(St)HCH-3T1.5 |
3×3×1.5 |
0.7 |
1.3 |
1.2 |
18.3 |
470 |
| MRE-2X(St)HCH-4T1.5 |
4×3×1.5 |
0.7 |
1.3 |
1.2 |
19.7 |
560 |
| MRE-2X(St)HCH-7T1.5 |
7×3×1.5 |
0.7 |
1.5 |
1.2 |
24.6 |
860 |
| MRE-2X(St)HCH-8T1.5 |
8×3×1.5 |
0.7 |
1.6 |
1.2 |
26.2 |
960 |
| MRE-2X(St)HCH-10T1.5 |
10×3×1.5 |
0.7 |
1.7 |
1.3 |
29.5 |
1150 |
| MRE-2X(St)HCH-12T1.5 |
12×3×1.5 |
0.7 |
1.7 |
1.3 |
30.9 |
1290 |
| MRE-2X(St)HCH-14T1.5 |
14×3×1.5 |
0.7 |
1.8 |
1.3 |
32.3 |
1450 |
| MRE-2X(St)HCH-16T1.5 |
16×3×1.5 |
0.7 |
1.8 |
1.4 |
34.2 |
1620 |
| MRE-2X(St)HCH-19T1.5 |
19×3×1.5 |
0.7 |
1.9 |
1.5 |
37.3 |
1950 |
| MRE-2X(St)HCH-24T1.5 |
24×3×1.5 |
0.7 |
2.1 |
1.5 |
41.1 |
2370 |
| MRE-2X(St)HCH-30T1.5 |
30×3×1.5 |
0.7 |
2.2 |
1.6 |
45.3 |
2860 |
| MRE-2X(St)HCH-32T1.5 |
32×3×1.5 |
0.7 |
2.3 |
1.7 |
47.1 |
3060 |
| MRE-2X(St)HCH-37T1.5 |
37×3×1.5 |
0.7 |
2.4 |
1.7 |
49.3 |
3420 |
*: 2 pairs are assembled as a quad.
