MRE-M2X(St)CH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened & Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

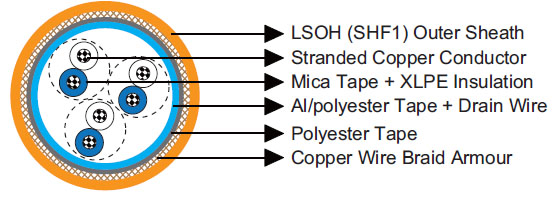

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
Mica tape + XLPE insulation. |
| Cabling Element |
Pair/Triple. |
| Overall Screen |
Al/polyester tape. |
| Drain Wire |
Tinned copper wire. |
| Inner Covering |
Lapped polyester tape. |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1).SHF2 can be offered upon request. |
Core Identification
| Pair |
White/blue with printed pair number and core number. |
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm^2 |
mm |
mm |
mm |
kg/km |
| MRE-M2X(St)CH-1P0.75 |
1×2×0.75 |
0.5 |
1.1 |
9.3 |
120 |
| MRE-M2X(St)CH-2P0.75 |
2×2×0.75* |
0.5 |
1.1 |
10.5 |
160 |
| MRE-M2X(St)CH-3P0.75 |
3×2×0.75 |
0.5 |
1.3 |
14.8 |
260 |
| MRE-M2X(St)CH-4P0.75 |
4×2×0.75 |
0.5 |
1.3 |
15.6 |
300 |
| MRE-M2X(St)CH-7P0.75 |
7×2×0.75 |
0.5 |
1.4 |
18.6 |
430 |
| MRE-M2X(St)CH-8P0.75 |
8×2×0.75 |
0.5 |
1.5 |
19.9 |
480 |
| MRE-M2X(St)CH-10P0.75 |
10×2×0.75 |
0.5 |
1.6 |
22.4 |
580 |
| MRE-M2X(St)CH-12P07.5 |
12×2×0.75 |
0.5 |
1.6 |
23.2 |
640 |
| MRE-M2X(St)CH-14P0.75 |
14×2×0.75 |
0.5 |
1.6 |
24.0 |
710 |
| MRE-M2X(St)CH-16P0.75 |
16×2×0.75 |
0.5 |
1.7 |
25.9 |
800 |
| MRE-M2X(St)CH-19P0.75 |
19×2×0.75 |
0.5 |
1.7 |
27.0 |
890 |
| MRE-M2X(St)CH-24P0.75 |
24×2×0.75 |
0.5 |
1.9 |
30.8 |
1110 |
| MRE-M2X(St)CH-30P0.75 |
30×2×0.75 |
0.5 |
2.0 |
34.4 |
1350 |
| MRE-M2X(St)CH-32P0.75 |
32×2×0.75 |
0.5 |
2.0 |
34.9 |
1410 |
| MRE-M2X(St)CH-37P0.75 |
37×2×0.75 |
0.5 |
2.1 |
37.3 |
1680 |
| MRE-M2X(St)CH-1P1.0 |
1×2×1.0 |
0.5 |
1.1 |
9.7 |
130 |
| MRE-M2X(St)CH-2P1.0 |
2×2×1.0* |
0.5 |
1.1 |
10.9 |
170 |
| MRE-M2X(St)CH-3P1.0 |
3×2×1.0 |
0.5 |
1.3 |
15.5 |
300 |
| MRE-M2X(St)CH-4P1.0 |
4×2×1.0 |
0.5 |
1.3 |
16.4 |
340 |
| MRE-M2X(St)CH-7P1.0 |
7×2×1.0 |
0.5 |
1.5 |
19.8 |
500 |
| MRE-M2X(St)CH-8P1.0 |
8×2×1.0 |
0.5 |
1.5 |
21.0 |
560 |
| MRE-M2X(St)CH-10P1.0 |
10×2×1.0 |
0.5 |
1.6 |
23.6 |
660 |
| MRE-M2X(St)CH-12P1.0 |
12×2×1.0 |
0.5 |
1.6 |
24.5 |
740 |
| MRE-M2X(St)CH-14P1.0 |
14×2×1.0 |
0.5 |
1.7 |
25.6 |
830 |
| MRE-M2X(St)CH-16P1.0 |
16×2×1.0 |
0.5 |
1.8 |
27.6 |
940 |
| MRE-M2X(St)CH-19P1.0 |
19×2×1.0 |
0.5 |
1.8 |
28.8 |
1060 |
| MRE-M2X(St)CH-24P1.0 |
24×2×1.0 |
0.5 |
1.9 |
32.6 |
1300 |
| MRE-M2X(St)CH-30P1.0 |
30×2×1.0 |
0.5 |
2.1 |
37.1 |
1690 |
| MRE-M2X(St)CH-32P1.0 |
32×2×1.0 |
0.5 |
2.1 |
37.7 |
1770 |
| MRE-M2X(St)CH-37P1.0 |
37×2×1.0 |
0.5 |
2.2 |
39.7 |
1990 |
| MRE-M2X(St)CH-1P1.5 |
1×2×1.5 |
0.6 |
1.1 |
10.5 |
150 |
| MRE-M2X(St)CH-2P1.5 |
2×2×1.5* |
0.6 |
1.2 |
12.1 |
220 |
| MRE-M2X(St)CH-3P1.5 |
3×2×1.5 |
0.6 |
1.4 |
17.2 |
360 |
| MRE-M2X(St)CH-4P1.5 |
4×2×1.5 |
0.6 |
1.4 |
18.2 |
420 |
| MRE-M2X(St)CH-7P1.5 |
7×2×1.5 |
0.6 |
1.5 |
21.8 |
620 |
| MRE-M2X(St)CH-8P1.5 |
8×2×1.5 |
0.6 |
1.6 |
23.4 |
700 |
| MRE-M2X(St)CH-10P1.5 |
10×2×1.5 |
0.6 |
1.7 |
26.3 |
840 |
| MRE-M2X(St)CH-12P1.5 |
12×2×1.5 |
0.6 |
1.7 |
27.3 |
940 |
| MRE-M2X(St)CH-14P1.5 |
14×2×1.5 |
0.6 |
1.8 |
28.5 |
1060 |
| MRE-M2X(St)CH-16P1.5 |
16×2×1.5 |
0.6 |
1.9 |
30.8 |
1200 |
| MRE-M2X(St)CH-19P1.5 |
19×2×1.5 |
0.6 |
1.9 |
32.1 |
1350 |
| MRE-M2X(St)CH-24P1.5 |
24×2×1.5 |
0.6 |
2.1 |
37.1 |
1780 |
| MRE-M2X(St)CH-30P1.5 |
30×2×1.5 |
0.6 |
2.3 |
41.6 |
2180 |
| MRE-M2X(St)CH-32P1.5 |
32×2×1.5 |
0.6 |
2.3 |
42.3 |
2280 |
| MRE-M2X(St)CH-37P1.5 |
37×2×1.5 |
0.6 |
2.4 |
44.5 |
2570 |
| MRE-M2X(St)CH-1T0.75 |
1×3×0.75 |
0.5 |
1.1 |
9.7 |
130 |
| MRE-M2X(St)CH-2T0.75 |
2×3×0.75 |
0.5 |
1.3 |
15.0 |
270 |
| MRE-M2X(St)CH-3T0.75 |
3×3×0.75 |
0.5 |
1.3 |
15.8 |
320 |
| MRE-M2X(St)CH-4T0.75 |
4×3×0.75 |
0.5 |
1.4 |
17.4 |
390 |
| MRE-M2X(St)CH-7T0.75 |
7×3×0.75 |
0.5 |
1.5 |
21.5 |
590 |
| MRE-M2X(St)CH-8T0.75 |
8×3×0.75 |
0.5 |
1.6 |
23.1 |
660 |
| MRE-M2X(St)CH-10T0.75 |
10×3×0.75 |
0.5 |
1.7 |
26.1 |
790 |
| MRE-M2X(St)CH-12T07.5 |
12×3×0.75 |
0.5 |
1.8 |
27.7 |
900 |
| MRE-M2X(St)CH-14T0.75 |
14×3×0.75 |
0.5 |
1.8 |
28.8 |
1000 |
| MRE-M2X(St)CH-16T0.75 |
16×3×0.75 |
0.5 |
1.9 |
30.7 |
1130 |
| MRE-M2X(St)CH-19T0.75 |
19×3×0.75 |
0.5 |
2.0 |
33.1 |
1300 |
| MRE-M2X(St)CH-24T0.75 |
24×3×0.75 |
0.5 |
2.1 |
37.1 |
1680 |
| MRE-M2X(St)CH-30T0.75 |
30×3×0.75 |
0.5 |
2.3 |
41.1 |
2040 |
| MRE-M2X(St)CH-32T0.75 |
32×3×0.75 |
0.5 |
2.3 |
42.5 |
2150 |
| MRE-M2X(St)CH-37T0.75 |
37×3×0.75 |
0.5 |
2.4 |
44.7 |
2420 |
| MRE-M2X(St)CH-1T1.0 |
1×3×1.0 |
0.5 |
1.1 |
10.2 |
150 |
| MRE-M2X(St)CH-2T1.0 |
2×3×1.0 |
0.5 |
1.3 |
15.9 |
310 |
| MRE-M2X(St)CH-3T1.0 |
3×3×1.0 |
0.5 |
1.4 |
17.0 |
380 |
| MRE-M2X(St)CH-4T1.0 |
4×3×1.0 |
0.5 |
1.4 |
18.5 |
450 |
| MRE-M2X(St)CH-7T1.0 |
7×3×1.0 |
0.5 |
1.6 |
23.1 |
690 |
| MRE-M2X(St)CH-8T1.0 |
8×3×1.0 |
0.5 |
1.6 |
24.6 |
770 |
| MRE-M2X(St)CH-10T1.0 |
10×3×1.0 |
0.5 |
1.8 |
28.0 |
930 |
| MRE-M2X(St)CH-12T1.0 |
12×3×1.0 |
0.5 |
1.8 |
29.5 |
1050 |
| MRE-M2X(St)CH-14T1.0 |
14×3×1.0 |
0.5 |
1.9 |
30.9 |
1190 |
| MRE-M2X(St)CH-16T1.0 |
16×3×1.0 |
0.5 |
1.9 |
32.7 |
1320 |
| MRE-M2X(St)CH-19T1.0 |
19×3×1.0 |
0.5 |
2.0 |
35.4 |
1530 |
| MRE-M2X(St)CH-24T1.0 |
24×3×1.0 |
0.5 |
2.2 |
39.9 |
1990 |
| MRE-M2X(St)CH-30T1.0 |
30×3×1.0 |
0.5 |
2.4 |
44.2 |
2420 |
| MRE-M2X(St)CH-32T1.0 |
32×3×1.0 |
0.5 |
2.4 |
45.7 |
2560 |
| MRE-M2X(St)CH-37T1.0 |
37×3×1.0 |
0.5 |
2.5 |
48.0 |
2870 |
| MRE-M2X(St)CH-1T1.5 |
1×3×1.5 |
0.6 |
1.1 |
11.0 |
180 |
| MRE-M2X(St)CH-2T1.5 |
2×3×1.5 |
0.6 |
1.4 |
17.5 |
370 |
| MRE-M2X(St)CH-3T1.5 |
3×3×1.5 |
0.6 |
1.4 |
18.5 |
450 |
| MRE-M2X(St)CH-4T1.5 |
4×3×1.5 |
0.6 |
1.5 |
20.4 |
560 |
| MRE-M2X(St)CH-7T1.5 |
7×3×1.5 |
0.6 |
1.7 |
25.5 |
870 |
| MRE-M2X(St)CH-8T1.5 |
8×3×1.5 |
0.6 |
1.7 |
27.2 |
970 |
| MRE-M2X(St)CH-10T1.5 |
10×3×1.5 |
0.6 |
1.9 |
31.0 |
1170 |
| MRE-M2X(St)CH-12T1.5 |
12×3×1.5 |
0.6 |
1.9 |
32.7 |
1340 |
| MRE-M2X(St)CH-14T1.5 |
14×3×1.5 |
0.6 |
2.0 |
34.3 |
1510 |
| MRE-M2X(St)CH-16T1.5 |
16×3×1.5 |
0.6 |
2.1 |
37.0 |
1800 |
| MRE-M2X(St)CH-19T1.5 |
19×3×1.5 |
0.6 |
2.2 |
39.9 |
2080 |
| MRE-M2X(St)CH-24T1.5 |
24×3×1.5 |
0.6 |
2.4 |
44.4 |
2560 |
| MRE-M2X(St)CH-30T1.5 |
30×3×1.5 |
0.6 |
2.6 |
49.2 |
3110 |
| MRE-M2X(St)CH-32T1.5 |
32×3×1.5 |
0.6 |
2.6 |
50.9 |
3300 |
| MRE-M2X(St)CH-37T1.5 |
37×3×1.5 |
0.6 |
2.7 |
53.4 |
3710 |
*: 2 pairs are assembled as a quad.
