MRE-M2XH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Instrumentation & Control Cables (Multicore)

Applications

These cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards

  • IEC 60092-350/351/376/359
  • IEC 60331-21
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1/2
  • IEC 61034

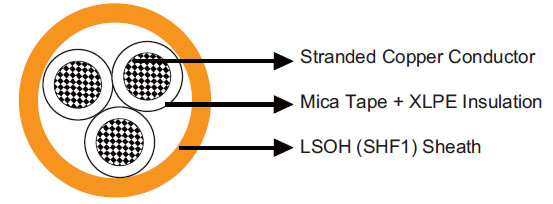

Construction

  MRE-M2XH 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Instrumentation & Control Cables (Multicore)
Conductors Class 2 stranded copper conductor.
Insulation Mica tape + XLPE.
Outer Sheath LSOH (SHF1).SHF2 can be offered upon request.

Core Identification

White with printed number.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 4×OD
Temperature Range -30℃ ~ +80℃

Dimensions and Weight

Part No. Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm^2 mm mm mm kg/km
MRE-M2XH-2C0.75 2×0.75 0.5 1.1 6.3 63
MRE-M2XH-4C0.75 4×0.75 0.5 1.2 6.7 84
