Mud Resistant Cat 5e S/FTP 0.22mm^2
Applications
These Cat5e S/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz. These cables have additional flame retardant, halogen-free, low smoke MUD protecting outer sheaths.
Standards
- EN 50173-1
- EN 50288-2-1
- ISO/IEC 11801
- IEC 61156-5
- IEC 60332-3-24
- IEC 60754-1/2
- IEC 61034-1/2

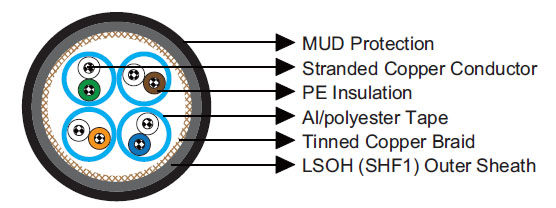

Construction
| Conductors |
Stranded copper conductor. |
| Insulation |
PE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Individual Screen |
Al/polyester tape. |
| Overall Screen |
Tinned copper wire braid. |
| Inner Sheath |
Oil resistant, flame retardant and halogen free LSOH (SHF1). |
| Outer Sheath |
MUD protecting. |
Core Identification
| Pair 1 |
White, Blue |
| Pair 2 |
White, Orange |
| Pair 3 |
White, Green |
| Pair 4 |
White, Brown |
Electrical Properties
| Maximum DC Loop Resistance |
Ω/km |
158 |
| Maximum Resistance Unbalance |
|
2% |
| Minimum Insulation Resistance (500V) |
MΩ.km |
5000 |
| Nominal Capacitance @800Hz |
nF/km |
43 |
| Maximum Capacitance Unbalance (pair to ground) |
pF/km |
1500 |
| Mean Characteristic Impedance @100MHz |
Ω |
100 ±5 |
| Nominal Velocity of Propagation |
|
0.75c |
| Maximum Propagation Delay |
ns/100 m |
450 |
| Maximum Delay Skew |
ns/100 m |
15 |
| Maximum Transfer Impedance @1MHz |
mΩ/m |
10 |
| Maximum Transfer Impedance @10MHz |
mΩ/m |
8 |
| Maximum Transfer Impedance @30MHz |
mΩ/m |
10 |
| Minimum Coupling Attenuation |
dB |
85 |
Nominal Transmission Characteristics @20℃
| F |
Attenuation |
NEXT |
PS-NEXT |
ACR |
PS-ACR |
ELFEXT |
PS-ELFEXT |
Return Loss |
| MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB |
| 1 |
1.9 |
71 |
68 |
69.1 |
66.1 |
68 |
65 |
20 |
| 4 |
3.7 |
62 |
59 |
58.3 |
55.3 |
56 |
53 |
23 |
| 10 |
6.0 |
56 |
53 |
50 |
47.0 |
48 |
45 |
25 |
| 16 |
7.6 |
53 |
50 |
45.4 |
42.4 |
44 |
41 |
25 |
| 20 |
8.5 |
51 |
48 |
42.5 |
39.5 |
42 |
39 |
25 |
| 31.2 |
10.7 |
49 |
46 |
38.3 |
35.3 |
38 |
35 |
24 |
| 62.5 |
15.7 |
44 |
41 |
28.2 |
25.3 |
32 |
29 |
22 |
| 100 |
19.8 |
41 |
38 |
21.2 |
18.2 |
28 |
25 |
20 |
| 125.0 |
22.3 |
40 |
37 |
17.7 |
14.7 |
26 |
23 |
19 |
| 155.5 |
24.2 |
38 |
35 |
13.8 |
10.8 |
24 |
21 |
|
| 175.0 |
25.7 |
37 |
34 |
11.3 |
8.3 |
23 |
20 |
|
| 200.0 |
27.5 |
36 |
33 |
8.5 |
5.5 |
22 |
19 |
|
| 250.0 |
29.2 |
35 |
32 |
5.8 |
2.8 |
20 |
17 |
|
| 300.0 |
32.0 |
34 |
31 |
2.0 |
-1.0 |
16 |
13 |
|
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation) |
| |
4×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +60℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter |
Nominal Weight |
| mm^2 |
mm |
Inner |
Outer |
mm |
kg/km |
| MLN-S/FTPCAT5EM4P22S |
4×2×0.22 |
0.4 |
0.75 |
0.9 |
9.5 |
100 |
