Cat5E UTP/FTP Armoured Data Cable

Applications

Cat5E Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

Standards

  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

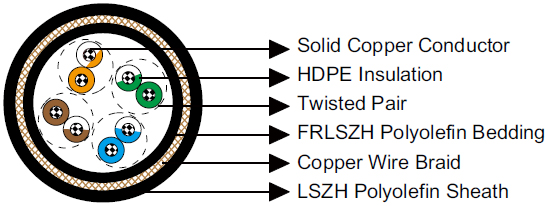

Construction

Cat5E UTP/FTP Armoured Data Cable Cat5E UTP/FTP Armoured Data Cable
Conductors 24AWG solid bare copper.
Insulation HDPE.
Twinning Two coloured insulated conductors twisted together to form a pair.
Bedding Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armour 0.2/0.3mm copper wire braid.
Outer Sheath Low smoke and halogen-free polyolefin.

Optional

Cat5E F/UTP These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat5E SF/UTP These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire.

Electrical Characteristics

AWG   24
Nominal Conductor Diameter mm 0.53
Maximum DC Resistant@20℃ Ω/100m 9.38
Maximum DCR Unbalance % 5
Maximum Mutual Capacitance pF/m 55.8
Maximum Capacitance Unbalance pF/100m 330
Characteristic Impedance@1-100MHz Ω 100+/-15
Maximum Propagation Delay Skew ns/100m 45
FREQ Maximum Attenuation Minimum NEXT Minimum PSNEXT Minimum ELFEXT Minimum PSELFEXT Minimum RL
MHz dB/100m dB dB dB/100m dB/100m dB
0.772 1.8 67.0 64.0 66.0 63.0
1 2.0 65.3 62.3 63.8 60.8 20.0
4 4.1 56.3 53.3 51.7 48.7 23.0
8 5.8 51.8 48.8 45.7 42.7 24.5
10 6.5 50.3 47.3 43.8 40.8 25.0
16 8.2 47.3 44.3 39.7 36.7 25.0
20 9.3 45.8 42.8 37.7 34.7 25.0
25 10.4 44.3 41.3 35.8 32.8 24.3
31.25 11.7 42.9 39.9 33.9 30.9 23.6
62.5 17.0 38.4 35.4 27.8 24.8 21.5
100 22.0 35.3 32.3 23.8 20.8 20.1

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  4×OD (fixed installed)
Temperature Range -30℃ ~ +75℃

Dimensions and Weight

Construction No. of elements×No. of cores in element×Conductor diameter Nominal Insulation Thickness Nominal Sheath Thickness (mm) Nominal Overall Diameter Nominal Weight
mm mm Inner Outer mm kg/km
4×2×0.53 0.2 0.8 1.14 10.1 179
