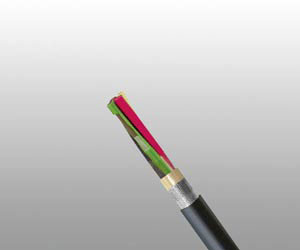

P1 or P1/P8 RFOU/TFOU 0.6/1KV

Applications

These cables are flame retardant, low smoke, halogen free and mud resistant, used for control, power and lighting systems.

Standards

  • IEC 60092-353
  • IEC 60092-351
  • IEC 60092-359
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

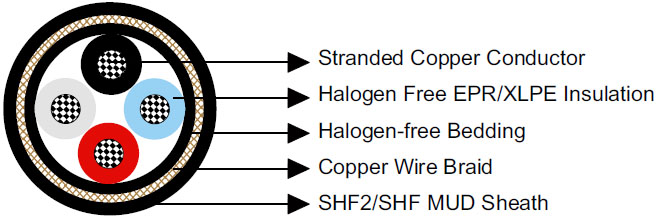

Construction

P1 or P1/P8 RFOU/TFOU 0.6/1KV P1 or P1/P8 RFOU/TFOU 0.6/1KV



Conductors Tinned annealed stranded copper to IEC 60228 class 2.
Insulation Halogen-free EPR. XLPE can be offered as an option (for TFOU cable)
Bedding Halogen free compound.
Armour Tinned copper wire braid.
Outer Sheath Halogen free thermosetting compound, SHF2 (for TYPE P1). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P1/P8), coloured black.

Electrical Characteristics

Nominal Cross Section Area mm^2 1.5 2.5 4 6 10 16 25 35 50 70
Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4.0 5.1 6.5 7.4 8.7 10.3
Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27
Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196 242
Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167 206
Continuous Current Rating@45℃ 3&4 Core A 16 21 28 36 50 67 89 110 137 169
Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 10020
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1



Nominal Cross Section Area mm^2 95 120 150 185 240 300 400 500 630
Nominal Conductor Diameter mm 12.2 13.8 15.1 17.0 19.6 21.9 24.6 27.6 32.5
Maximum DC Resistant@20℃ Ω/km 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
Continuous Current Rating@45℃1 Core A 293 339 389 444 522 601 690 780 890
Continuous Current Rating@45℃2 Core A 249 288 331 444 444 511 587 663 757
Continuous Current Rating@45℃3&4 Core A 205 237 272 311 365 421 483 546 623
Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930 57230 71540 90140
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN I1 / N 3 = ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  6×OD (fixed installed)
Temperature Range -20℃ ~ +90℃

Dimensions and Weight

Construction No. of cores×Cross section(mm^2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
Inner Outer
1×1.5 1.0 1.1 1.1 8.9 135
1×2.5 1.0 1.1 1.1 9.3 150
1×4 1.0 1.1 1.1 9.9 180
1×6 1.0 1.1 1.1 10.4 205
1×10 1.0 1.1 1.2 12.2 295
1×16 1.0 1.1 1.2 13.5 385
1×25 1.2 1.1 1.2 15.4 525
1×35 1.2 1.1 1.3 16.9 685
1×50 1.4 1.1 1.4 18.7 870
1×70 1.4 1.1 1.4 20.4 1105
1×95 1.6 1.1 1.5 22.8 1435
1×120 1.6 1.2 1.6 24.9 1745
1×150 1.8 1.2 1.6 26.8 2055
1×185 2.0 1.2 1.7 29.3 2560
1×240 2.2 1.2 1.8 32.5 3190
1×300 2.4 1.2 1.9 35.2 3935
1×400 2.4 1.4 2.1 40.5 5060
1×500 2.4 1.4 2.2 44.0 6180
1×630 2.4 1.4 2.3 48.0 7620
2×1.5 1.0 1.1 1.2 13.6 295
2×2.5 1.0 1.1 1.2 14.4 335
2×4 1.0 1.1 1.3 16.1 445
2×6 1.0 1.1 1.3 17.1 520
2×10 1.0 1.1 1.4 19.3 680
2×16 1.0 1.1 1.5 21.7 955
2×25 1.2 1.2 1.6 25.9 1335
2×35 1.2 1.2 1.7 27.9 1595
2×50 1.4 1.2 1.9 31.9 2250
2×70 1.4 1.2 2.1 35.8 2795
2×95 1.6 1.2 2.3 41.2 3780
2×120 1.6 1.4 2.4 44.8 4560
2×150 1.8 1.4 2.6 49.2 5500
2×185 2.0 1.4 2.7 53.8 6675
2×240 2.2 1.6 3.0 61.0 8605
2×300 2.4 1.6 3.2 67.0 10510
3×1.5 1.0 1.1 1.2 14.2 320
3×2.5 1.0 1.1 1.3 15.6 415
3×4 1.0 1.1 1.3 16.8 500
3×6 1.0 1.1 1.4 18.1 605
3×10 1.0 1.1 1.4 20.3 795
3×16 1.0 1.1 1.5 22.8 1125
3×25 1.2 1.2 1.6 27.5 1620
3×35 1.2 1.2 1.7 29.6 1955
3×50 1.4 1.2 1.9 33.9 2730
3×70 1.4 1.4 2.0 38.4 3655
3×95 1.6 1.4 2.2 43.8 4885
3×120 1.6 1.4 2.3 47.6 6000
3×150 1.8 1.6 2.5 52.4 7300
3×185 2.0 1.6 2.7 58.6 8960
3×240 2.2 1.8 2.9 66.1 11610
3×300 2.2 1.8 3.4 71.9 13490
4×1.5 1.0 1.1 1.3 15.7 350
4×2.5 1.0 1.1 1.3 16.6 425
4×4 1.0 1.1 1.4 18.1 590
4×6 1.0 1.1 1.4 19.5 725
4×10 1.0 1.1 1.5 22.1 955
4×16 1.0 1.2 1.6 25.2 1375
4×25 1.2 1.2 1.7 30.0 1965
4×35 1.2 1.2 1.8 32.4 2410
4×50 1.4 1.4 2.0 37.3 3365
4×70 1.4 1.4 2.2 42.1 4580
4×95 1.6 1.4 2.4 48.2 6020
4×120 1.6 1.6 2.5 52.7 7440
4×150 1.8 1.6 2.9 58.3 8800
4×185 2.0 1.6 3.1 64.0 10760
4×240 2.2 1.8 3.4 72.4 13890
4×300 2.4 1.8 3.7 79.8 17405
5×1.5 1.0 1.1 1.3 16.7 420
6×1.5 1.0 1.1 1.3 17.8 495
7×1.5 1.0 1.1 1.3 17.8 540
8×1.5 1.0 1.1 1.5 20.3 645
9×1.5 1.0 1.1 1.5 21.5 675
10×1.5 1.0 1.1 1.5 21.8 705
12×1.5 1.0 1.1 1.5 22.5 805
14×1.5 1.0 1.1 1.6 23.6 860
16×1.5 1.0 1.1 1.7 24.9 940
19×1.5 1.0 1.1 1.7 26.0 1100
20×1.5 1.0 1.1 1.7 27.2 1130
23×1.5 1.0 1.1 1.8 29.3 1285
24×1.5 1.0 1.1 1.8 30.0 1305
27×1.5 1.0 1.1 1.9 30.8 1460
30×1.5 1.0 1.1 1.9 31.8 1520
33×1.5 1.0 1.2 2.0 33.5 1670
37×1.5 1.0 1.2 2.0 34.6 1840
44×1.5 1.0 1.2 2.2 39.2 2210
5×2.5 1.0 1.1 1.4 18.0 555
6×2.5 1.0 1.1 1.4 19.2 590
7×2.5 1.0 1.1 1.4 19.2 655
8×2.5 1.0 1.1 1.5 21.8 775
9×2.5 1.0 1.1 1.6 23.3 785
10×2.5 1.0 1.1 1.6 23.6 865
12×2.5 1.0 1.1 1.6 24.5 955
14×2.5 1.0 1.1 1.7 25.5 1070
16×2.5 1.0 1.1 1.7 26.7 1155
19×2.5 1.0 1.1 1.8 28.2 1360
20×2.5 1.0 1.1 1.8 29.5 1410
23×2.5 1.0 1.1 1.9 31.8 1610
24×2.5 1.0 1.2 2.0 33.2 1690
27×2.5 1.0 1.2 2.0 33.9 1815
30×2.5 1.0 1.2 2.0 34.9 1960
33×2.5 1.0 1.2 2.1 36.7 2190
37×2.5 1.0 1.2 2.1 38.0 2370
44×2.5 1.0 1.2 2.3 42.6 2795

Note: For XLPE insulated cable, a thinner insulation thickness is applied.
