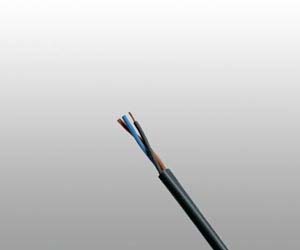

P18 RU 0.6/1kV

Applications

These cables are flame retardant, low smoke and halogen free, used for control, power and lighting systems.

Standards

  • IEC 60092-353
  • IEC 60092-351
  • IEC 60092-359
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

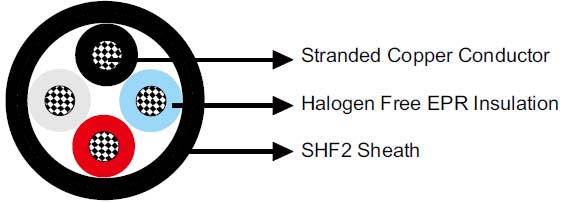

Construction

P18 RU 0.6/1kV P18 RU 0.6/1kV



Conductors Tinned annealed stranded copper to IEC 60228 class 2.
Insulation Halogen-free EPR.
Outer Sheath Halogen free thermosetting compound, SHF2, coloured black.

Electrical Characteristics

Nominal Cross Section Area mm^2 1.5 2.5 4 6 10 16 25 35
Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4
Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529
Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157
Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133
Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110
Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1



Nominal Cross Section Area mm^2 50 70 95 120 150 185 240 300
Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
Maximum DC Resistant@20℃ Ω/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
Continuous Current Rating@45℃1 Core A 196 242 293 339 389 444 522 601
Continuous Current Rating@45℃2 Core A 167 206 249 288 331 444 444 511
Continuous Current Rating@45℃3&4 Core A 137 169 205 237 272 311 365 421
Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN I1 / N 3 = ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  6×OD (fixed installed)
Temperature Range -20℃ ~ +90℃

Dimensions and Weight

Construction No. of cores×Cross section(mm^2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×1.5 1.0 1.0 6.0 60
1×2.5 1.0 1.0 6.5 80
1×4 1.0 1.0 7.1 110
1×6 1.0 1.0 7.6 130
1×10 1.0 1.1 8.5 165
1×16 1.0 1.1 9.8 235
1×25 1.2 1.2 11.7 355
1×35 1.2 1.2 12.8 455
1×50 1.4 1.3 14.4 595
1×70 1.4 1.4 16.3 805
1×95 1.6 1.5 18.7 1090
1×120 1.6 1.5 20.3 1345
1×150 1.8 1.6 22.4 1635
1×185 2.0 1.7 24.9 2075
1×240 2.2 1.8 28.1 2660
1×300 2.4 1.9 30.8 3340
2×1.5 1.0 1.1 9.7 145
2×2.5 1.0 1.1 10.5 175
2×4 1.0 1.2 11.6 225
2×6 1.0 1.2 12.9 295
2×10 1.0 1.3 14.8 420
2×16 1.0 1.4 17.2 605
2×25 1.2 1.5 21.3 940
2×35 1.2 1.6 23.3 1185
2×50 1.4 1.8 26.9 1585
2×70 1.4 1.9 31.9 2280
2×95 1.6 2.1 36.9 3090
2×120 1.6 2.2 40.3 3780
2×150 1.8 2.4 44.7 4640
2×185 2.0 2.6 49.5 5750
2×240 2.2 2.8 56.1 7460
2×300 2.4 3.0 62.0 9265
3×1.5 1.0 1.1 10.3 165
3×2.5 1.0 1.2 11.1 205
3×4 1.0 1.2 12.5 280
3×6 1.0 1.3 13.6 360
3×10 1.0 1.3 16.0 530
3×16 1.0 1.4 18.5 770
3×25 1.2 1.6 22.9 1200
3×35 1.2 1.7 25.0 1525
3×50 1.4 1.8 28.7 2030
3×70 1.4 2.0 32.6 2765
3×95 1.6 2.2 37.6 3745
3×120 1.6 2.3 41.2 4640
3×150 1.8 2.5 45.7 5675
3×185 2.0 2.7 51.2 7200
3×240 2.2 3.0 57.5 9300
3×300 2.4 3.2 66.8 12080
4×1.5 1.0 1.2 11.2 200
4×2.5 1.0 1.2 12.4 255
4×4 1.0 1.3 13.7 340
4×6 1.0 1.3 15.2 455
4×10 1.0 1.4 17.5 665
4×16 1.0 1.5 20.4 970
4×25 1.2 1.7 25.5 1530
4×35 1.2 1.8 27.8 1955
4×50 1.4 2.0 31.9 2600
4×70 1.4 2.1 36.3 3540
4×95 1.6 2.4 42.0 4815
4×120 1.6 2.5 46.0 5965
4×150 1.8 2.7 53.5 7720
4×185 2.0 2.9 59.2 9570
4×240 2.2 3.2 67.3 12480
4×300 2.4 3.5 74.6 15870
5×1.5 1.0 1.2 13.1 245
6×1.5 1.0 1.3 14.4 275
7×1.5 1.0 1.3 14.4 285
8×1.5 1.0 1.4 16.9 380
9×1.5 1.0 1.4 18.1 395
10×1.5 1.0 1.4 18.4 435
12×1.5 1.0 1.4 19.0 485
14×1.5 1.0 1.5 20.2 565
16×1.5 1.0 1.5 21.3 615
19×1.5 1.0 1.6 22.6 715
20×1.5 1.0 1.6 23.8 780
23×1.5 1.0 1.7 25.9 905
24×1.5 1.0 1.7 26.6 920
27×1.5 1.0 1.7 27.2 985
30×1.5 1.0 1.8 28.4 1110
33×1.5 1.0 1.8 29.5 1190
37×1.5 1.0 1.9 30.8 1315
44×1.5 1.0 2.0 34.8 1560
5×2.5 1.0 1.3 14.3 305
6×2.5 1.0 1.3 15.6 360
7×2.5 1.0 1.3 15.6 390
8×2.5 1.0 1.4 18.4 495
9×2.5 1.0 1.5 19.9 505
10×2.5 1.0 1.5 20.2 570
12×2.5 1.0 1.5 20.9 625
14×2.5 1.0 1.5 21.9 735
16×2.5 1.0 1.6 23.3 810
19×2.5 1.0 1.6 24.6 935
20×2.5 1.0 1.7 26.1 1035
23×2.5 1.0 1.8 28.4 1205
24×2.5 1.0 1.8 29.2 1220
27×2.5 1.0 1.8 29.9 1295
30×2.5 1.0 1.9 31.1 1475
33×2.5 1.0 1.9 32.3 1585
37×2.5 1.0 2.0 33.8 1730
44×2.5 1.0 2.2 38.4 2100
