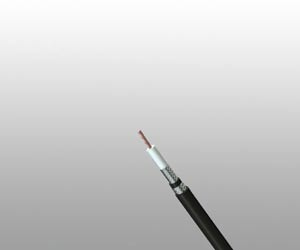

RG213 Armoured Coaxial Cable

Applications

These 50Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards

  • IEC 60092-350
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

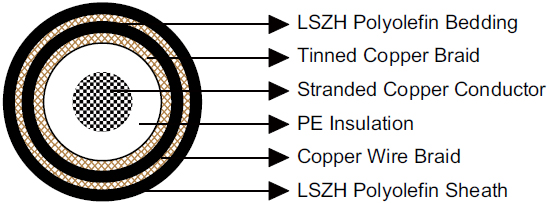

Construction

RG213 Armoured Coaxial Cable RG213 Armoured Coaxial Cable



Conductors 13AWG bare copper.
Insulation PE.
Shielding Copper braid.
Bedding Low smoke and halogen-free polyolefin, coloured black.
Armour Copper wire braid.
Outer Sheath Low smoke and halogen-free polyolefin.

Electrical Characteristics

AWG   13
Conductor Construction No./Diameter of Wires -/mm 7/0.75
Nominal Conductor Diameter mm 2.24
Impedance Ω 50+/-3
Nominal Attenuation@100MHz dB/100m 7.5
Nominal Attenuation@200MHz dB/100m 10.5
Nominal Attenuation@400MHz dB/100m 15.1
Nominal Attenuation@1000MHz dB/100m 29.5
Capacitance pF/m 101
Velocity of Propagation % 66
Conductor DCR Ω/km 5.7
Shield DCR Ω/km 3.9
Inductance μH/m 0.246
Time Delay ns/m 5.0

Mechanical and Thermal Properties

Bending Radius 15×OD
Temperature Range -30℃ ~ +75℃

Dimensions and Weight

Nominal Inner Conductor Diameter (mm) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
2.24 2.2 1.14 13.9 379
