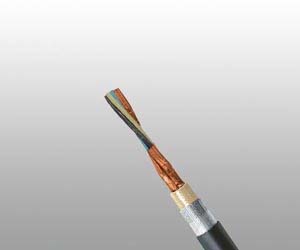

S1 or S1/S5 RFOU(i) 250V

Applications

These cables are flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

Standards

  • IEC 60092-353
  • IEC 60092-351
  • IEC 60092-359
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

Construction

S1 or S1/S5 RFOU(i) 250V S1 or S1/S5 RFOU(i) 250V



Conductors Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation Halogen free EPR compound.
Twinning Colour coded cores twisted together.
Individual Shielding Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Bedding Halogen free compound.
Armour Tinned copper wire braid.
Outer Sheath Halogen free thermosetting compound, SHF2 (for TYPE S1). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S1/S5), coloured grey (blue for intrinsically safe).

Electrical Characteristics

Nominal Cross Section Area mm^2 0.75 1.0 1.5 2.5
Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
Mutual Capacitance nF/km 90 100 110 120
Nominal Inductance@1KHz MH/km 0.686 0.649 0.637 0.598
Maximum L/R@1KHz μH/Ω 20 25 35 50
Operating Voltage V 250 250 250 250

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  6×OD (fixed installed)
Temperature Range -20℃ ~ +90℃

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section(mm^2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
Inner Outer
1×2×0.75 0.6 1.1 1.1 10.9 210
2×2×0.75 0.6 1.1 1.3 13.2 325
4×2×0.75 0.6 1.1 1.3 16.2 480
7×2×0.75 0.6 1.1 1.4 19.0 670
8×2×0.75 0.6 1.1 1.4 20.4 755
9×2×0.75 0.6 1.1 1.5 22.6 835
10×2×0.75 0.6 1.1 1.5 23.5 875
12×2×0.75 0.6 1.1 1.5 24.1 1010
14×2×0.75 0.6 1.1 1.6 25.3 1040
15×2×0.75 0.6 1.1 1.6 26.9 1120
16×2×0.75 0.6 1.1 1.6 27.3 1165
18×2×0.75 0.6 1.1 1.7 28.7 1270
19×2×0.75 0.6 1.1 1.7 29.0 1360
20×2×0.75 0.6 1.1 1.7 30.1 1420
21×2×0.75 0.6 1.1 1.8 31.0 1490
23×2×0.75 0.6 1.1 1.8 31.5 1595
24×2×0.75 0.6 1.2 1.8 33.4 1720
27×2×0.75 0.6 1.2 1.9 34.0 1770
30×2×0.75 0.6 1.2 1.9 35.1 1910
32×2×0.75 0.6 1.2 2.0 36.1 2060
33×2×0.75 0.6 1.2 2.0 36.9 2160
37×2×0.75 0.6 1.2 2.0 38.0 2330
1×3×0.75 0.6 1.1 1.2 11.3 225
2×3×0.75 0.6 1.1 1.3 16.4 490
3×3×0.75 0.6 1.1 1.4 17.2 520
4×3×0.75 0.6 1.1 1.4 18.5 610
5×3×0.75 0.6 1.1 1.5 19.8 720
6×3×0.75 0.6 1.1 1.5 21.7 835
7×3×0.75 0.6 1.1 1.5 21.7 870
8×3×0.75 0.6 1.1 1.6 23.5 950
9×3×0.75 0.6 1.1 1.6 24.6 1065
10×3×0.75 0.6 1.1 1.7 26.4 1095
12×3×0.75 0.6 1.1 1.7 27.3 1275
14×3×0.75 0.6 1.1 1.8 28.5 1320
15×3×0.75 0.6 1.1 1.8 29.3 1395
16×3×0.75 0.6 1.1 1.8 30.1 1465
18×3×0.75 0.6 1.1 1.9 31.6 1600
19×3×0.75 0.6 1.1 1.9 31.9 1655
20×3×0.75 0.6 1.2 2.0 33.2 1820
21×3×0.75 0.6 1.2 2.0 33.8 1890
23×3×0.75 0.6 1.2 2.0 35.1 2050
24×3×0.75 0.6 1.2 2.0 36.0 2220
27×3×0.75 0.6 1.2 2.1 37.9 2335
30×3×0.75 0.6 1.2 2.2 39.7 2555
32×3×0.75 0.6 1.2 2.2 40.7 2690
1×2×1.0 0.6 1.1 1.2 11.4 230
2×2×1.0 0.6 1.1 1.3 14.5 370
3×2×1.0 0.6 1.1 1.3 16.6 515
4×2×1.0 0.6 1.1 1.4 17.4 595
5×2×1.0 0.6 1.1 1.4 19.1 685
6×2×1.0 0.6 1.1 1.5 20.7 790
7×2×1.0 0.6 1.1 1.5 20.7 820
8×2×1.0 0.6 1.1 1.6 21.6 875
9×2×1.0 0.6 1.1 1.6 23.8 995
10×2×1.0 0.6 1.1 1.6 24.8 1010
12×2×1.0 0.6 1.1 1.7 25.6 1195
14×2×1.0 0.6 1.1 1.7 26.7 1210
15×2×1.0 0.6 1.1 1.8 28.5 1320
16×2×1.0 0.6 1.1 1.8 29.0 1375
18×2×1.0 0.6 1.1 1.9 30.5 1500
19×2×1.0 0.6 1.1 1.9 30.8 1555
20×2×1.0 0.6 1.1 1.9 31.9 1680
21×2×1.0 0.6 1.2 2.0 33.3 1790
23×2×1.0 0.6 1.2 2.0 33.7 1920
24×2×1.0 0.6 1.2 2.0 35.2 2015
27×2×1.0 0.6 1.2 2.1 36.5 2185
30×2×1.0 0.6 1.2 2.1 37.7 2365
33×2×1.0 0.6 1.2 2.2 39.2 2570
37×2×1.0 0.6 1.2 2.2 40.4 2775
1×3×1.0 0.6 1.1 1.2 11.8 250
2×3×1.0 0.6 1.1 1.4 17.3 555
3×3×1.0 0.6 1.1 1.4 17.9 590
4×3×1.0 0.6 1.1 1.4 19.4 700
5×3×1.0 0.6 1.1 1.5 20.7 825
6×3×1.0 0.6 1.1 1.6 23.0 975
7×3×1.0 0.6 1.1 1.6 23.0 990
8×3×1.0 0.6 1.1 1.6 24.4 1095
9×3×1.0 0.6 1.1 1.7 26.4 1245
10×3×1.0 0.6 1.1 1.8 28.0 1265
12×3×1.0 0.6 1.1 1.8 28.9 1500
14×3×1.0 0.6 1.1 1.8 30.0 1545
15×3×1.0 0.6 1.1 1.9 31.1 1655
16×3×1.0 0.6 1.1 1.9 31.8 1870
18×3×1.0 0.6 1.2 2.0 33.9 1935
19×3×1.0 0.6 1.2 2.0 34.2 2040
20×3×1.0 0.6 1.2 2.0 35.1 2150
21×3×1.0 0.6 1.2 2.1 35.9 2245
23×3×1.0 0.6 1.2 2.1 37.6 2525
24×3×1.0 0.6 1.2 2.1 38.7 2685
27×3×1.0 0.6 1.2 2.2 40.3 2785
30×3×1.0 0.6 1.2 2.3 42.1 3050
32×3×1.0 0.6 1.2 2.3 43.2 3215
1×2×1.5 0.7 1.1 1.2 12.4 270
2×2×1.5 0.7 1.1 1.4 15.8 495
3×2×1.5 0.7 1.1 1.4 17.9 640
4×2×1.5 0.7 1.1 1.5 19.5 715
5×2×1.5 0.7 1.1 1.5 21.5 850
6×2×1.5 0.7 1.1 1.6 23.3 990
7×2×1.5 0.7 1.1 1.6 23.3 1030
8×2×1.5 0.7 1.1 1.7 24.8 1130
9×2×1.5 0.7 1.1 1.7 26.9 1230
10×2×1.5 0.7 1.1 1.8 28.2 1270
12×2×1.5 0.7 1.1 1.8 29.3 1375
14×2×1.5 0.7 1.1 1.8 30.2 1520
15×2×1.5 0.7 1.2 1.9 32.7 1685
16×2×1.5 0.7 1.2 2.0 33.4 1775
18×2×1.5 0.7 1.2 2.0 35.0 1920
19×2×1.5 0.7 1.2 2.0 35.3 1990
20×2×1.5 0.7 1.2 2.1 37.2 2255
21×2×1.5 0.7 1.2 2.1 38.2 2345
23×2×1.5 0.7 1.2 2.2 39.0 2540
24×2×1.5 0.7 1.2 2.2 40.7 2610
27×2×1.5 0.7 1.2 2.3 41.7 2775
30×2×1.5 0.7 1.2 2.3 43.1 3005
33×2×1.5 0.7 1.4 2.4 45.1 3480
37×2×1.5 0.7 1.4 2.5 46.7 3600
1×3×1.5 0.7 1.1 1.2 13.0 300
2×3×1.5 0.7 1.1 1.4 17.5 510
3×3×1.5 0.7 1.1 1.5 20.1 740
4×3×1.5 0.7 1.1 1.5 21.8 870
5×3×1.5 0.7 1.1 1.6 23.3 1045
6×3×1.5 0.7 1.1 1.7 25.9 1230
7×3×1.5 0.7 1.1 1.7 26.0 1265
8×3×1.5 0.7 1.1 1.8 27.8 1405
9×3×1.5 0.7 1.1 1.8 29.5 1585
10×3×1.5 0.7 1.1 1.9 31.8 1680
12×3×1.5 0.7 1.2 2.0 33.1 1950
14×3×1.5 0.7 1.2 2.0 34.6 2020
15×3×1.5 0.7 1.2 2.0 35.6 2145
16×3×1.5 0.7 1.2 2.1 36.6 2450
18×3×1.5 0.7 1.2 2.2 39.2 2580
19×3×1.5 0.7 1.2 2.2 39.5 2675
20×3×1.5 0.7 1.2 2.2 40.5 2875
21×3×1.5 0.7 1.2 2.3 41.5 3000
23×3×1.5 0.7 1.2 2.3 43.0 3260
24×3×1.5 0.7 1.4 2.4 44.9 3310
27×3×1.5 0.7 1.4 2.4 46.4 3635
30×3×1.5 0.7 1.4 2.5 48.5 3980
32×3×1.5 0.7 1.4 2.6 50.0 4225
1×2×2.5 0.7 1.1 1.2 13.3 320
2×2×2.5 0.7 1.1 1.4 17.5 530
3×2×2.5 0.7 1.1 1.5 20.2 780
4×2×2.5 0.7 1.1 1.5 21.5 900
5×2×2.5 0.7 1.1 1.6 23.4 1060
6×2×2.5 0.7 1.1 1.7 25.4 1235
7×2×2.5 0.7 1.1 1.7 25.4 1290
8×2×2.5 0.7 1.1 1.7 27.5 1400
9×2×2.5 0.7 1.1 1.8 29.4 1495
10×2×2.5 0.7 1.1 1.9 30.9 1595
12×2×2.5 0.7 1.1 1.9 31.6 1755
14×2×2.5 0.7 1.2 2.0 33.6 1990
15×2×2.5 0.7 1.2 2.1 36.0 2165
16×2×2.5 0.7 1.2 2.1 36.9 2350
18×2×2.5 0.7 1.2 2.2 38.9 2565
19×2×2.5 0.7 1.2 2.2 39.3 2665
20×2×2.5 0.7 1.2 2.2 40.8 2880
21×2×2.5 0.7 1.2 2.3 42.1 3020
23×2×2.5 0.7 1.2 2.3 42.7 3255
24×2×2.5 0.7 1.4 2.4 45.2 3330
27×2×2.5 0.7 1.4 2.4 46.1 3615
30×2×2.5 0.7 1.4 2.5 47.8 3950
33×2×2.5 0.7 1.4 2.6 49.7 4300
37×2×2.5 0.7 1.4 2.6 51.2 4670
1×3×2.5 0.7 1.1 1.3 13.9 355
2×3×2.5 0.7 1.1 1.5 20.9 840
3×3×2.5 0.7 1.1 1.5 21.6 945
4×3×2.5 0.7 1.1 1.6 23.3 1115
5×3×2.5 0.7 1.1 1.7 25.4 1315
6×3×2.5 0.7 1.1 1.8 28.3 1555
7×3×2.5 0.7 1.1 1.8 28.3 1640
8×3×2.5 0.7 1.1 1.8 30.2 1780
9×3×2.5 0.7 1.2 1.9 32.6 2055
10×3×2.5 0.7 1.2 2.0 35.1 2080
12×3×2.5 0.7 1.2 2.1 36.8 2435
14×3×2.5 0.7 1.2 2.1 38.3 2700
15×3×2.5 0.7 1.2 2.2 39.7 2895
16×3×2.5 0.7 1.2 2.2 40.8 3050
18×3×2.5 0.7 1.2 2.3 42.9 3335
19×3×2.5 0.7 1.2 2.3 43.3 3470
20×3×2.5 0.7 1.4 2.4 44.9 3785
21×3×2.5 0.7 1.4 2.4 45.8 3935
23×3×2.5 0.7 1.4 2.5 47.7 4150
24×3×2.5 0.7 1.4 2.5 48.6 4300
27×3×2.5 0.7 1.4 2.6 51.1 4765
30×3×2.5 0.7 1.4 2.7 53.5 5235
32×3×2.5 0.7 1.6 2.8 55.5 5620
