S4 or S4/S8 BFOU(c) 250V

Applications

These cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

Standards

  • IEC 60092-353
  • IEC 60092-351
  • IEC 60092-359
  • IEC 60331-21
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

Construction

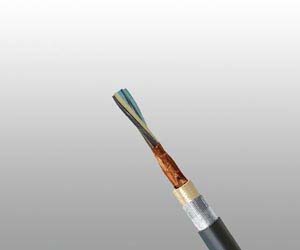

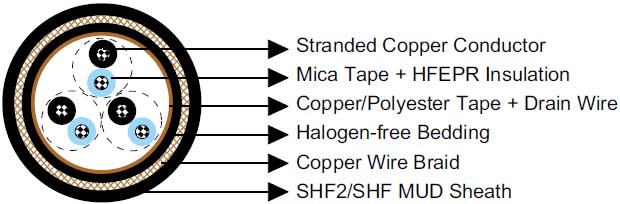

S4 or S4/S8 BFOU(c) 250V S4 or S4/S8 BFOU(c) 250V



Conductors Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation Mica tape + Halogen free EPR compound.
Twinning Colour coded cores twisted together.
Collective Shielding Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Bedding Halogen free compound.
Armour Tinned copper wire braid.
Outer Sheath Halogen free thermosetting compound, SHF2 (for TYPE S4). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S4/S8), coloured grey (blue for intrinsically safe).

Electrical Characteristics

Nominal Cross Section Area mm^2 0.75 1.0 1.5 2.5
Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
Mutual Capacitance nF/km 75 80 85 95
Nominal Inductance@1KHz MH/km 0.727 0.686 0.667 0.623
Maximum L/R@1KHz μH/Ω 20 25 35 55
Operating Voltage V 250 250 250 250

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  6×OD (fixed installed)
Temperature Range -20℃ ~ +90℃

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section(mm^2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
Inner Outer
1×2×0.75 0.6 1.1 1.2 12.1 230
2×2×0.75 0.6 1.1 1.3 16.4 340
3×2×0.75 0.6 1.1 1.4 17.2 495
4×2×0.75 0.6 1.1 1.4 18.2 555
5×2×0.75 0.6 1.1 1.5 19.8 640
6×2×0.75 0.6 1.1 1.5 21.2 725
7×2×0.75 0.6 1.1 1.5 21.2 740
8×2×0.75 0.6 1.1 1.6 23.1 805
9×2×0.75 0.6 1.1 1.6 24.3 880
10×2×0.75 0.6 1.1 1.7 25.6 900
12×2×0.75 0.6 1.1 1.7 26.2 950
14×2×0.75 0.6 1.1 1.7 27.3 1035
15×2×0.75 0.6 1.1 1.8 29.2 1130
16×2×0.75 0.6 1.1 1.8 29.7 1175
18×2×0.75 0.6 1.1 1.9 31.3 1275
19×2×0.75 0.6 1.1 1.9 31.6 1315
20×2×0.75 0.6 1.2 2.0 33.3 1475
21×2×0.75 0.6 1.2 2.0 34.1 1530
23×2×0.75 0.6 1.2 2.0 34.6 1635
24×2×0.75 0.6 1.2 2.1 36.8 1730
27×2×0.75 0.6 1.2 2.1 37.5 1850
30×2×0.75 0.6 1.2 2.2 38.9 1965
33×2×0.75 0.6 1.2 2.2 40.3 2155
37×2×0.75 0.6 1.2 2.3 41.7 2325
1×3×0.75 0.6 1.1 1.2 12.6 255
2×3×0.75 0.6 1.1 1.4 17.7 545
3×3×0.75 0.6 1.1 1.4 18.3 585
4×3×0.75 0.6 1.1 1.5 19.7 670
5×3×0.75 0.6 1.1 1.5 21.2 770
6×3×0.75 0.6 1.1 1.6 23.5 900
7×3×0.75 0.6 1.1 1.6 23.5 935
8×3×0.75 0.6 1.1 1.7 25.2 1015
9×3×0.75 0.6 1.1 1.7 26.7 1135
10×3×0.75 0.6 1.1 1.8 28.7 1140
12×3×0.75 0.6 1.1 1.8 29.6 1230
14×3×0.75 0.6 1.1 1.9 31.0 1375
15×3×0.75 0.6 1.1 1.9 31.9 1455
16×3×0.75 0.6 1.2 2.0 33.3 1545
18×3×0.75 0.6 1.2 2.0 34.8 1690
19×3×0.75 0.6 1.2 2.0 35.1 1750
20×3×0.75 0.6 1.2 2.1 36.6 1985
21×3×0.75 0.6 1.2 2.1 37.3 2055
23×3×0.75 0.6 1.2 2.2 38.8 2215
24×3×0.75 0.6 1.2 2.2 39.5 2245
27×3×0.75 0.6 1.2 2.3 41.5 2435
30×3×0.75 0.6 1.2 2.3 43.3 2645
32×3×0.75 0.6 1.4 2.4 44.9 2840
1×2×1.0 0.6 1.1 1.2 12.5 245
2×2×1.0 0.6 1.1 1.4 17.2 375
3×2×1.0 0.6 1.1 1.4 17.9 550
4×2×1.0 0.6 1.1 1.4 19.0 615
5×2×1.0 0.6 1.1 1.5 20.6 710
6×2×1.0 0.6 1.1 1.6 22.4 820
7×2×1.0 0.6 1.1 1.6 22.4 845
8×2×1.0 0.6 1.1 1.6 24.1 905
9×2×1.0 0.6 1.1 1.7 25.7 995
10×2×1.0 0.6 1.1 1.7 26.8 1035
12×2×1.0 0.6 1.1 1.7 27.4 1095
14×2×1.0 0.6 1.1 1.8 28.9 1195
15×2×1.0 0.6 1.1 1.9 30.9 1305
16×2×1.0 0.6 1.1 1.9 31.4 1355
18×2×1.0 0.6 1.2 2.0 33.4 1500
19×2×1.0 0.6 1.2 2.0 33.7 1550
20×2×1.0 0.6 1.2 2.0 35.0 1685
21×2×1.0 0.6 1.2 2.1 36.5 1850
23×2×1.0 0.6 1.2 2.1 37.0 1975
24×2×1.0 0.6 1.2 2.2 38.9 1990
27×2×1.0 0.6 1.2 2.2 39.6 2135
30×2×1.0 0.6 1.2 2.2 40.9 2300
33×2×1.0 0.6 1.2 2.3 42.5 2495
37×2×1.0 0.6 1.4 2.4 44.3 2735
1×3×1.0 0.6 1.1 1.2 13.0 280
2×3×1.0 0.6 1.1 1.4 18.0 550
3×3×1.0 0.6 1.1 1.4 18.7 600
4×3×1.0 0.6 1.1 1.5 20.0 690
5×3×1.0 0.6 1.1 1.6 22.4 880
6×3×1.0 0.6 1.1 1.6 24.6 1020
7×3×1.0 0.6 1.1 1.6 24.6 1060
8×3×1.0 0.6 1.1 1.7 26.4 1150
9×3×1.0 0.6 1.1 1.8 28.2 1305
10×3×1.0 0.6 1.1 1.8 30.2 1290
12×3×1.0 0.6 1.1 1.9 31.3 1435
14×3×1.0 0.6 1.2 1.9 32.9 1605
15×3×1.0 0.6 1.2 2.0 34.0 1720
16×3×1.0 0.6 1.2 2.0 35.0 1765
18×3×1.0 0.6 1.2 2.1 37.2 2050
19×3×1.0 0.6 1.2 2.1 37.5 2120
20×3×1.0 0.6 1.2 2.2 38.7 2300
21×3×1.0 0.6 1.2 2.2 39.4 2380
23×3×1.0 0.6 1.2 2.2 40.8 2515
24×3×1.0 0.6 1.2 2.3 41.7 2575
27×3×1.0 0.6 1.2 2.3 43.7 2815
30×3×1.0 0.6 1.4 2.4 46.1 3125
32×3×1.0 0.6 1.4 2.5 47.5 3310
1×2×1.5 0.7 1.1 1.3 14.3 335
2×2×1.5 0.7 1.1 1.5 20.5 740
3×2×1.5 0.7 1.1 1.5 21.2 805
4×2×1.5 0.7 1.1 1.6 22.9 945
5×2×1.5 0.7 1.1 1.6 24.8 1095
6×2×1.5 0.7 1.1 1.8 27.8 1300
7×2×1.5 0.7 1.1 1.8 27.8 1355
8×2×1.5 0.7 1.1 1.8 29.6 1455
9×2×1.5 0.7 1.1 1.9 31.7 1660
10×2×1.5 0.7 1.1 2.0 34.4 1680
12×2×1.5 0.7 1.1 2.0 35.5 1855
14×2×1.5 0.7 1.2 2.1 37.6 2150
15×2×1.5 0.7 1.2 2.2 38.9 2300
16×2×1.5 0.7 1.2 2.2 40.0 2415
18×2×1.5 0.7 1.2 2.3 42.0 2630
19×2×1.5 0.7 1.2 2.3 42.4 2725
20×2×1.5 0.7 1.2 2.3 43.5 2940
21×2×1.5 0.7 1.2 2.4 44.9 3110
23×2×1.5 0.7 1.2 2.5 46.7 3400
24×2×1.5 0.7 1.2 2.5 47.5 3360
27×2×1.5 0.7 1.4 2.6 50.0 3710
30×2×1.5 0.7 1.4 2.7 52.3 4060
32×2×1.5 0.7 1.4 2.7 53.8 4285
33×2×1.5 0.7 1.4 2.5 48.5 3245
37×2×1.5 0.7 1.4 2.6 50.2 3515
1×3×1.5 0.7 1.1 1.3 14.3 335
2×3×1.5 0.7 1.1 1.5 20.5 740
3×3×1.5 0.7 1.1 1.5 21.2 805
4×3×1.5 0.7 1.1 1.6 22.9 945
5×3×1.5 0.7 1.1 1.6 24.8 1095
6×3×1.5 0.7 1.1 1.8 27.8 1300
7×3×1.5 0.7 1.1 1.8 27.8 1355
8×3×1.5 0.7 1.1 1.8 29.6 1455
9×3×1.5 0.7 1.1 1.9 31.7 1660
10×3×1.5 0.7 1.2 2.0 34.4 1680
12×3×1.5 0.7 1.2 2.0 35.5 1855
14×3×1.5 0.7 1.2 2.1 37.6 2150
15×3×1.5 0.7 1.2 2.2 38.9 2300
16×3×1.5 0.7 1.2 2.2 40.0 2405
18×3×1.5 0.7 1.2 2.3 42.0 2630
19×3×1.5 0.7 1.2 2.3 42.4 2710
20×3×1.5 0.7 1.2 2.3 43.5 2940
21×3×1.5 0.7 1.4 2.4 44.9 3110
23×3×1.5 0.7 1.4 2.5 46.7 3400
24×3×1.5 0.7 1.4 2.5 47.5 3430
27×3×1.5 0.7 1.4 2.6 50.0 3710
30×3×1.5 0.7 1.4 2.7 52.3 4060
32×3×1.5 0.7 1.4 2.7 53.8 4285
1×2×2.5 0.7 1.1 1.3 14.5 335
2×2×2.5 0.7 1.1 1.5 20.4 740
3×2×2.5 0.7 1.1 1.5 21.3 800
4×2×2.5 0.7 1.1 1.6 22.8 930
5×2×2.5 0.7 1.1 1.6 24.7 1075
6×2×2.5 0.7 1.1 1.7 26.9 1245
7×2×2.5 0.7 1.1 1.7 26.9 1290
8×2×2.5 0.7 1.1 1.8 29.3 1405
9×2×2.5 0.7 1.1 1.9 31.3 1585
10×2×2.5 0.7 1.2 2.0 33.2 1605
12×2×2.5 0.7 1.2 2.0 34.0 1745
14×2×2.5 0.7 1.2 2.0 35.6 1920
15×2×2.5 0.7 1.2 2.2 38.8 2205
16×2×2.5 0.7 1.2 2.2 39.4 2230
18×2×2.5 0.7 1.2 2.3 41.5 2500
19×2×2.5 0.7 1.2 2.3 41.9 2590
20×2×2.5 0.7 1.2 2.3 43.5 2815
21×2×2.5 0.7 1.4 2.4 45.2 2990
23×2×2.5 0.7 1.4 2.4 45.8 3215
24×2×2.5 0.7 1.4 2.5 48.2 3270
27×2×2.5 0.7 1.4 2.6 49.4 3515
30×2×2.5 0.7 1.4 2.6 51.0 3810
33×2×2.5 0.7 1.4 2.7 53.1 4145
37×2×2.5 0.7 1.4 2.8 54.9 4500
1×3×2.5 0.7 1.1 1.3 15.1 385
2×3×2.5 0.7 1.1 1.5 22.0 880
3×3×2.5 0.7 1.1 1.6 23.0 990
4×3×2.5 0.7 1.1 1.6 24.6 1150
5×3×2.5 0.7 1.1 1.7 26.9 1350
6×3×2.5 0.7 1.1 1.8 30.0 1595
7×3×2.5 0.7 1.1 1.8 30.0 1670
8×3×2.5 0.7 1.1 1.9 32.2 1820
9×3×2.5 0.7 1.2 2.0 34.8 2105
10×3×2.5 0.7 1.2 2.1 37.9 2190
12×3×2.5 0.7 1.2 2.2 39.2 2455
14×3×2.5 0.7 1.2 2.2 40.9 2715
15×3×2.5 0.7 1.2 2.3 42.3 2905
16×3×2.5 0.7 1.2 2.3 43.5 3060
18×3×2.5 0.7 1.4 2.4 46.1 3380
19×3×2.5 0.7 1.4 2.5 46.7 3530
20×3×2.5 0.7 1.4 2.5 47.9 3800
21×3×2.5 0.7 1.4 2.5 48.9 3950
23×3×2.5 0.7 1.4 2.6 50.9 4290
24×3×2.5 0.7 1.4 2.6 51.8 4325
27×3×2.5 0.7 1.4 2.7 54.5 4745
30×3×2.5 0.7 1.6 2.9 57.7 5300
32×3×2.5 0.7 1.6 2.9 59.3 5595
