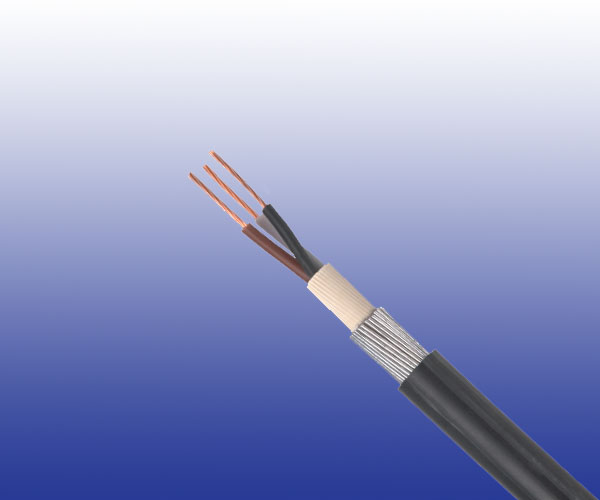

0.6/1KV Limited Fire Hazard/Fire Survival Multicore Armoured Cables to EME-SP-14-027
Application
The cables are designed for station range installation typically in public help points (PHP), public address (PA), station announcement platforms (SAP) & CCTV camera power systems. The LSZH cables has been designed to provide superior fl ame retardance and circuit integrity if necessary, suitable for installation where fire, smoke emission and toxi fumes may create a potential threat.
Standard
- EME SP 14 027 (LUL version of BS 6724 for fi re retardant version and BS 6387 for fire resisting version)
- UNE 21123

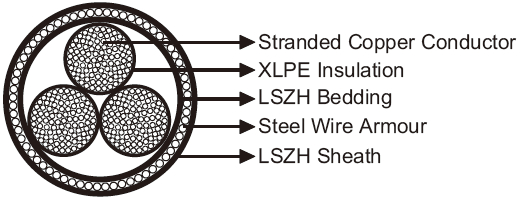

Cable Construction
 |
 |
| Conductors | Stranded plain copper conductors to IEC 60228 class 2 or 5. |
| Fire Barrier Tape (optional) | Mica. |
| Insulation | XLPE insulation. |
| Bedding | LSZH bedding. |
| Armoured | SWA. |
| Outer Sheath | LSZH Sheath. |
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section | mm^2 | 2.5 | 4.0 | 6.0 | 10.0 | 16.0 | 25.0 | 35.0 | 50.0 |
| Maximum DC Conductor Resistance | Ω/km | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 | 0.524 | 0.387 |
| Voltage Rating | KV | 0.45/0.75 | |||||||
| Nominal Conductor Cross Section | mm^2 | 70.0 | 95 | 120 | 150 | 185 | 240 | 300 |
| Maximum DC Conductor Resistance | Ω/km | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 | 0.0754 | 0.0601 |
| Voltage Rating | KV | 0.45/0.75 | ||||||
Mechanical and Thermal Properties
- Miniumum Bending Radius: 8×OD
- Operating Temperatures: 0℃ to +90℃ (during operation); 0℃ to +70℃ (during installation)
Dimensions and Weight
Cables without fire barrier tape
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area | No. & Nominal Diameter of Strands | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No.×mm^2 | No/mm | mm | mm | kg/km | |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G2.5 | 2×2.5* | 7/0.67 | 1.4 | 12.2 | 323 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G4 | 2×4.0* | 7/0.85 | 1.4 | 13.3 | 387 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G6 | 2×6.0* | 7/1.04 | 1.4 | 14.4 | 460 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G10 | 2×10.0* | 7/1.35 | 1.5 | 16.1 | 611 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G16 | 2×16.0* | 7/1.70 | 1.5 | 18.7 | 904 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G25 | 2×25.0 | 7/2.14 | 1.6 | 21.0 | 1050 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G35 | 2×35.0 | 19/1.53 | 1.7 | 22.0 | 1450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G50 | 2×50.0 | 19/1.78 | 1.8 | 24.0 | 1800 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G70 | 2×70.0 | 19/2.14 | 1.9 | 27.0 | 2300 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G95 | 2×95.0 | 37/1.78 | 2.0 | 32.0 | 3250 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G120 | 2×120.0 | 37/2.03 | 2.1 | 35.0 | 3950 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G150 | 2×150.0 | 37/2.25 | 2.2 | 38.0 | 4650 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G185 | 2×185.0 | 37/2.52 | 2.4 | 43.0 | 6050 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G240 | 2×240.0 | 61/2.25 | 2.5 | 49.0 | 7500 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G300 | 2×300.0 | 61/2.52 | 2.6 | 54.0 | 9050 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G2.5 | 3×2.5* | 7/0.67 | 1.4 | 12.1 | 335 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G4 | 3×4.0* | 7/0.85 | 1.4 | 13.3 | 430 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G6 | 3×6.0* | 7/1.04 | 1.4 | 14.4 | 523 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G10 | 3×10.0* | 7/1.35 | 1.5 | 17.0 | 811 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G16 | 3×16.0* | 7/1.70 | 1.6 | 19.3 | 1072 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G25 | 3×25.0 | 7/2.14 | 1.7 | 24.0 | 1750 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G35 | 3×35.0 | 19/1.53 | 1.8 | 27.0 | 2000 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G50 | 3×50.0 | 19/1.78 | 1.8 | 28.0 | 2450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G70 | 3×70.0 | 19/2.14 | 1.9 | 32.0 | 3250 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G95 | 3×95.0 | 37/1.78 | 2.1 | 36.0 | 4500 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G120 | 3×120.0 | 37/2.03 | 2.2 | 40.0 | 5350 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G150 | 3×150.0 | 37/2.25 | 2.3 | 44.0 | 6900 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G185 | 3×185.0 | 37/2.52 | 2.4 | 49.0 | 8200 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G240 | 3×240.0 | 61/2.25 | 2.6 | 56.0 | 10350 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G300 | 3×300.0 | 61/2.52 | 2.7 | 62.0 | 12600 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G2.5 | 4×2.5* | 7/0.67 | 1.4 | 13.6 | 406 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G4 | 4×4.0* | 7/0.85 | 1.4 | 14.9 | 505 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G6 | 4×6.0* | 7/1.04 | 1.5 | 17.1 | 737 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G10 | 4×10.0* | 7/1.35 | 1.5 | 18.9 | 969 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G16 | 4×16.0* | 7/1.70 | 1.6 | 21.5 | 1303 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G25 | 4×25.0 | 7/2.14 | 1.7 | 27.0 | 2100 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G35 | 4×35.0 | 19/1.53 | 1.8 | 29.0 | 2450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G50 | 4×50.0 | 19/1.78 | 1.9 | 32.0 | 3100 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G70 | 4×70.0 | 19/2.14 | 2.1 | 37.0 | 4400 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G95 | 4×95.0 | 37/1.78 | 2.2 | 41.0 | 5650 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G120 | 4×120.0 | 37/2.03 | 2.3 | 46.0 | 7300 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G150 | 4×150.0 | 37/2.25 | 2.4 | 51.0 | 8700 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G185 | 4×185.0 | 37/2.52 | 2.6 | 55.0 | 10450 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G240 | 4×240.0 | 61/2.25 | 2.7 | 63.0 | 13250 |
| RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G300 | 4×300.0 | 61/2.52 | 2.9 | 68.0 | 16100 |
*Circular conductors U is changed to K if the stranding class is changed from class 2 to class 5
Cables with fire barrier tape
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area | No. & Nominal Diameter of Strands | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| No.×mm^2 | No/mm | mm | mm | kg/km | |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G2.5 | 2×2.5 | 7/0.67 | 1.4 | 13.1 | 352 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G4 | 2×4.0 | 7/0.85 | 1.4 | 14.1 | 424 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G6 | 2×6.0 | 7/1.04 | 1.4 | 15.2 | 504 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G10 | 2×10.0 | 7/1.35 | 1.5 | 16.9 | 620 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G16 | 2×16.0 | 7/1.70 | 1.5 | 19.5 | 954 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G25 | 2×25.0 | 7/2.14 | 1.6 | 25.5 | 1330 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G35 | 2×35.0 | 19/1.53 | 1.7 | 29.1 | 1785 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G50 | 2×50.0 | 19/1.78 | 1.8 | 32.2 | 2165 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G70 | 2×70.0 | 19/2.14 | 1.9 | 28.8 | 2445 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G95 | 2×95.0 | 37/1.78 | 2.0 | 33.9 | 3385 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G120 | 2×120.0 | 37/2.03 | 2.1 | 37.2 | 4065 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G150 | 2×150.0 | 37/2.25 | 2.2 | 39.9 | 4745 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G185 | 2×185.0 | 37/2.52 | 2.4 | 45.0 | 6095 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G240 | 2×240.0 | 61/2.25 | 2.5 | 50.0 | 7575 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G300 | 2×300.0 | 61/2.52 | 2.6 | 55.0 | 9165 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G2.5 | 3×2.5 | 7/0.67 | 1.4 | 13.7 | 392 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G4 | 3×4.0 | 7/0.85 | 1.4 | 14.8 | 478 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G6 | 3×6.0 | 7/1.04 | 1.4 | 16.0 | 573 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G10 | 3×10.0 | 7/1.35 | 1.5 | 18.5 | 868 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G16 | 3×16.0 | 7/1.70 | 1.6 | 20.8 | 1136 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G25 | 3×25.0 | 7/2.14 | 1.7 | 27.6 | 1865 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G35 | 3×35.0 | 19/1.53 | 1.8 | 30.9 | 2235 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G50 | 3×50.0 | 19/1.78 | 1.8 | 33.9 | 2735 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G70 | 3×70.0 | 19/2.14 | 1.9 | 35.7 | 3355 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G95 | 3×95.0 | 37/1.78 | 2.1 | 38.2 | 4580 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G120 | 3×120.0 | 37/2.03 | 2.2 | 41.6 | 5505 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G150 | 3×150.0 | 37/2.25 | 2.3 | 47.0 | 6950 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G185 | 3×185.0 | 37/2.52 | 2.4 | 50.5 | 8295 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G240 | 3×240.0 | 61/2.25 | 2.6 | 57.2 | 10455 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G300 | 3×300.0 | 61/2.52 | 2.7 | 63.2 | 12660 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G2.5 | 4×2.5 | 7/0.67 | 1.4 | 14.7 | 454 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G4 | 4×4.0 | 7/0.85 | 1.4 | 16.0 | 556 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G6 | 4×6.0 | 7/1.04 | 1.5 | 18.2 | 783 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G10 | 4×10.0 | 7/1.35 | 1.5 | 20.0 | 1029 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G16 | 4×16.0 | 7/1.70 | 1.6 | 22.5 | 1367 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G25 | 4×25.0 | 7/2.14 | 1.7 | 29.9 | 2240 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G35 | 4×35.0 | 19/1.53 | 1.8 | 33.5 | 2705 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G50 | 4×50.0 | 19/1.78 | 1.9 | 37.1 | 3375 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G70 | 4×70.0 | 19/2.14 | 2.1 | 39.1 | 4560 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G95 | 4×95.0 | 37/1.78 | 2.2 | 43.0 | 5805 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G120 | 4×120.0 | 37/2.03 | 2.3 | 48.3 | 7430 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G150 | 4×150.0 | 37/2.25 | 2.4 | 52.4 | 8820 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G185 | 4×185.0 | 37/2.52 | 2.6 | 56.6 | 10600 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G240 | 4×240.0 | 61/2.25 | 2.7 | 64.3 | 13380 |
| RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G300 | 4×300.0 | 61/2.52 | 2.9 | 70.7 | 16255 |
U is changed to K if the stranding class is changed from class 2 to class 5
