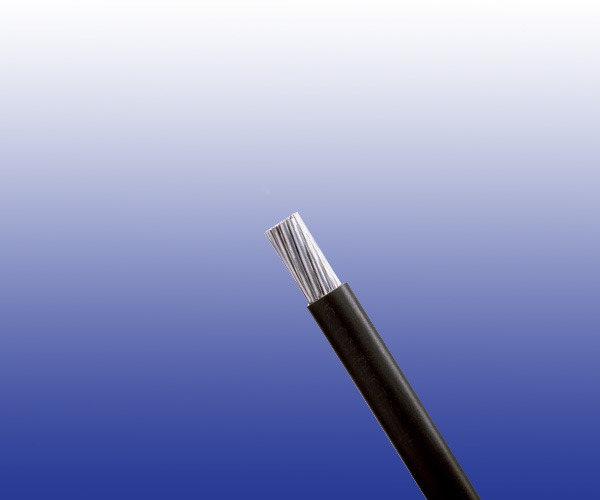

NSGAFOU Cables
Application
The cables are designed for use in switch cabinets, wiring of devices, trains and buses as well as in dry rooms.
Standard

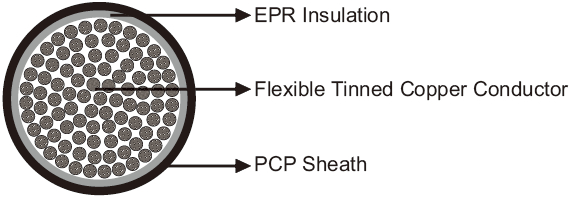

Cable Construction
| Conductors |
Flexible tinned copper to IEC 60228 class 5. |
| Insulation |
EPR type 3G13. |
| Outer sheath |
PCP type 5GM3. |
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section |
mm^2 |
1.5 |
2.5 |
4.0 |
6.0 |
10 |
16 |
25 |
35 |
| Conductor Resistance |
Ω/km |
13.7 |
8.21 |
5.09 |
3.39 |
1.95 |
1.24 |
0.795 |
0.565 |
| Current Rating |
A |
31 |
41 |
58 |
75 |
103 |
145 |
194 |
240 |
| Voltage Rating |
KV |
1.8/3 |
| Nominal Conductor Cross Section |
mm^2 |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
| Conductor Resistance |
Ω/km |
0.393 |
0.277 |
0.21 |
0.164 |
0.132 |
0.109 |
0.0817 |
| Current Rating |
A |
301 |
372 |
456 |
528 |
607 |
639 |
821 |
| Voltage Rating |
KV |
1.8/3 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 4×OD
- Temperature Range: -25℃ to +80℃ (during operation); -10℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code |
No. of cores& Nominal Conductor Cross Sectional Area |
No. & Nominal Diameter of Strands |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
No.×mm^2 |
No/mm |
mm |
mm |
kg/km |
| RF602-NSGAFOU-1G1.5 |
1×1.5 |
30/0.25 |
1.3 |
6.5 |
59 |
| RF602-NSGAFOU-1G2.5 |
1×2.5 |
50/0.25 |
1.3 |
6.8 |
74 |
| RF602-NSGAFOU-1G4 |
1×4.0 |
56/0.3 |
1.3 |
7.7 |
94 |
| RF602-NSGAFOU-1G6 |
1×6.0 |
84/0.3 |
1.3 |
8.3 |
118 |
| RF602-NSGAFOU-1G10 |
1×10.0 |
80/0.4 |
1.5 |
9.2 |
163 |
| RF602-NSGAFOU-1G16 |
1×16.0 |
126/0.4 |
1.5 |
10.1 |
220 |
| RF602-NSGAFOU-1G25 |
1×25.0 |
196/0.40 |
1.8 |
12.5 |
336 |
| RF602-NSGAFOU-1G35 |
1×35.0 |
276/0.40 |
1.8 |
14.0 |
470 |
| RF602-NSGAFOU-1G50 |
1×50.0 |
396/0.40 |
1.8 |
15.5 |
581 |
| RF602-NSGAFOU-1G70 |
1×70.0 |
360/0.50 |
1.8 |
17.0 |
772 |
| RF602-NSGAFOU-1G95 |
1×95.0 |
475/0.50 |
2.2 |
19.5 |
1030 |
| RF602-NSGAFOU-1G120 |
1×120.0 |
608/0.50 |
2.2 |
21.2 |
1280 |
| RF602-NSGAFOU-1G150 |
1×150.0 |
756/0.50 |
2.2 |
23.5 |
1650 |
| RF602-NSGAFOU-1G185 |
1×185.0 |
925/0.50 |
2.4 |
25.6 |
2050 |
| RF602-NSGAFOU-1G240 |
1×240.0 |
1221/0.50 |
2.6 |
27.3 |
2590 |
