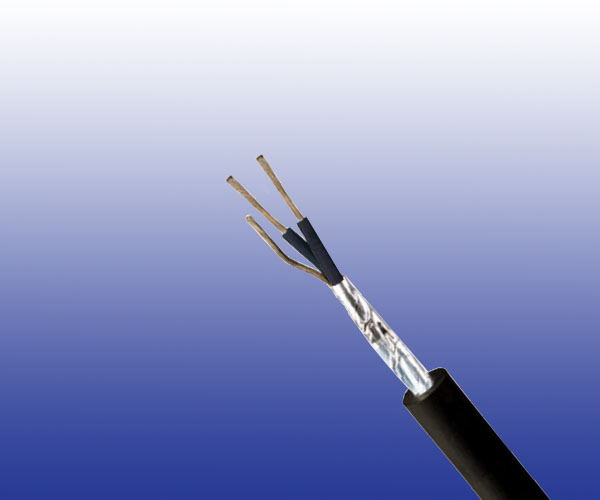

TYPE E3 Railway Signalling Cable
Application
The cables are designed for railway signalling systems. The cables are suitable for use in d.c. circuits where the nominal voltage to earth does not exceed 1100 volts and are suitable for installation in ducts.
Standard
- NR/PS/SIG/00005(formerly RT/E/PS/00005)

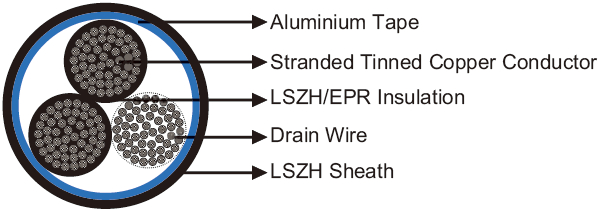

Cable Construction
| Conductors |
Tinned stranded copper, according to IEC 60228 class 2& BS 6360. |
| Insulation |
LSZH or EPR Type GP4 to BS 7655. |
| Screen |
Aluminium tape. |
| Drain Wire |
2.5 mm^2 fl exible tinned copper. |
| Sheath |
LSZH. |
Electrical Characteristics at 20℃
| Nominal Conductor Cross Section |
mm^2 |
2.5 |
| Maximum DC Conductor Resistance |
Ω/km |
8.21 |
| Minimum Noise Reduction |
dB |
60 |
| Voltage Rating |
KV |
0.65/1.1 |
| Nominal Insulation Thickness |
mm |
1.05 |
Mechanical and Thermal Properties
| Minimum Bending Radius |
6×OD (static); 15×OD (dynamic) |
| Temperature Range |
-25℃ to +85℃ (during operation); -10℃ to +85℃ (during installation) |
Dimensions and Weight
| Cable Code |
No. of cores& Nominal Conductor Cross Sectional Area |
No. & Nominal Diameter of Strands |
Nominal Sheath Thickness |
Overall Diameter Min/Max |
Nominal Weight |
| No.×mm^2 |
No/mm |
mm |
mm |
kg/km |
| Type E3 |
| RS/E3-3G(St)H-1P2.5S |
1 x 2 x 2.5 |
50/0.25 |
3.8 |
15.0/20.0 |
410 |
Routine test voltage: 2.5kV for 5 minutes
