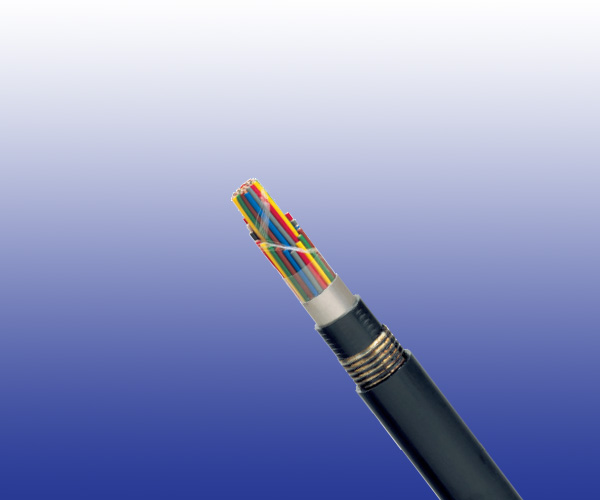

RT/F3 D & S & B type Axle Counter Cable
Application
The cables are designed for transmission of signals up to 90 kHz in axle counter train detection systems.
Standard

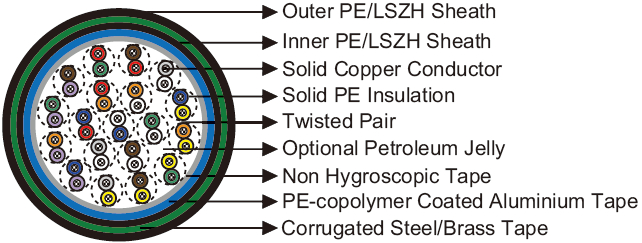

Cable Construction
Conductors |
Tinned copper, 0.9/1.4 mm nominal diameter. |
Insulation |
Solid polyethylene. |
Cabling Element |
Two insulated conductors are twisted together to form a pair. |
Stranding |
Pairs are helically stranded in concentric layers. |
Filling |
Cable core interstices are filled with a low-permitivity compound. Unfi lled cables option can be offered upon request. |
Core Wrapping |
Plastic tape(s) with overlapping. |
Moisture Barrier |
One laminated sheath made of aluminium tape coated with PE Copolymer on at least one side is applied with longitudinally overlap. |
Inner Sheath (for S/B type) |
Polyethylene or LSZH fi re retardant compound. |
Mechanical Protection (for S/B type) |
One corrugated steel tape or brass tape is longitudinally applied with overlap. Unarmoured cables option can be offered upon request. |
Outer Sheath |
Polyethylene or LSZH fi re retardant compound. Ruggedised PE sheath compound can be offered upon request. |
Type Codes
- F1 class: Non LSZH cables.
- F5 class: Unfi lled cables
- D type: Unarmoured types
- R type: Ruggedised PE sheath
- S type: Steel tape armoured types
- B type: Brass tape armoured types
- E1, E2 & E3 types: 3 different induction protection levels available.
Electrical Characteristics at 20℃
Nominal Conductor Diameter |
mm |
0.9 |
1.4 |
Nominal Conductor Cross Section |
mm^2 |
0.63 |
1.5 |
Maximum Conductor Resistance |
Ω/km |
30.0 |
12.5 |
Minimum Insulation Resistance @500 V DC (1min) |
MΩ.km |
5000 |
5000 |
Nominal Conductor Capacitance @800Hz/1000Hz (AC) |
nF/km |
42+3 |
47+3 |
Dielectric Strength, conductor to screen (DC voltage 2mins) |
V |
3000 |
3000 |
Maximum Average Attenuation |
|
|
|
@1.0KHz |
dB/km |
0.73 |
0.45 |
@2.4KHz |
dB/km |
1.10 |
0.62 |
@40KHz |
dB/km |
2.88 |
1.77 |
@90KHz |
dB/km |
3.70 |
2.41 |
@1.024MHz |
dB/km |
11.2 |
7.45 |
Minimum Average Near-end Crosstalk |
|
|
|
@1.0KHz |
dB/km |
60 |
60 |
@2.4KHz |
dB/km |
60 |
60 |
@40KHz |
dB/km |
50 |
50 |
@90KHz |
dB/km |
50 |
50 |
@1.024MHz |
dB/km |
35 |
35 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 7.5×OD (unarmoured); 10×OD (armoured)
- Temperature Range: -30℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

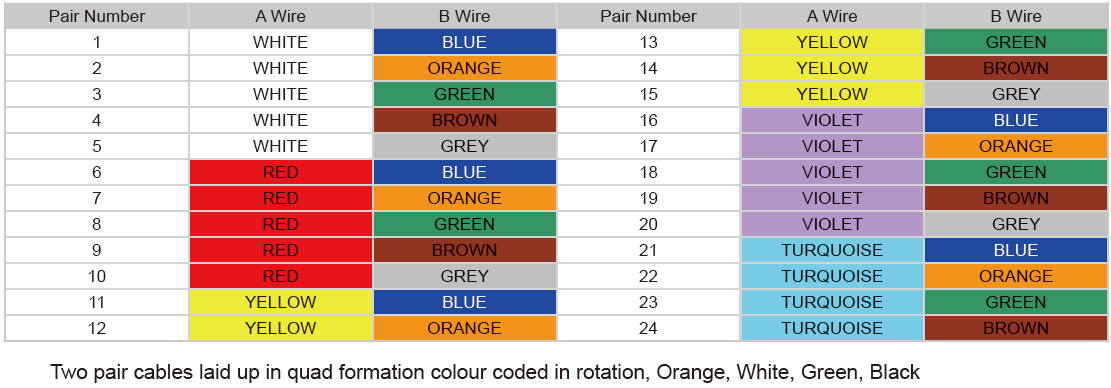

Core Identification
Dimensions and Weight
A-2Y(F)(L)2Y n×2×0.9/1.4 Cables
Cable Code |
Number of Pairs |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
|
(n) |
mm |
mm |
kg/km |
0.9mm Conductor, 1.55mm Insulated Wire |
RS/RT/F3-D-2Y(F)(L)2Y-2P0.9 |
2 |
2.4 |
13.2 |
210 |
RS/RT/F3-D-2Y(F)(L)2Y-10P0.9 |
10 |
2.4 |
21.6 |
530 |
RS/RT/F3-D-2Y(F)(L)2Y-12P0.9 |
12 |
2.4 |
24.8 |
580 |
RS/RT/F3-D-2Y(F)(L)2Y-19P0.9 |
19 |
2.4 |
31.2 |
800 |
RS/RT/F3-D-2Y(F)(L)2Y-24P0.9 |
24 |
2.4 |
33.8 |
980 |
1.4mm Conductor, 2.2mm Insulated Wire |
RS/RT/F3-D-2Y(F)(L)2Y-2P1.4 |
2 |
2.4 |
23.4 |
320 |
RS/RT/F3-D-2Y(F)(L)2Y-10P1.4 |
10 |
2.4 |
30.0 |
910 |
RS/RT/F3-D-2Y(F)(L)2Y-12P1.4 |
12 |
2.4 |
32.0 |
1101 |
RS/RT/F3-D-2Y(F)(L)2Y-19P1.4 |
19 |
2.4 |
37.3 |
1450 |
RS/RT/F3-D-2Y(F)(L)2Y-24P1.4 |
24 |
2.4 |
42.3 |
1780 |
A-2Y(L)2YB2Y n×2×0.9/1.4 Cables
Cable Code |
Number of Pairs |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
Inner |
Outer |
|
(n) |
mm |
mm |
mm |
kg/km |
0.9mm Conductor, 1.8mm Insulated Wire |
RS/RT/F3-S-2Y(L)2YB2Y-2P0.9 |
2 |
2.2 |
2.4 |
22.0 |
399 |
RS/RT/F3-S-2Y(L)2YB2Y-10P0.9 |
10 |
2.2 |
2.4 |
30.4 |
880 |
RS/RT/F3-S-2Y(L)2YB2Y-12P0.9 |
12 |
2.2 |
2.4 |
33.6 |
963 |
RS/RT/F3-S-2Y(L)2YB2Y-19P0.9 |
19 |
2.2 |
2.4 |
40.0 |
1312 |
RS/RT/F3-S-2Y(L)2YB2Y-24P0.9 |
24 |
2.2 |
2.4 |
42.6 |
1626 |
1.4mm Conductor , 2.7mm Insulated Wire |
RS/RT/F3-S-2Y(L)2YB2Y-2P1.4 |
2 |
2.2 |
2.4 |
32.2 |
608 |
RS/RT/F3-S-2Y(L)2YB2Y-10P1.4 |
10 |
2.2 |
2.4 |
38.8 |
1510 |
RS/RT/F3-S-2Y(L)2YB2Y-12P1.4 |
12 |
2.2 |
2.4 |
40.8 |
1827 |
RS/RT/F3-S-2Y(L)2YB2Y-19P1.4 |
19 |
2.2 |
2.4 |
46.1 |
2380 |
RS/RT/F3-S-2Y(L)2YB2Y-24P1.4 |
24 |
2.2 |
2.4 |
51.1 |
2954 |
