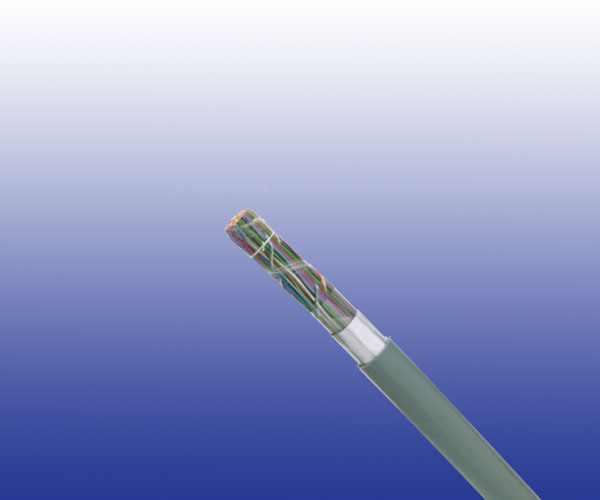

G7622 Trackside Communications Cables
Application
The cables are designed for installation in trackside bracket runs and for use within railway equipment rooms within open locations (type 1) or in subsurface tunnels and underground locations (type 2).
Standard
- LUL Spec G7622 A1 type 1 (for PVC sheath)
- LUL Spec G7622 A1 type 2 (for LSZH sheath)

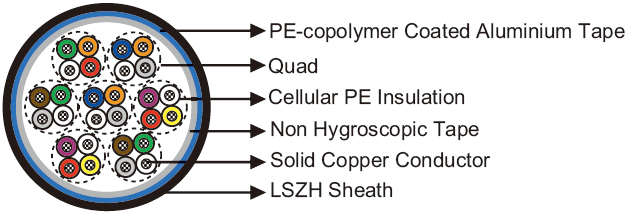

Cable Construction
| Conductors |
Solid plain copper, 0.63/0.9 mm nominal diameter. |
| Insulation |
Cellular polyethylene. |
| Cabling Element |
Four insulated conductors are twisted together to form a quad. |
| Stranding |
Conductors are helically stranded in concentric layers. |
| Core Wrapping |
Plastic tape (s) with overlapping. |
| Moisture Barrier |
One laminated sheath made of aluminium tape (0.15mm thick) coated with PE-Copolymer on at least one side is applied with longitudinally overlap. |
| Outer Sheath |
LSZH sheath, coloured violet. |
Optional
- Type 1 Cables: For type 1 cables, additional foil (at least one polyester tape) and PVC sheath are applied over the LSZH sheath. (VDE Code: A-02Y(L)HY)
- Armoured Cables: Corrugated steel tape armour is applied with an overlap over LSZH sheath. An outer LSZH sheath is applied over the armour. (VDE Code: A-02Y(L)H(SR)H)

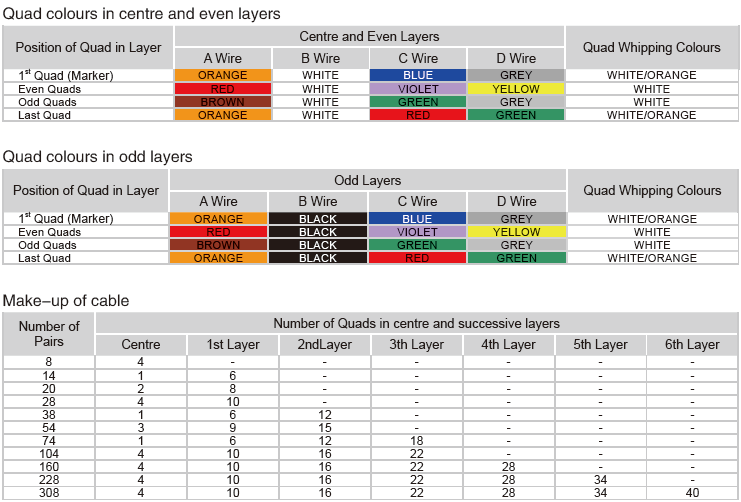

Core Identification
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
0.63 |
0.9 |
| Maximum Conductor Resistance |
|
|
|
| Average Value |
Ω/km |
57.5 |
28 |
| Individual Value |
Ω/km |
59 |
29 |
| Minimum Insulation Resistance @500 V DC |
MΩ.km |
1500 |
1500 |
| Maximum Average Mutual Capacitance |
nF/km |
59 |
59 |
| Maximum Average Capacitance Unbalance |
|
|
|
| Between pairs in same quad |
pF/460m |
50 |
50 |
| Between pairs (centre or in any layer) |
pF/460m |
30 |
30 |
| Between any pairs and earth |
pF/460m |
200 |
200 |
| Between phantom and pairs in same quad |
pF/460m |
300 |
300 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 7.5×OD (unarmoured); 10×OD (armoured)
- Temperature Range: -40℃ to +70℃ (during operation); -10℃ to +50℃ (during installation)
Dimensions and Weight
G7622 A1 Type 2 Cables
| Cable Code |
No. of pairs |
Minimum Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
|
mm |
mm |
kg/km |
| 0.63mm Conductor, 1.0mm Insulated Wire |
| RS7622A1/T2-02Y(L)H-8P0.63 |
8 |
2.5 |
14.5 |
190 |
| RS7622A1/T2-02Y(L)H-14P0.63 |
14 |
2.5 |
16.0 |
240 |
| RS7622A1/T2-02Y(L)H-20P0.63 |
20 |
2.5 |
17.5 |
310 |
| RS7622A1/T2-02Y(L)H-28P0.63 |
28 |
2.5 |
19.5 |
380 |
| RS7622A1/T2-02Y(L)H-38P0.63 |
38 |
2.5 |
21.5 |
470 |
| RS7622A1/T2-02Y(L)H-54P0.63 |
54 |
2.5 |
23.5 |
610 |
| RS7622A1/T2-02Y(L)H-74P0.63 |
74 |
2.5 |
25.5 |
780 |
| RS7622A1/T2-02Y(L)H-104P0.63 |
104 |
2.5 |
29.0 |
1020 |
| RS7622A1/T2-02Y(L)H-160P0.63 |
160 |
2.5 |
34.0 |
1498 |
| RS7622A1/T2-02Y(L)H-228P0.63 |
228 |
2.5 |
39.0 |
1993 |
| RS7622A1/T2-02Y(L)H-308P0.63 |
308 |
2.5 |
43.5 |
2670 |
| 0.9mm Conductor, 1.5mm Insulated Wire |
| RS7622A1/T2-02Y(L)H-8P0.9 |
8 |
2.5 |
17.5 |
280 |
| RS7622A1/T2-02Y(L)H-14P0.9 |
14 |
2.5 |
20.0 |
380 |
| RS7622A1/T2-02Y(L)H-20P0.9 |
20 |
2.5 |
22.5 |
500 |
| RS7622A1/T2-02Y(L)H-28P0.9 |
28 |
2.5 |
24.5 |
630 |
| RS7622A1/T2-02Y(L)H-38P0.9 |
38 |
2.5 |
25.5 |
790 |
| RS7622A1/T2-02Y(L)H-54P0.9 |
54 |
2.5 |
29.0 |
1060 |
| RS7622A1/T2-02Y(L)H-74P0.9 |
74 |
2.5 |
32.5 |
1370 |
| RS7622A1/T2-02Y(L)H-108P0.9 |
108 |
2.5 |
37.5 |
1830 |
G7622 A1 Type 1 Cables
| Cable Code |
No. of pairs |
Minimum Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| |
|
mm |
mm |
mm |
kg/km |
| 0.63mm Conductor, 1.0mm Insulated Wire |
| RS7622A1/T1-02Y(L)HY-8P0.63 |
8 |
2.5 |
3.0 |
20.5 |
330 |
| RS7622A1/T1-02Y(L)HY-14P0.63 |
14 |
2.5 |
3.0 |
22.0 |
390 |
| RS7622A1/T1-02Y(L)HY-20P0.63 |
20 |
2.5 |
3.0 |
23.5 |
480 |
| RS7622A1/T1-02Y(L)HY-28P0.63 |
28 |
2.5 |
3.0 |
25.5 |
560 |
| RS7622A1/T1-02Y(L)HY-38P0.63 |
38 |
2.5 |
3.0 |
27.5 |
660 |
| RS7622A1/T1-02Y(L)HY-54P0.63 |
54 |
2.5 |
3.0 |
29.5 |
830 |
| RS7622A1/T1-02Y(L)HY-74P0.63 |
74 |
2.5 |
3.0 |
31.5 |
1010 |
| RS7622A1/T1-02Y(L)HY-104P0.63 |
104 |
2.5 |
3.0 |
35.0 |
1290 |
| 0.9mm Conductor, 1.5mm Insulated Wire |
| RS7622A1/T1-02Y(L)HY-8P0.9 |
8 |
2.5 |
3.0 |
23.5 |
440 |
| RS7622A1/T1-02Y(L)HY-14P0.9 |
14 |
2.5 |
3.0 |
26.0 |
550 |
| RS7622A1/T1-02Y(L)HY-20P0.9 |
20 |
2.5 |
3.0 |
28.5 |
700 |
| RS7622A1/T1-02Y(L)HY-28P0.9 |
28 |
2.5 |
3.0 |
30.5 |
840 |
| RS7622A1/T1-02Y(L)HY-38P0.9 |
38 |
2.5 |
3.0 |
31.5 |
1020 |
| RS7622A1/T1-02Y(L)HY-54P0.9 |
54 |
2.5 |
3.0 |
35.0 |
1310 |
| RS7622A1/T1-02Y(L)HY-74P0.9 |
74 |
2.5 |
3.0 |
38.5 |
1650 |
| RS7622A1/T1-02Y(L)HY-104P0.9 |
104 |
2.5 |
3.0 |
43.5 |
2160 |
Armoured G7622 A1 Type 2 Cables
| Cable Code |
No. of pairs |
Minimum Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| |
|
mm |
mm |
mm |
kg/km |
| 0.63mm Conductor, 1.0mm Insulated Wire |
| RS7622A1/T2-02Y(L)H(SR)H-8P0.63 |
8 |
1.2 |
2.5 |
18.2 |
430 |
| RS7622A1/T2-02Y(L)H(SR)H-14P0.63 |
14 |
1.2 |
2.5 |
19.0 |
500 |
| RS7622A1/T2-02Y(L)H(SR)H-20P0.63 |
20 |
1.2 |
2.5 |
21.2 |
600 |
| RS7622A1/T2-02Y(L)H(SR)H-28P0.63 |
28 |
1.2 |
2.5 |
22.6 |
690 |
| RS7622A1/T2-02Y(L)H(SR)H-38P0.63 |
38 |
1.2 |
2.5 |
24.2 |
810 |
| RS7622A1/T2-02Y(L)H(SR)H-54P0.63 |
54 |
1.2 |
2.5 |
26.7 |
980 |
| RS7622A1/T2-02Y(L)H(SR)H-74P0.63 |
74 |
1.2 |
2.5 |
29.2 |
1190 |
| RS7622A1/T2-02Y(L)H(SR)H-104P0.63 |
104 |
1.2 |
2.5 |
32.6 |
1480 |
