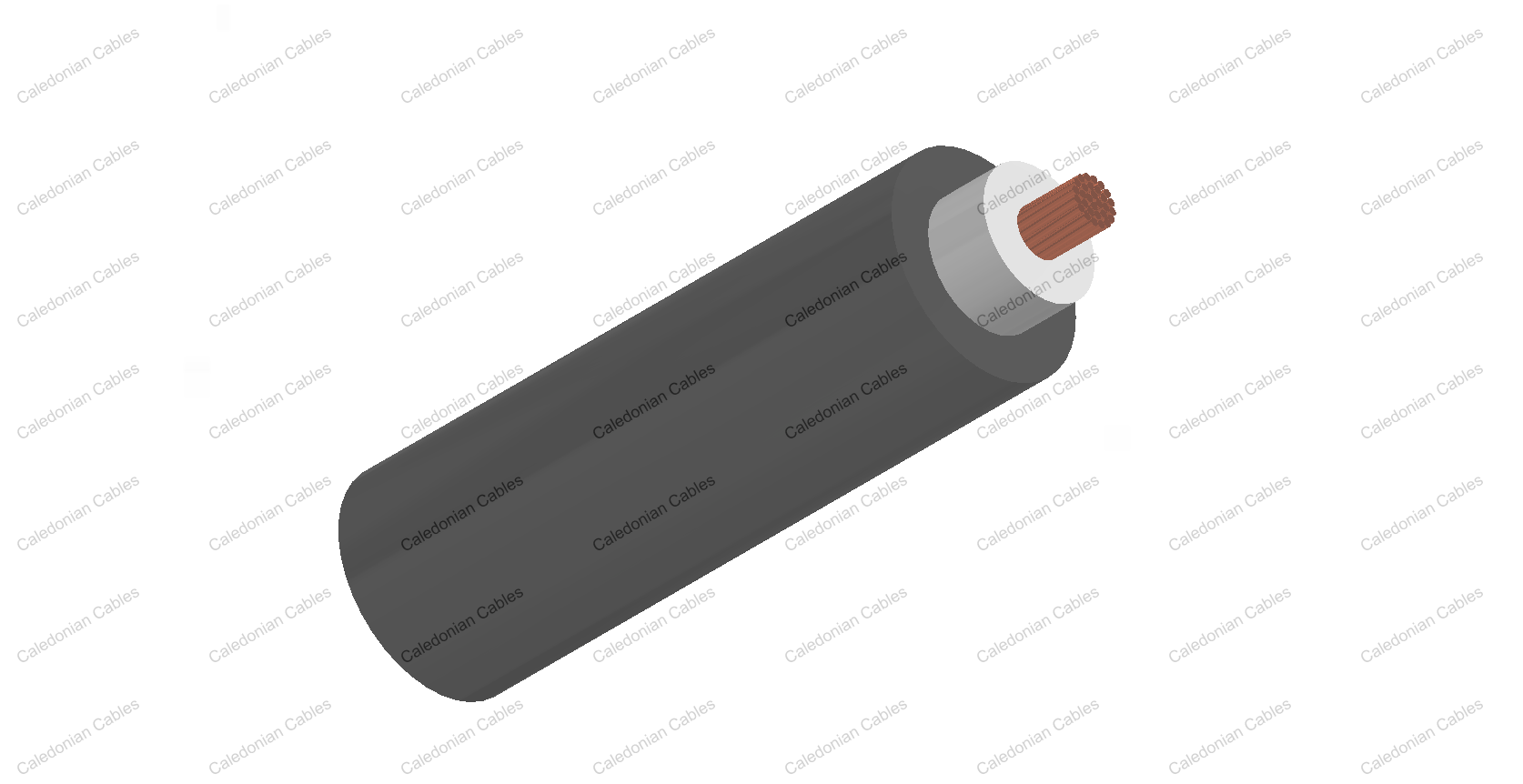

FIREROL High Temperature Single Core Sheathed Cables 1.8/3 kV or 3.6/6 kV
EN 50382-2 (FRL-HT-3S, FRL-HT-6S)

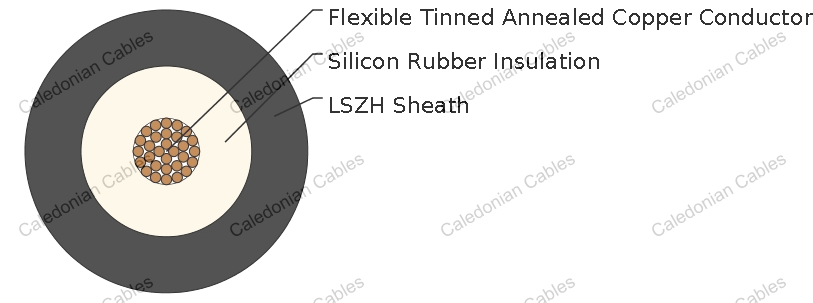

Construction
| Conductor |
Flexible tinned annealed copper wires (red copper only for 150 °C core temperature) class 5 according to HD 383 |
| Insulation |
Silicon rubber according to EN 50382-1 (EI 112) |
| Outer Sheath |
LSZH elastomeric compound according to EN 50382-1 (EM 105, EM 106 or EM 107) |
Electrical & Mechanical Properties
| Nominal Voltage |
1.8/3 kV or 3.6/6 kV |
| Max. Conductor Temperature |
120°C /150°C (fixed installation) |
| Min. Permissible Ambient Temperature |
-25°C/-40°C (fixed installation) |
| Bending Radius |
3 x Overall Diameter (D<12mm);
4 x Overall Diameter (D>12mm)
|
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
| EN54454-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
| EN45545-2 |
Requirement for fire behavior of materials & components R15/R16 |
FRL-HT-3S 1.8/3 kV
| Nominal Cross- Sectional Area |
Conductor Diameter (a) |
Min. Mean Thickness of Insulation |
Min. Average Sheath Thickness |
Overall Diameter |
Weight |
Max.Conductor Resistance |
Min. Insulation Resistance |
| Tinned Conductor |
Plain Conductor |
| Min. |
Max. |
20 °C |
20 °C |
20 °C |
150 °C |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
MΩ x km |
MΩ x km |
| 1.5 |
1.5 |
1.3 |
1.4 |
6.8 |
7.9 |
70 |
13.7 |
13.3 |
670 |
1.30 |
| 2.5 |
1.95 |
1.3 |
1.4 |
7.2 |
8.4 |
80 |
8.21 |
7.98 |
570 |
1.10 |
| 4 |
2.5 |
1.3 |
1.4 |
7.7 |
9.0 |
100 |
5.09 |
4.95 |
480 |
0.90 |
| 6 |
3.0 |
1.3 |
1.4 |
8.2 |
9.6 |
120 |
3.39 |
3.30 |
420 |
0.80 |
| 10 |
3.9 |
1.5 |
1.4 |
9.4 |
11.0 |
190 |
1.95 |
1.91 |
380 |
0.70 |
| 16 |
5.0 |
1.5 |
1.4 |
10.5 |
12.2 |
240 |
1.24 |
1.21 |
310 |
0.60 |
| 25 |
6.4 |
1.8 |
1.4 |
12.3 |
14.4 |
340 |
0.795 |
0.780 |
300 |
0.60 |
| 35 |
7.7 |
1.8 |
1.4 |
13.6 |
15.9 |
440 |
0.565 |
0.554 |
250 |
0.50 |
| 50 |
9.2 |
1.8 |
1.4 |
15.0 |
17.5 |
580 |
0.393 |
0.386 |
220 |
0.40 |
| 70 |
11.0 |
1.8 |
1.5 |
16.8 |
19.7 |
780 |
0.277 |
0.272 |
200 |
0.40 |
| 95 |
12.5 |
2.2 |
1.5 |
19.0 |
22.2 |
1020 |
0.210 |
0.206 |
190 |
0.40 |
| 120 |
14.2 |
2.2 |
1.6 |
20.8 |
24.3 |
1270 |
0.164 |
0.161 |
180 |
0.30 |
| 150 |
15.8 |
2.2 |
1.6 |
22.3 |
26.1 |
1560 |
0.132 |
0.129 |
160 |
0.30 |
| 185 |
17.5 |
2.4 |
1.7 |
24.5 |
28.6 |
1890 |
0.108 |
0.106 |
160 |
0.30 |
| 240 |
20.1 |
2.4 |
1.8 |
27.1 |
31.7 |
2480 |
0.0817 |
0.0801 |
140 |
0.20 |
| 300 |
22.5 |
2.4 |
1.9 |
29.5 |
34.6 |
2990 |
0.0654 |
0.0641 |
120 |
0.20 |
| 400 |
25.8 |
2.6 |
2.0 |
33.2 |
38.9 |
4010 |
0.0495 |
0.0486 |
120 |
0.20 |
(a)= For information, indicative only
FRL-HT-6S 3.6/6 kV
| Nominal Cross- Sectional Area |
Conductor Diameter (a) |
Min. Mean Thickness of Insulation |
Min. Average Sheath Thickness |
Overall Diameter |
Weight |
Max.Conductor Resistance |
Min. Insulation Resistance |
| Tinned Conductor |
Plain Conductor |
| Min. |
Max. |
20 °C |
20 °C |
20 °C |
150 °C |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
MΩ x km |
MΩ x km |
| 2.5 |
1.95 |
2.6 |
1.4 |
9.9 |
11.6 |
130 |
8.21 |
7.98 |
870 |
1.70 |
| 4 |
2.5 |
2.6 |
1.4 |
10.4 |
12.2 |
150 |
5.09 |
4.95 |
750 |
1.50 |
| 6 |
3.0 |
2.6 |
1.4 |
10.9 |
12.8 |
180 |
3.39 |
3.30 |
670 |
1.30 |
| 10 |
3.9 |
2.6 |
1.4 |
11.8 |
13.8 |
240 |
1.95 |
1.91 |
570 |
1.10 |
| 16 |
5.0 |
2.6 |
1.4 |
12.8 |
15.0 |
300 |
1.24 |
1.21 |
480 |
0.90 |
| 25 |
6.4 |
2.9 |
1.4 |
14.7 |
17.2 |
410 |
0.795 |
0.780 |
430 |
0.80 |
| 35 |
7.7 |
2.9 |
1.4 |
15.9 |
18.6 |
510 |
0.565 |
0.554 |
380 |
0.70 |
| 50 |
9.2 |
2.9 |
1.5 |
17.5 |
20.5 |
660 |
0.393 |
0.386 |
330 |
0.60 |
| 70 |
11.0 |
2.9 |
1.5 |
19.2 |
22.4 |
870 |
0.277 |
0.272 |
280 |
0.50 |
| 95 |
12.5 |
2.9 |
1.6 |
20.8 |
24.3 |
1100 |
0.210 |
0.206 |
250 |
0.50 |
| 120 |
14.2 |
2.9 |
1.6 |
22.4 |
26.2 |
1330 |
0.164 |
0.161 |
230 |
0.40 |
| 150 |
15.8 |
2.9 |
1.7 |
24.1 |
28.2 |
1640 |
0.132 |
0.129 |
210 |
0.40 |
| 185 |
17.5 |
3.2 |
1.8 |
26.4 |
30.9 |
1990 |
0.108 |
0.106 |
210 |
0.40 |
| 240 |
20.1 |
3.4 |
1.9 |
29.4 |
34.4 |
2620 |
0.0817 |
0.0801 |
190 |
0.30 |
| 300 |
22.5 |
3.4 |
1.9 |
31.7 |
37.1 |
3120 |
0.0654 |
0.0641 |
170 |
0.30 |
| 400 |
25.8 |
3.4 |
2.0 |
35.0 |
40.9 |
4150 |
0.0495 |
0.0486 |
150 |
0.30 |
(a)= For information, indicative only
