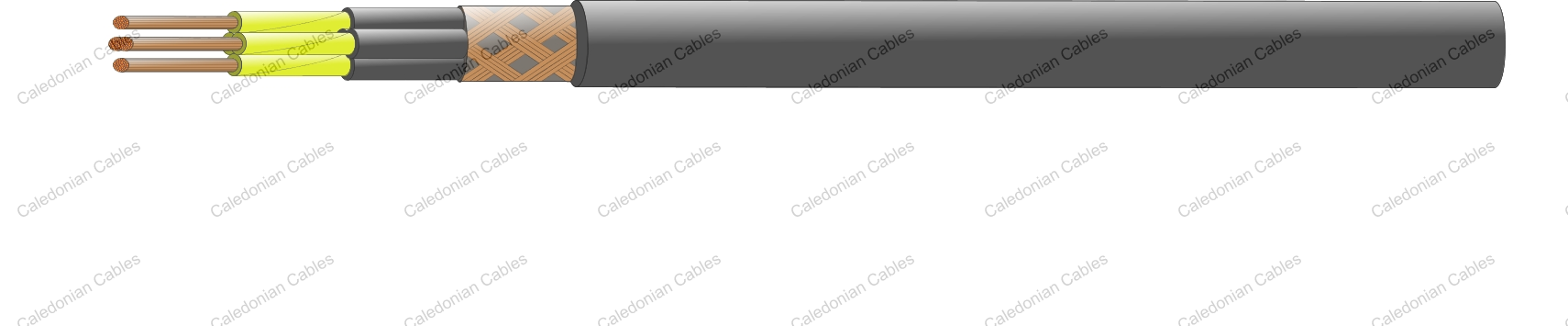

FIREROL Medium Wall Multicore Overall Screened & Fire Resistant Cables 300/500 V or 0.6/1 kV
EN 50264-3-2(FRL-MW-05M-OS-AS+ PH15/30/60 , FRL-MW-1M-OS-AS+ PH15/30/60)
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control,auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

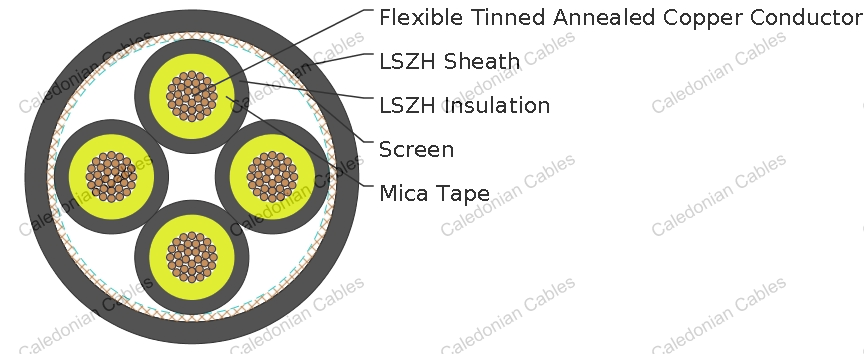

Construction
| Conductor | Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | Mica tape+LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 110) |
| Overal Screen | Tinned annealed copper wires |
| Outer Sheath | LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EI 104) |
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V or 0.6/1 kV |
| Maximum Conductor Temperature | 90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) |
| Bending Radius |
Fixed installation : 10 x Overall Diameter (D<12mm); 12 x Overall Diameter (D>12mm) Flexible installation : 20 x Overall Diameter (D<12mm); 25 x Overall Diameter (D>12mm) |
Chemical & Environmental Propertie
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN 54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN50200 | PH15, PH30, PH60 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
|
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN50200: 2000 | Resistance to fire of unprotected small cable for use in emergency circuits 4 classifications are defined: PH 15,30,60, or 90mins; |
| IEC60331-21 | The circuit integrity test under fire of cables rated 0.6/1.0kV and below |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| EN 50200: 2006 | Resistance to fire of unprotected small cable for use in emergency circuits 5 classifications are defined : PH 15,30,60, 90 or 120mins |
FRL-MW-05M-OS-AS+ -PH15/30/60 300/500 V
| Nominal Cross- Sectional Area (a) | Conductor Diameter (b) | Min. Mean Thickness of Insulation | Core Dimensions | Min. Screen Wire Diameter | Min. Average Sheath Thickness | Overall Diameter | Weight | Max. Conductor Resistance | Min. Insulation Resistance | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EI 110 | EI 106/7/8/9 | |||||||||||
| Min. | Max. | Min. | Max. | 20°C | 20°C | 20°C | ||||||
| n x mm² | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 2 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.16 | 0.6 | 6.24 | 7.34 | 81 | 20.0 | 15.0 | 7.5 |
| 4 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.16 | 0.7 | 7.24 | 8.44 | 132 | 20.0 | 15.0 | 7.5 |
| 7 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.16 | 0.7 | 8.44 | 9.84 | 203 | 20.0 | 15.0 | 7.5 |
| 9 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.21 | 0.8 | 10.44 | 12.14 | 275 | 20.0 | 15.0 | 7.5 |
| 12 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.21 | 0.8 | 11.14 | 12.94 | 346 | 20.0 | 15.0 | 7.5 |
| 19 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.26 | 1.0 | 13.44 | 15.64 | 538 | 20.0 | 15.0 | 7.5 |
| 24 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.26 | 1.0 | 15.44 | 18.04 | 667 | 20.0 | 15.0 | 7.5 |
| 32 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.26 | 1.0 | 16.84 | 19.64 | 846 | 20.0 | 15.0 | 7.5 |
| 37 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.26 | 1.0 | 17.44 | 20.34 | 953 | 20.0 | 15.0 | 7.5 |
| 40 x 1 | 1.25 | 0.4 | 2.24 | 2.64 | 0.26 | 1.2 | 18.44 | 21.54 | 1044 | 20.0 | 15.0 | 7.5 |
| 4 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.16 | 0.7 | 8.24 | 9.64 | 180 | 13.7 | 14.0 | 7.0 |
| 7 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.21 | 0.7 | 9.84 | 11.54 | 295 | 13.7 | 14.0 | 7.0 |
| 9 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.21 | 1.0 | 12.34 | 14.44 | 395 | 13.7 | 14.0 | 7.0 |
| 12 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.21 | 1.0 | 13.24 | 15.44 | 497 | 13.7 | 14.0 | 7.0 |
| 19 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.26 | 1.0 | 15.54 | 18.14 | 750 | 13.7 | 14.0 | 7.0 |
| 24 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.26 | 1.2 | 18.34 | 21.44 | 955 | 13.7 | 14.0 | 7.0 |
| 32 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.26 | 1.2 | 20.04 | 23.44 | 1215 | 13.7 | 14.0 | 7.0 |
| 37 x 1.5 | 1.5 | 0.5 | 2.64 | 3.14 | 0.26 | 1.2 | 20.74 | 24.24 | 1372 | 13.7 | 14.0 | 7.0 |
| 4 x 2.5 | 1.95 | 0.5 | 3.14 | 3.64 | 0.21 | 0.7 | 9.44 | 11.04 | 249 | 8.21 | 13.0 | 6.5 |
| 7 x 2.5 | 1.95 | 0.5 | 3.14 | 3.64 | 0.21 | 0.8 | 11.34 | 13.24 | 398 | 8.21 | 13.0 | 6.5 |
| 9 x 2.5 | 1.95 | 0.5 | 3.14 | 3.64 | 0.26 | 1.0 | 14.14 | 16.54 | 539 | 8.21 | 13.0 | 6.5 |
| 12 x 2.5 | 1.95 | 0.5 | 3.14 | 3.64 | 0.26 | 1.0 | 15.24 | 17.74 | 681 | 8.21 | 13.0 | 6.5 |
| 19 x 2.5 | 1.95 | 0.5 | 3.14 | 3.64 | 0.26 | 1.2 | 18.04 | 21.04 | 1027 | 8.21 | 13.0 | 6.5 |
| 24 x 2.5 | 1.95 | 0.5 | 3.14 | 3.64 | 0.26 | 1.2 | 20.84 | 24.34 | 1278 | 8.21 | 13.0 | 6.5 |
(a)= One earth conductor (green/yellow) can be included upon request
(b)= For information, indicative only
FRL-MW-1M-OS-AS+ -PH15/30/600.6/1 kV
| Nominal Cross- Sectional Area (a) | Conductor Diameter (b) | Min. Mean Thickness of Insulation | Core Dimensions | Min. Screen Wire Diameter | Min. Average Sheath Thickness | Overall Diameter | Weight | Max. Conductor Resistance | Min. Insulation Resistance | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EI 110 | EI 106/7/8/9 | |||||||||||
| Min. | Max. | Min. | Max. | 20°C | 20°C | 20°C | ||||||
| mm² | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| TWO CORES | ||||||||||||
| 1.5 | 1.5 | 0.7 | 3.04 | 3.54 | 0.16 | 0.70 | 8.14 | 10.14 | 121 | 13.7 | 21.0 | 10.5 |
| 2.5 | 1.95 | 0.7 | 3.44 | 4.04 | 0.16 | 0.70 | 8.94 | 10.94 | 157 | 8.21 | 17.2 | 8.6 |
| 4 | 2.5 | 0.7 | 4.04 | 4.64 | 0.21 | 0.80 | 10.44 | 12.94 | 224 | 5.09 | 14.2 | 7.1 |
| 6 | 3.0 | 0.7 | 4.44 | 5.24 | 0.21 | 0.80 | 11.14 | 13.84 | 287 | 3.39 | 12.2 | 6.1 |
| 10 | 3.9 | 0.7 | 5.34 | 6.14 | 0.21 | 1.00 | 13.64 | 16.84 | 424 | 1.95 | 9.8 | 4.9 |
| 16 | 5.0 | 0.7 | 6.34 | 7.44 | 0.26 | 1.00 | 16.24 | 20.04 | 606 | 1.24 | 7.9 | 3.9 |
| 25 | 6.4 | 0.9 | 8.04 | 9.34 | 0.26 | 1.20 | 20.04 | 24.84 | 909 | 0.795 | 7.3 | 3.6 |
| 35 | 7.7 | 0.9 | 9.24 | 10.84 | 0.31 | 1.40 | 23.04 | 28.14 | 1213 | 0.565 | 6.7 | 3.3 |
| 50 | 9.2 | 1.0 | 10.84 | 12.64 | 0.31 | 1.40 | 26.64 | 32.54 | 1631 | 0.393 | 6.3 | 3.1 |
| THREE CORES | ||||||||||||
| 1.5 | 1.5 | 0.7 | 3.04 | 3.54 | 0.16 | 0.70 | 8.64 | 10.64 | 156 | 13.7 | 21.0 | 10.5 |
| 2.5 | 1.95 | 0.7 | 3.44 | 4.04 | 0.16 | 0.70 | 9.44 | 11.64 | 207 | 8.21 | 17.2 | 8.6 |
| 4 | 2.5 | 0.7 | 4.04 | 4.64 | 0.21 | 0.80 | 11.04 | 13.54 | 295 | 5.09 | 14.2 | 7.1 |
| 6 | 3.0 | 0.7 | 4.44 | 5.24 | 0.21 | 0.80 | 11.84 | 14.54 | 384 | 3.39 | 12.2 | 6.1 |
| 10 | 3.9 | 0.7 | 5.34 | 6.14 | 0.26 | 1.00 | 14.64 | 18.24 | 593 | 1.95 | 9.8 | 4.9 |
| 16 | 5.0 | 0.7 | 6.34 | 7.44 | 0.26 | 1.20 | 17.64 | 21.54 | 848 | 1.24 | 7.9 | 3.9 |
| 25 | 6.4 | 0.9 | 8.04 | 9.34 | 0.26 | 1.20 | 21.54 | 26.34 | 1251 | 0.795 | 7.3 | 3.6 |
| 35 | 7.7 | 0.9 | 9.24 | 10.84 | 0.31 | 1.40 | 24.74 | 30.04 | 1674 | 0.565 | 6.7 | 3.3 |
| 50 | 9.2 | 1.0 | 10.84 | 12.64 | 0.31 | 1.60 | 28.54 | 34.84 | 2309 | 0.393 | 6.3 | 3.1 |
| FOUR CORES | ||||||||||||
| 1.5 | 1.5 | 0.7 | 3.04 | 3.54 | 0.16 | 0.70 | 9.34 | 11.54 | 194 | 13.7 | 21.0 | 10.5 |
| 2.5 | 1.95 | 0.7 | 3.44 | 4.04 | 0.21 | 0.80 | 10.64 | 13.14 | 280 | 8.21 | 17.2 | 8.6 |
| 4 | 2.5 | 0.7 | 4.04 | 4.64 | 0.21 | 0.80 | 12.04 | 14.74 | 371 | 5.09 | 14.2 | 7.1 |
| 6 | 3.0 | 0.7 | 4.44 | 5.24 | 0.21 | 1.00 | 13.34 | 16.34 | 503 | 3.39 | 12.2 | 6.1 |
| 10 | 3.9 | 0.7 | 5.34 | 6.14 | 0.26 | 1.00 | 16.14 | 19.74 | 752 | 1.95 | 9.8 | 4.9 |
| 16 | 5.0 | 0.7 | 6.34 | 7.44 | 0.26 | 1.20 | 19.54 | 23.84 | 1082 | 1.24 | 7.9 | 3.9 |
| 25 | 6.4 | 0.9 | 8.04 | 9.34 | 0.31 | 1.40 | 24.24 | 29.54 | 1666 | 0.795 | 7.3 | 3.6 |
| 3x35+25 | 7.7/6.4 | 0.9/0.9 | 9.24/8.04 | 10.84/9.34 | 0.31 | 1.40 | 27.14 | 33.14 | 2152 | 0.565/0.795 | 6.7 | 3.3 |
| 3x50+25 | 9.2/6.4 | 1.0/0.9 | 10.84/8.04 | 12.64/9.34 | 0.31 | 1.60 | 31.74 | 38.44 | 2946 | 0.393/0.795 | 6.3 | 3.1 |
(a)= One earth conductor (green/yellow) can be included upon request
(b)= For information, indicative only
