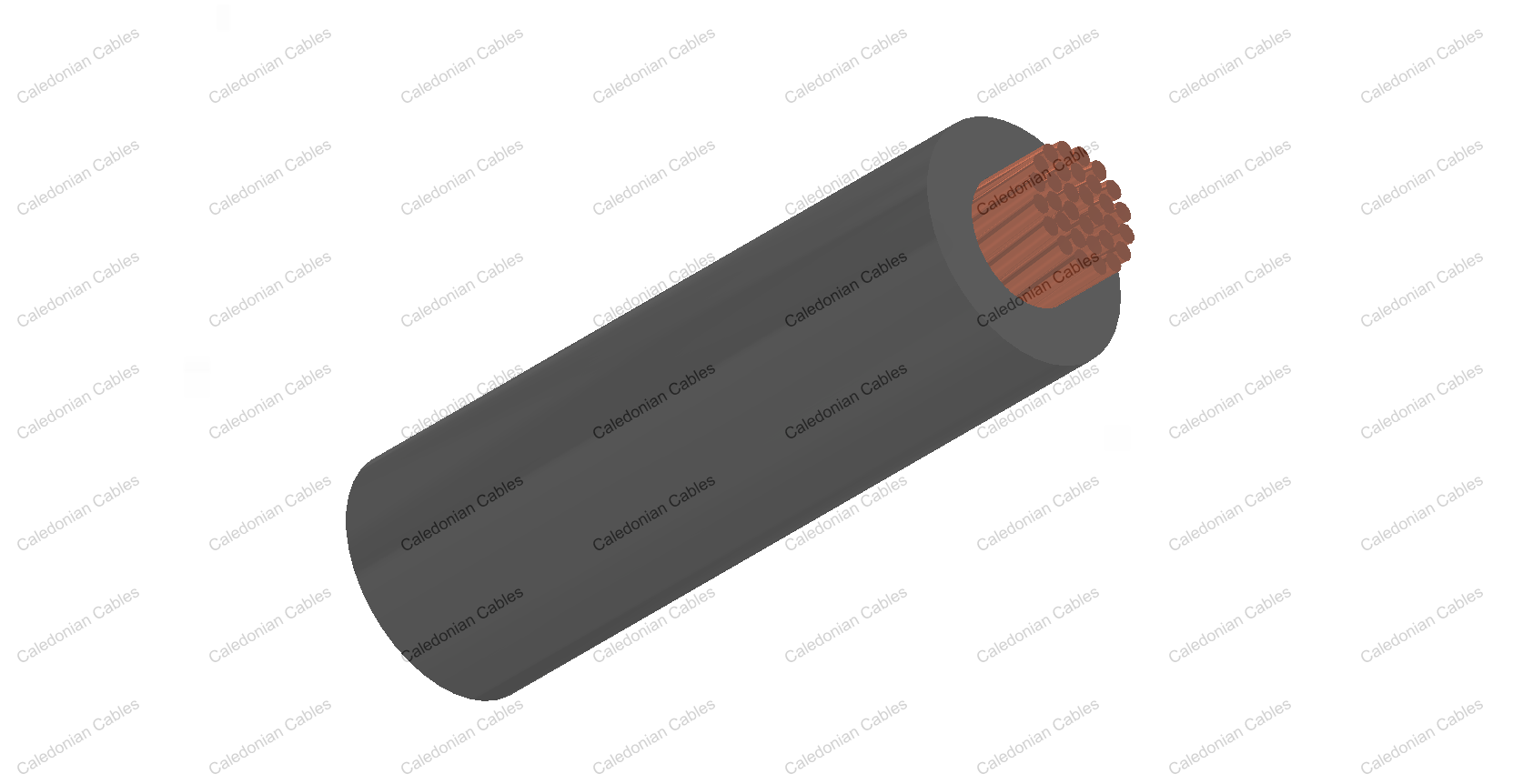

FIREROL Medium Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV
EN 50264-3-1 (FRL-MW-1SU, FRL-MW-3SU)
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control,lauxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

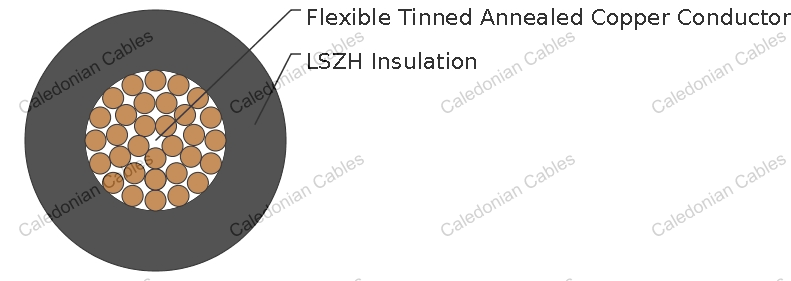

Construction
| Conductor | Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109) |
Electrical & Mechanical Properties
| Nominal Voltage | 0.6/1 kV or 1.8/3 kV | |
| Maximum Conductor Temperature | 90°C ( fixed installation ) | |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) | |
| Bending Radius |
For 0.6/1KV Cables |
Fixed installation : 3 x Overall Diameter (D<12mm) ; 4 x Overall Diameter (D>12mm) Flexible installation : 6 x Overall Diameter (D<12mm) ; 8 x Overall Diameter (D>12mm) |
| For 1.8/3KV Cables |
Fixed installation : 5 x Overall Diameter (D<12mm) ; 6 x Overall Diameter (D>12mm) Flexible installation : 10 x Overall Diameter (D<12mm) ; 12 x Overall Diameter (D>12mm) |
|
Chemical & Environmental Propertie
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
Fire Performance for rolling stock application
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
|
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
FRL-MW-1SU 0.6/1 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Conductor Resistance | Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|
| min | max | 20℃ | 20℃ | 90℃ | ||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.0 | 1.25 | 0.6 | 2.4 | 2.8 | 10 | 20 | 11.4 | 0.114 |
| 1.5 | 1.5 | 0.7 | 2.8 | 3.3 | 20 | 13.7 | 11.0 | 0.110 |
| 2.5 | 1.95 | 0.7 | 3.2 | 3.8 | 30 | 8.21 | 9.1 | 0.091 |
| 4 | 2.5 | 0.7 | 3.8 | 4.4 | 50 | 5.09 | 7.5 | 0.075 |
| 6 | 3.0 | 0.7 | 4.2 | 5.0 | 60 | 3.39 | 6.5 | 0.065 |
| 10 | 3.9 | 0.7 | 5.1 | 5.9 | 110 | 1.95 | 5.2 | 0.052 |
| 16 | 5.0 | 0.7 | 6.1 | 7.2 | 160 | 1.24 | 4.2 | 0.042 |
| 25 | 6.4 | 0.9 | 7.8 | 9.1 | 240 | 0.795 | 4.1 | 0.041 |
| 35 | 7.7 | 0.9 | 9.0 | 10.6 | 330 | 0.565 | 3.5 | 0.035 |
| 50 | 9.2 | 1.0 | 10.6 | 12.4 | 460 | 0.393 | 3.3 | 0.033 |
| 70 | 11.0 | 1.1 | 12.5 | 14.6 | 660 | 0.277 | 3.0 | 0.030 |
| 95 | 12.5 | 1.1 | 13.9 | 16.3 | 860 | 0.210 | 2.7 | 0.027 |
| 120 | 14.2 | 1.2 | 15.7 | 18.4 | 1080 | 0.164 | 2.7 | 0.027 |
| 150 | 15.8 | 1.4 | 17.6 | 20.6 | 1370 | 0.132 | 2.7 | 0.027 |
| 185 | 17.5 | 1.6 | 19.6 | 22.9 | 1690 | 0.108 | 2.6 | 0.026 |
| 240 | 20.1 | 1.7 | 22.2 | 26.0 | 2230 | 0.0817 | 2.6 | 0.026 |
| 300 | 22.5 | 1.8 | 24.6 | 28.8 | 2780 | 0.0654 | 2.4 | 0.024 |
| 400 | 25.8 | 2.0 | 28.1 | 32.9 | 3740 | 0.0495 | 2.4 | 0.024 |
FRL-MW-3SU 1.8/3 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Conductor Resistance | Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|
| min | max | 20℃ | 20℃ | 90℃ | ||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.5 | 1.5 | 2.0 | 5.3 | 6.2 | 50 | 13.7 | 21.0 | 0.210 |
| 2.5 | 1.95 | 2.0 | 5.7 | 6.7 | 60 | 8.21 | 18.0 | 0.180 |
| 4 | 2.5 | 2.0 | 6.2 | 7.3 | 80 | 5.09 | 15.5 | 0.155 |
| 6 | 3.0 | 2.0 | 6.7 | 7.8 | 100 | 3.39 | 13.7 | 0.137 |
| 10 | 3.9 | 2.0 | 7.5 | 8.8 | 150 | 1.95 | 11.5 | 0.115 |
| 16 | 5.0 | 2.0 | 8.6 | 10.0 | 220 | 1.24 | 9.5 | 0.095 |
| 25 | 6.4 | 2.0 | 9.9 | 11.6 | 290 | 0.795 | 7.9 | 0.079 |
| 35 | 7.7 | 2.0 | 11.1 | 13.0 | 390 | 0.565 | 6.8 | 0.068 |
| 50 | 9.2 | 2.0 | 12.5 | 14.6 | 530 | 0.393 | 5.9 | 0.059 |
| 70 | 11.0 | 2.0 | 14.2 | 16.6 | 720 | 0.277 | 5.0 | 0.050 |
| 95 | 12.5 | 2.2 | 16.0 | 18.7 | 940 | 0.210 | 4.5 | 0.045 |
| 120 | 14.2 | 2.2 | 17.6 | 20.6 | 1160 | 0.164 | 4.0 | 0.040 |
| 150 | 15.8 | 2.2 | 19.1 | 22.3 | 1440 | 0.132 | 3.7 | 0.037 |
| 185 | 17.5 | 2.4 | 20.9 | 24.4 | 1760 | 0.108 | 3.4 | 0.034 |
| 240 | 20.1 | 2.4 | 23.7 | 27.5 | 2350 | 0.0817 | 3.0 | 0.030 |
| 300 | 22.5 | 2.4 | 25.6 | 30.1 | 2820 | 0.0654 | 2.7 | 0.027 |
| 400 | 25.8 | 2.6 | 29.2 | 34.2 | 3730 | 0.0495 | 2.4 | 0.024 |
(a) = for information, indicative only
