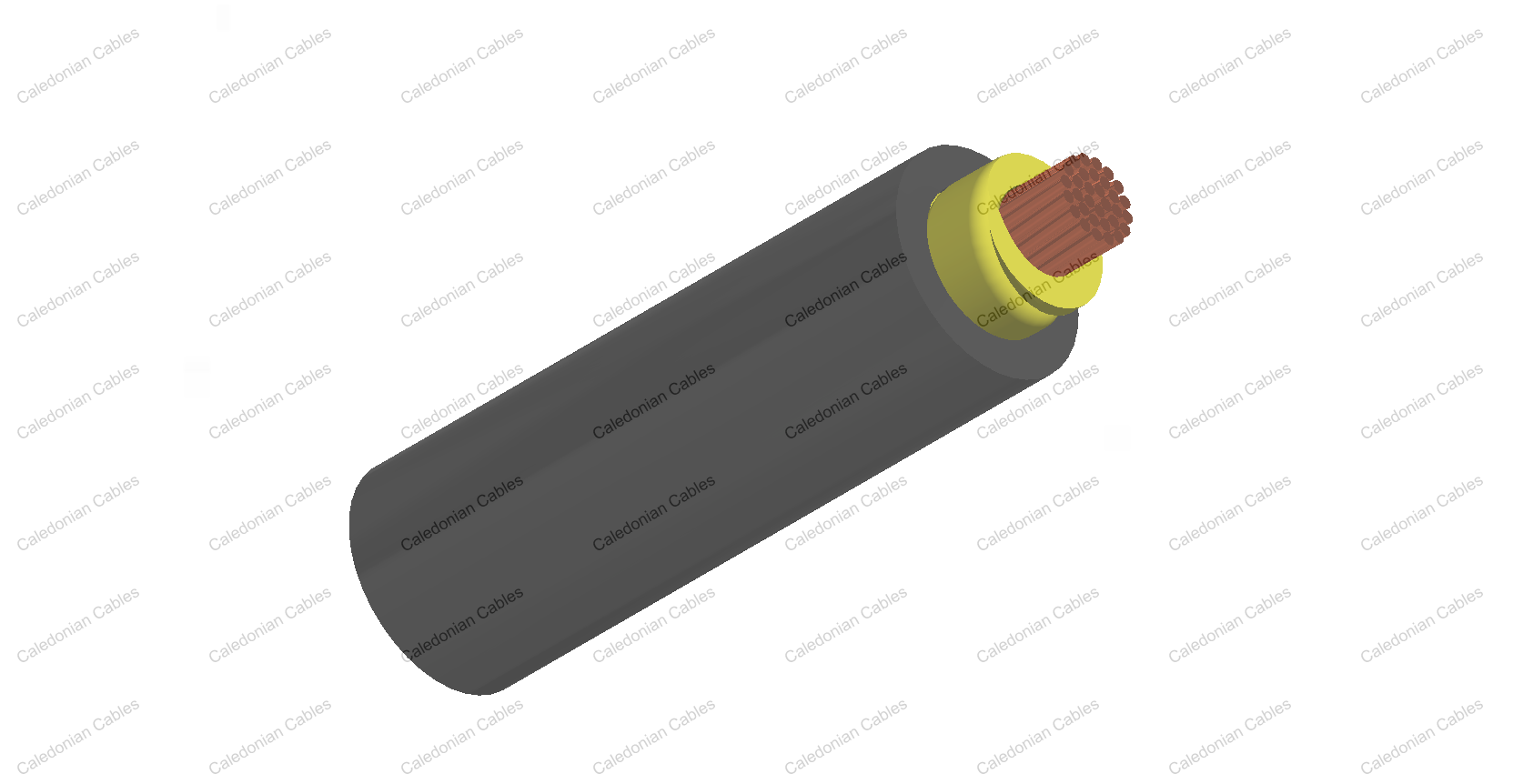

FIREROL Medium Wall Single Core Unsheathed & Fire Resistant 0.6/1 kV or 1.8/3 kV
EN 50264-3-1 (FRL-MW-1SU-PH15/30/60, FRL-MW-3SU-PH15/30/60)
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control,auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

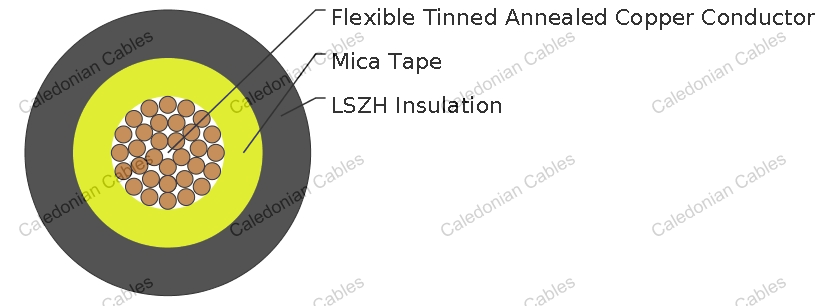

Construction
| Conductor | Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | Mica tape+LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109) |
Electrical & Mechanical Properties
| Nominal Voltage | 0.6/1 kV or 1.8/3 kV |
| Maximum Conductor Temperature | 90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) |
| Bending Radius | Fixed installation : 10 x Overall Diameter (D<12mm); 12 x Overall Diameter (D>12mm) Flexible installation : 20 x Overall Diameter (D<12mm); 25 x Overall Diameter (D>12mm) |
Chemical & Environmental Propertie
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN 54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50200: 2006 | PH15,30,60 |
Fire Performance for rolling stock application
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
|
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN50200: 2000 | Resistance to fire of unprotected small cable for use in emergency circuits 4 classifications are defined: PH 15,30,60, or 90mins; |
| IEC60331-21 | The circuit integrity test under fire of cables rated 0.6/1.0kV and below |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| EN50200: 2006 | Resistance to fire of unprotected small cable for use in emergency circuits 5 classficitions are defines: PH15, 30, 60, 90 or 120 mins. |
FRL-MW-1SU-PH15/30/60 0.6/1 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Conductor Resistance | Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|
| min | max | 20℃ | 20℃ | 90℃ | ||||
| mm^2 | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.0 | 1.25 | 0.6 | 2.6 | 3.1 | 15 | 20 | 11.4 | 0.114 |
| 1.5 | 1.5 | 0.7 | 3.0 | 3.6 | 24 | 13.7 | 11.0 | 0.110 |
| 2.5 | 1.95 | 0.7 | 3.4 | 4.1 | 36 | 8.21 | 9.1 | 0.091 |
| 4 | 2.5 | 0.7 | 4.0 | 4.7 | 54 | 5.09 | 7.5 | 0.075 |
| 6 | 3.0 | 0.7 | 4.4 | 5.3 | 76 | 3.39 | 6.5 | 0.065 |
| 10 | 3.9 | 0.7 | 5.3 | 6.2 | 121 | 1.95 | 5.2 | 0.052 |
| 16 | 5.0 | 0.7 | 6.3 | 7.5 | 184 | 1.24 | 4.2 | 0.042 |
| 25 | 6.4 | 0.9 | 8.0 | 9.4 | 289 | 0.795 | 4.1 | 0.041 |
| 35 | 7.7 | 0.9 | 9.2 | 10.9 | 395 | 0.565 | 3.5 | 0.035 |
| 50 | 9.2 | 1.0 | 10.8 | 12.7 | 563 | 0.393 | 3.3 | 0.033 |
| 70 | 11.0 | 1.1 | 12.7 | 14.9 | 796 | 0.277 | 3.0 | 0.030 |
| 95 | 12.5 | 1.1 | 14.1 | 16.6 | 1032 | 0.210 | 2.7 | 0.027 |
| 120 | 14.2 | 1.2 | 15.9 | 18.7 | 1318 | 0.164 | 2.7 | 0.027 |
| 150 | 15.8 | 1.4 | 17.8 | 20.9 | 1650 | 0.132 | 2.7 | 0.027 |
| 185 | 17.5 | 1.6 | 19.8 | 23.2 | 2018 | 0.108 | 2.6 | 0.026 |
| 240 | 20.1 | 1.7 | 22.4 | 26.3 | 2649 | 0.0817 | 2.6 | 0.026 |
| 300 | 22.5 | 1.8 | 24.8 | 29.1 | 3291 | 0.0654 | 2.4 | 0.024 |
| 400 | 25.8 | 2.0 | 28.3 | 33.2 | 3850 | 0.0495 | 2.4 | 0.024 |
(a) = for information, indicative only
FRL-MW-3SU-PH15/30/60 1.8/3 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Conductor Resistance | Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|
| min | max | 20℃ | 20℃ | 90℃ | ||||
| mm^2 | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.5 | 1.5 | 2.0 | 5.5 | 6.5 | 56 | 13.7 | 21.0 | 0.210 |
| 2.5 | 1.95 | 2.0 | 5.9 | 7.0 | 71 | 8.21 | 18.0 | 0.180 |
| 4 | 2.5 | 2.0 | 6.4 | 7.6 | 90 | 5.09 | 15.5 | 0.155 |
| 6 | 3.0 | 2.0 | 69 | 8.1 | 114 | 3.39 | 13.7 | 0.137 |
| 10 | 3.9 | 2.0 | 7.7 | 9.1 | 165 | 1.95 | 11.5 | 0.115 |
| 16 | 5.0 | 2.0 | 8.8 | 10.3 | 235 | 1.24 | 9.5 | 0.095 |
| 25 | 6.4 | 2.0 | 10.1 | 11.9 | 320 | 0.795 | 7.9 | 0.079 |
| 35 | 7.7 | 2.0 | 11.3 | 13.3 | 440 | 0.565 | 6.8 | 0.068 |
| 50 | 9.2 | 2.0 | 12.7 | 14.9 | 610 | 0.393 | 5.9 | 0.059 |
| 70 | 11.0 | 2.0 | 14.4 | 16.9 | 850 | 0.277 | 5.0 | 0.050 |
| 95 | 12.5 | 2.2 | 16.2 | 19.0 | 1110 | 0.210 | 4.5 | 0.045 |
| 120 | 14.2 | 2.2 | 17.8 | 20.9 | 1400 | 0.164 | 4.0 | 0.040 |
| 150 | 15.8 | 2.2 | 19.3 | 22.6 | 1710 | 0.132 | 3.7 | 0.037 |
| 185 | 17.5 | 2.4 | 21.1 | 24.7 | 2110 | 0.108 | 3.4 | 0.034 |
| 240 | 20.1 | 2.4 | 23.9 | 27.8 | 2750 | 0.0817 | 3.0 | 0.030 |
| 300 | 22.5 | 2.4 | 25.8 | 30.4 | 3300 | 0.0654 | 2.7 | 0.027 |
| 400 | 25.8 | 2.6 | 29.4 | 34.5 | 3900 | 0.0495 | 2.4 | 0.024 |
(a) = for information, indicative only
