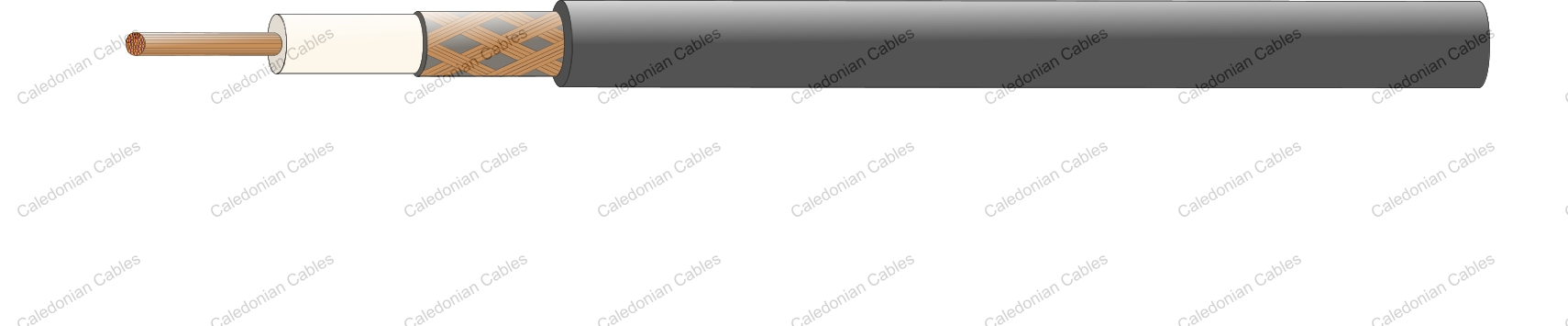

FIREROL Medium Wall Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kV
EN 50264-3-1 (FRL-MW-3S-OS, FRL-MW-6S-OS)
Application
- -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
- -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

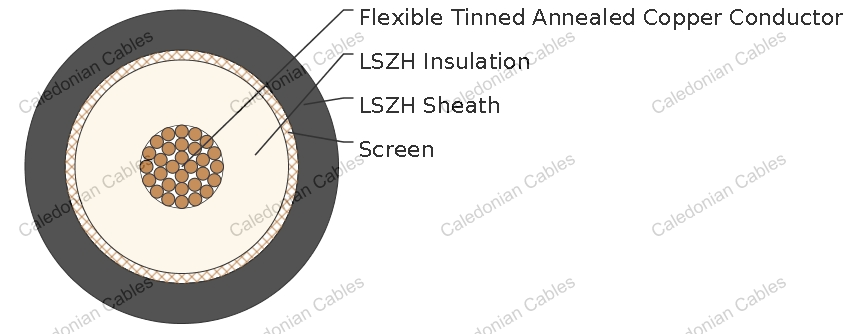

Construction
| Conductor |
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation |
LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109) |
| Overal screen |
Tinned annealed copper wires |
| Sheath |
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104) |
Electrical & Mechanical Properties
| Nominal Voltage |
1.8/3 kV or 3.6/6 kV |
| Maximum Conductor Temperature |
90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature |
-25°C/-40°C ( fixed installation ) |
| Bending Radius |
3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
Fire Performance for rolling stock application
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
|
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
|
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
FRL-MW-3S-OS 1.8/3 kV
| Nominal Cross-Sectional Area |
Conductor Diameter (a) |
Min. Mean Thickness of Insulation |
Min. Screen Wire Diameter |
Min. Mean Thickness of Sheath |
Overall Diameter |
Weight |
Conductor Resistance |
Insulation Resistance |
| min |
max |
20℃ |
20℃ |
90℃ |
| mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
MΩ x km |
MΩ x km |
| 1.5 |
1.5 |
1.3 |
0.8 |
0.16 |
6.6 |
7.6 |
103 |
13.7 |
21.8 |
0.218 |
| 2.5 |
1.95 |
1.3 |
0.8 |
0.16 |
6.9 |
8.1 |
123 |
8.21 |
18.8 |
0.188 |
| 4 |
2.5 |
1.3 |
0.8 |
0.21 |
7.5 |
8.8 |
157 |
5.09 |
16.2 |
0.162 |
| 6 |
3.0 |
1.3 |
0.8 |
0.21 |
7.9 |
9.4 |
189 |
3.39 |
14.4 |
0.144 |
| 10 |
3.9 |
1.5 |
0.8 |
0.21 |
9.1 |
10.8 |
264 |
1.95 |
12.8 |
0.128 |
| 16 |
5.0 |
1.5 |
0.8 |
0.26 |
10.2 |
12.0 |
359 |
1.24 |
10.7 |
0.107 |
| 25 |
6.4 |
1.8 |
1.0 |
0.26 |
12.1 |
14.2 |
510 |
0.795 |
10.3 |
0.103 |
| 35 |
7.7 |
1.8 |
1.0 |
0.31 |
13.3 |
15.2 |
650 |
0.565 |
8.9 |
0.089 |
| 50 |
9.2 |
1.8 |
1.0 |
0.31 |
14.7 |
16.8 |
846 |
0.393 |
7.8 |
0.078 |
| 70 |
11.0 |
1.8 |
1.0 |
0.31 |
16.6 |
19.3 |
1130 |
0.277 |
6.7 |
0.067 |
| 95 |
12.5 |
2.2 |
1.0 |
0.31 |
18.7 |
21.1 |
1436 |
0.210 |
6.5 |
0.065 |
| 120 |
14.2 |
2.2 |
1.0 |
0.31 |
20.6 |
23.0 |
1765 |
0.164 |
6.1 |
0.061 |
| 150 |
15.8 |
2.2 |
1.2 |
0.31 |
22.0 |
25.3 |
2128 |
0.132 |
5.8 |
0.058 |
| 185 |
17.5 |
2.4 |
1.2 |
0.31 |
24.0 |
29.0 |
2541 |
0.108 |
5.6 |
0.056 |
| 240 |
20.1 |
2.4 |
1.2 |
0.31 |
26.8 |
30.5 |
3244 |
0.0817 |
5.0 |
0.050 |
| 300 |
22.5 |
2.4 |
1.2 |
0.31 |
29.2 |
33.0 |
3934 |
0.0654 |
4.5 |
0.045 |
| 400 |
25.8 |
2.6 |
1.4 |
0.31 |
32.9 |
38.0 |
5078 |
0.0495 |
4.4 |
0.044 |
FRL-MW-6S-OS 3.6/6 kV
| Nominal Cross-Sectional Area |
Conductor Diameter (a) |
Min. Mean Thickness of Insulation |
Min. Screen Wire Diameter |
Min. Mean Thickness of Sheath |
Overall Diameter |
Weight |
Conductor Resistance |
Insulation Resistance |
| min |
max |
20℃ |
20℃ |
90℃ |
| mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
MΩ x km |
MΩ x km |
| 2.5 |
1.95 |
2.6 |
0.8 |
0.16 |
9.6 |
10.7 |
120 |
8.21 |
24.6 |
0.246 |
| 4 |
2.5 |
2.6 |
0.8 |
0.21 |
10.1 |
11.3 |
140 |
5.09 |
21.6 |
0.216 |
| 6 |
3.0 |
2.6 |
0.8 |
0.21 |
10.6 |
12.0 |
165 |
3.39 |
19.5 |
0.195 |
| 10 |
3.9 |
2.6 |
0.8 |
0.21 |
11.5 |
13.0 |
220 |
1.95 |
16.7 |
0.167 |
| 16 |
5.0 |
2.6 |
0.8 |
0.26 |
12.6 |
14.0 |
290 |
1.24 |
14.2 |
0.142 |
| 25 |
6.4 |
2.9 |
1.0 |
0.26 |
14.4 |
16.4 |
430 |
0.795 |
13.1 |
0.131 |
| 35 |
7.7 |
2.9 |
1.0 |
0.31 |
15.6 |
18.1 |
540 |
0.565 |
11.6 |
0.116 |
| 50 |
9.2 |
2.9 |
1.0 |
0.31 |
17.2 |
19.7 |
670 |
0.393 |
10.2 |
0.102 |
| 70 |
11.0 |
2.9 |
1.0 |
0.31 |
18.9 |
21.7 |
880 |
0.277 |
8.9 |
0.089 |
| 95 |
12.5 |
2.9 |
1.0 |
0.31 |
20.5 |
23.4 |
1100 |
0.210 |
8.5 |
0.080 |
| 120 |
14.2 |
2.9 |
1.2 |
0.31 |
22.1 |
25.7 |
1380 |
0.164 |
7.5 |
0.075 |
| 150 |
15.8 |
2.9 |
1.2 |
0.31 |
23.8 |
27.4 |
1660 |
0.132 |
6.9 |
0.069 |
| 185 |
17.5 |
3.2 |
1.2 |
0.31 |
26.0 |
30.0 |
2010 |
0.108 |
6.7 |
0.067 |
| 240 |
20.1 |
3.4 |
1.4 |
0.31 |
29.0 |
33.7 |
2670 |
0.0817 |
6.4 |
0.064 |
| 300 |
22.5 |
3.4 |
1.4 |
0.31 |
31.4 |
36.4 |
3170 |
0.0654 |
5.9 |
0.059 |
| 400 |
25.8 |
3.4 |
1.4 |
0.31 |
34.8 |
40.0 |
4150 |
0.0495 |
5.2 |
0.052 |
(a) = for information, indicative only
