FIREROL Standard Wall Multicore Overall Screened Cables 300/500 V or 0.6/1 kV
EN 50264-2-2 (FRL-SW-05M-OS, FRL-SW-1M-OS)
Application
- -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
- -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

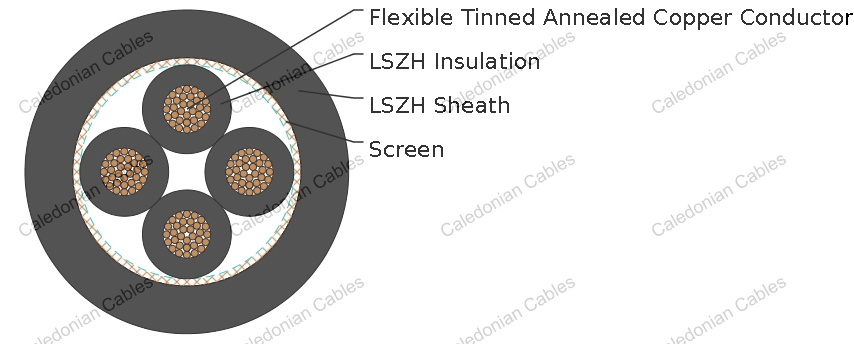

Construction
| Conductor |
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation |
LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105) |
| Overal screen |
Tinned annealed copper wires |
| Outer sheath |
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104) |
Electrical & Mechanical Properties
| Nominal Voltage |
300/500 V or 0.6/1 kV |
| Maximum Conductor Temperature |
90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature |
-25°C/-40°C ( fixed installation ) |
| Bending Radius |
10 x Overall Diameter |
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
Fire Performance for rolling stock application
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
EN 50267-2-1; IEC 60754-1; NF C 32-074;
NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
|
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;
NF C 20-453; VDE 0472 Teil 813
|
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
FRL-SW-05M-OS 300/500 V
| Number And Nominal Cross-Sectional Area(a) |
Conductor Diameter (b) |
Min. Mean Thickness of Insulation |
Diameter of Core(b) |
Min Wire Diameter of Screen |
Min. Mean Thickness of Sheath |
Overall Diameter |
Weight |
Maximum Conductor Resistance |
Insulation Resistance |
| EI 105 |
EI 101- EI 104 |
| Min |
Max |
Min |
Max |
20℃ |
20℃ |
20℃ |
| n x mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
MΩ x km |
MΩ x km |
| 2x1 |
1.25 |
0.6 |
2.4 |
2.8 |
0.16 |
1.4 |
8.1 |
9.5 |
110 |
20.0 |
140 |
70 |
| 4x1 |
0.6 |
2.4 |
2.8 |
0.16 |
1.4 |
9.0 |
10.6 |
150 |
20.0 |
140 |
70 |
| 7x1 |
0.6 |
2.4 |
2.8 |
0.16 |
1.4 |
10.4 |
12.2 |
210 |
20.0 |
140 |
70 |
| 9x1 |
0.6 |
2.4 |
2.8 |
0.21 |
1.4 |
12.5 |
14.6 |
290 |
20.0 |
140 |
70 |
| 12x1 |
0.6 |
2.4 |
2.8 |
0.21 |
1.4 |
13.3 |
15.6 |
330 |
20.0 |
140 |
70 |
| 19x1 |
0.6 |
2.4 |
2.8 |
0.26 |
1.5 |
15.7 |
18.4 |
490 |
20.0 |
140 |
70 |
| 24x1 |
0.6 |
2.4 |
2.8 |
0.26 |
1.6 |
18.1 |
21.2 |
630 |
20.0 |
140 |
70 |
| 32x1 |
0.6 |
2.4 |
2.8 |
0.26 |
1.6 |
19.7 |
23.1 |
760 |
20.0 |
140 |
70 |
| 37x1 |
0.6 |
2.4 |
2.8 |
0.26 |
1.7 |
20.7 |
24.2 |
840 |
20.0 |
140 |
70 |
| 40x1 |
0.6 |
2.4 |
2.8 |
0.26 |
1.7 |
21.4 |
25.1 |
910 |
20.0 |
140 |
70 |
| 4x1.5 |
1.5 |
0.7 |
2.8 |
3.3 |
0.16 |
1.4 |
10.1 |
11.8 |
200 |
13.7 |
120 |
60 |
| 7x1.5 |
0.7 |
2.8 |
3.3 |
0.21 |
1.4 |
11.9 |
14.0 |
290 |
13.7 |
120 |
60 |
| 9x1.5 |
0.7 |
2.8 |
3.3 |
0.21 |
1.4 |
14.1 |
16.5 |
380 |
13.7 |
120 |
60 |
| 12x1.5 |
0.7 |
2.8 |
3.3 |
0.21 |
1.5 |
15.8 |
18.5 |
450 |
13.7 |
120 |
60 |
| 19x1.5 |
0.7 |
2.8 |
3.3 |
0.26 |
1.5 |
17.8 |
20.8 |
660 |
13.7 |
120 |
60 |
| 24x1.5 |
0.7 |
2.8 |
3.3 |
0.26 |
1.6 |
20.7 |
24.2 |
850 |
13.7 |
120 |
60 |
| 32x1.5 |
0.7 |
2.8 |
3.3 |
0.26 |
1.7 |
22.7 |
26.6 |
1050 |
13.7 |
120 |
60 |
| 37x1.5 |
0.7 |
2.8 |
3.3 |
0.26 |
1.7 |
23.6 |
27.6 |
1160 |
13.7 |
120 |
60 |
| 4x2.5 |
1.95 |
0.8 |
3.4 |
4.0 |
0.21 |
1.4 |
11.8 |
13.9 |
280 |
8.21 |
90 |
45 |
| 7x2.5 |
0.8 |
3.4 |
4.0 |
0.21 |
1.4 |
13.7 |
16.1 |
400 |
8.21 |
90 |
45 |
| 9x2.5 |
0.8 |
3.4 |
4.0 |
0.26 |
1.5 |
16.8 |
19.7 |
560 |
8.21 |
90 |
45 |
| 12x2.5 |
0.8 |
3.4 |
4.0 |
0.26 |
1.5 |
18.0 |
21.1 |
660 |
8.21 |
90 |
45 |
| 19x2.5 |
0.8 |
3.4 |
4.0 |
0.26 |
1.6 |
21.1 |
24.6 |
950 |
8.21 |
90 |
45 |
| 24x2.5 |
0.8 |
3.4 |
4.0 |
0.26 |
1.8 |
24.7 |
28.9 |
1260 |
8.21 |
90 |
45 |
(a) = One earth conductor (green/yellow) can be included upon request
(b) = For information,indicative only
FRL-SW-1M-OS 0.6/1 kV
| Number And Nominal Cross-Sectional Area(a) |
Conductor Diameter (a) |
Min. Mean Thickness of Insulation |
Diameter of Core(a) |
Min. Mean Thickness of Sheath |
Min. Average Sheath Thickness |
Overall Diameter |
Weight |
Maximum Conductor Resistance |
Insulation Resistance |
| EI 105 |
EI 101- EI 104 |
| Min |
Max |
Min |
Max |
20℃ |
20℃ |
20℃ |
| mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
Ω/km |
MΩ x km |
MΩ x km |
| TWO CORES |
| 1.5 |
1.5 |
0.8 |
3.0 |
3.5 |
0.16 |
1.4 |
9.3 |
10.9 |
150 |
13.7 |
150 |
75 |
| 2.5 |
1.95 |
0.8 |
3.4 |
3.9 |
0.16 |
1.4 |
10.2 |
11.9 |
180 |
8.21 |
130 |
65 |
| 4 |
2.5 |
0.8 |
3.9 |
4.6 |
0.21 |
1.4 |
11.5 |
13.4 |
240 |
5.09 |
110 |
55 |
| 6 |
3.0 |
0.9 |
4.6 |
5.4 |
0.21 |
1.4 |
12.9 |
15.1 |
300 |
3.39 |
90 |
45 |
| 10 |
3.9 |
1.1 |
5.8 |
6.8 |
0.21 |
1.5 |
15.5 |
18.2 |
460 |
1.95 |
85 |
45 |
| 16 |
5.0 |
1.1 |
7.2 |
8.5 |
0.26 |
1.5 |
17.9 |
20.9 |
610 |
1.24 |
70 |
35 |
| 25 |
6.4 |
1.3 |
8.6 |
10.0 |
0.26 |
1.7 |
21.6 |
25.3 |
830 |
0.795 |
65 |
35 |
| 35 |
7.7 |
1.3 |
10.2 |
11.5 |
0.31 |
1.8 |
24.4 |
28.6 |
1130 |
0.565 |
60 |
30 |
| 50 |
9.2 |
1.5 |
11.6 |
13.5 |
0.31 |
1.9 |
28.2 |
33.0 |
1500 |
0.393 |
55 |
30 |
| THREE CORES |
| 1.5 |
1.5 |
0.8 |
3.0 |
3.5 |
0.16 |
1.4 |
9.8 |
11.4 |
180 |
13.7 |
150 |
75 |
| 2.5 |
1.95 |
0.8 |
3.4 |
3.9 |
0.16 |
1.4 |
10.7 |
12.5 |
220 |
8.21 |
130 |
65 |
| 4 |
2.5 |
0.8 |
3.9 |
4.6 |
0.21 |
1.4 |
12.0 |
14.1 |
300 |
5.09 |
110 |
55 |
| 6 |
3.0 |
0.9 |
4.6 |
5.4 |
0.21 |
1.4 |
13.6 |
16.0 |
380 |
3.39 |
90 |
45 |
| 10 |
3.9 |
1.1 |
5.8 |
6.8 |
0.26 |
1.5 |
16.7 |
19.6 |
620 |
1.95 |
85 |
45 |
| 16 |
5.0 |
1.1 |
7.2 |
8.5 |
0.26 |
1.6 |
19.1 |
22.3 |
800 |
1.24 |
70 |
35 |
| 25 |
6.4 |
1.3 |
8.6 |
10.0 |
0.26 |
1.7 |
22.9 |
26.8 |
1140 |
0.795 |
65 |
35 |
| 35 |
7.7 |
1.3 |
10.2 |
11.5 |
0.31 |
1.8 |
26.0 |
30.5 |
1500 |
0.565 |
60 |
30 |
| 50 |
9.2 |
1.5 |
11.6 |
13.5 |
0.31 |
2.0 |
30.3 |
35.4 |
2050 |
0.393 |
55 |
30 |
| FOUR CORES |
| 1.5 |
1.5 |
0.8 |
3.0 |
3.5 |
0.16 |
1.4 |
10.5 |
12.3 |
210 |
13.7 |
150 |
75 |
| 2.5 |
1.95 |
0.8 |
3.4 |
3.9 |
0.21 |
1.4 |
11.8 |
13.9 |
280 |
8.21 |
130 |
65 |
| 4 |
2.5 |
0.8 |
3.9 |
4.6 |
0.21 |
1.4 |
13.1 |
15.3 |
360 |
5.09 |
110 |
55 |
| 6 |
3.0 |
0.9 |
4.6 |
5.4 |
0.21 |
1.4 |
14.9 |
17.4 |
470 |
3.39 |
90 |
45 |
| 10 |
3.9 |
1.1 |
5.8 |
6.8 |
0.26 |
1.6 |
18.4 |
21.6 |
780 |
1.95 |
85 |
45 |
| 16 |
5.0 |
1.1 |
7.2 |
8.5 |
0.26 |
1.7 |
21.1 |
24.6 |
1020 |
1.24 |
70 |
35 |
| 25 |
6.4 |
1.3 |
8.6 |
10.0 |
0.31 |
1.8 |
25.6 |
29.9 |
1490 |
0.795 |
65 |
35 |
| 3X35+25 |
7.7/6.4 |
1.3/1.3 |
10.2/8.6 |
11.5/10.0 |
0.31 |
1.9 |
30.0 |
35.1 |
1820 |
0.565/0.795 |
60 |
30 |
| 3X50+25 |
9.2/6.4 |
1.5/1.3 |
11.6/8.6 |
13.5/10.0 |
0.31 |
2.1 |
34.9 |
40.8 |
2480 |
0.393/0.795 |
55 |
30 |
(a) = for information, indicative only
