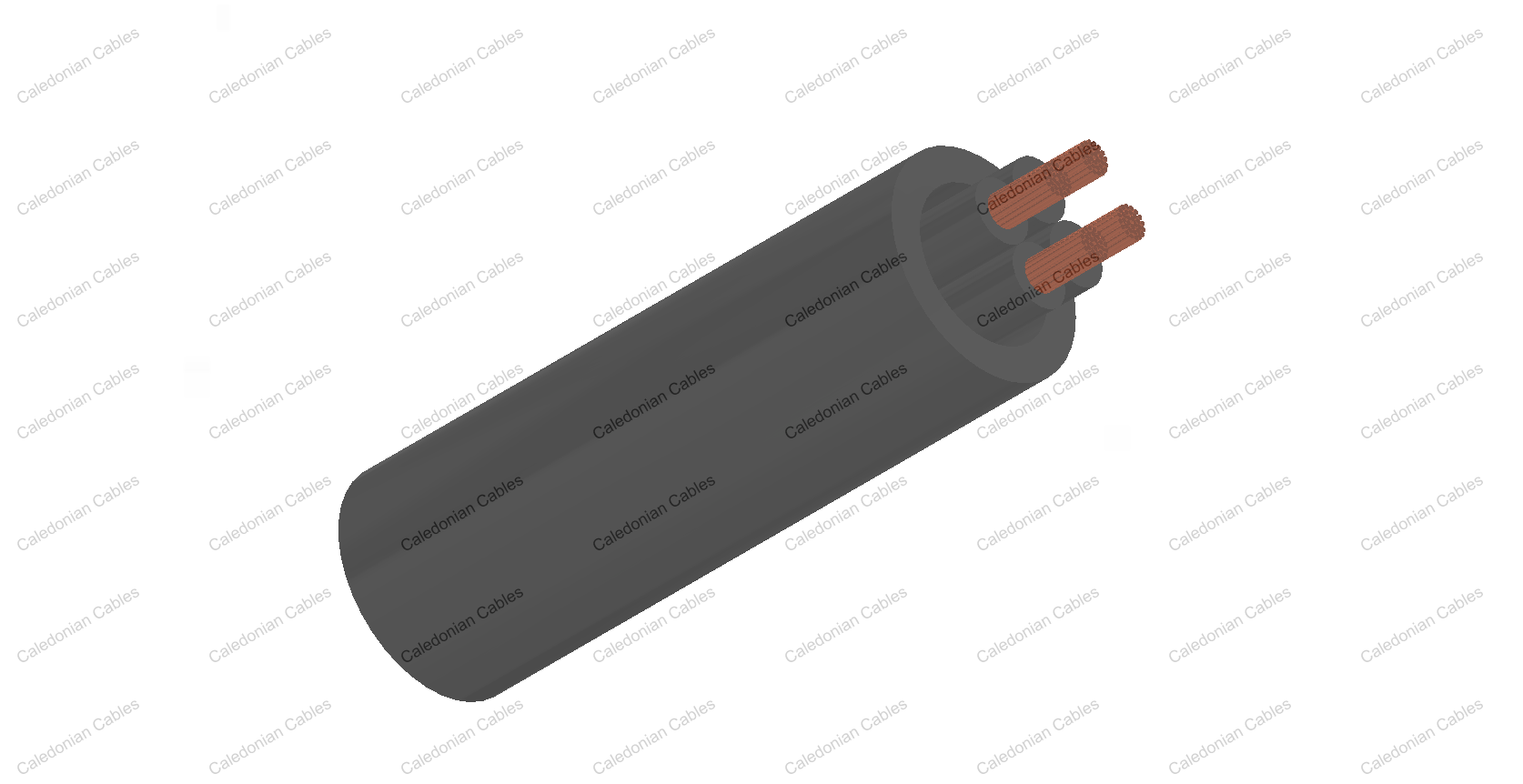

FIREROL Standard Wall Multicore Unscreened Cables 300/500 V or 0.6/1 kV
EN 50264-2-2 (FRL-SW-05M, FRL-SW-1M)
Application
- -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
- -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

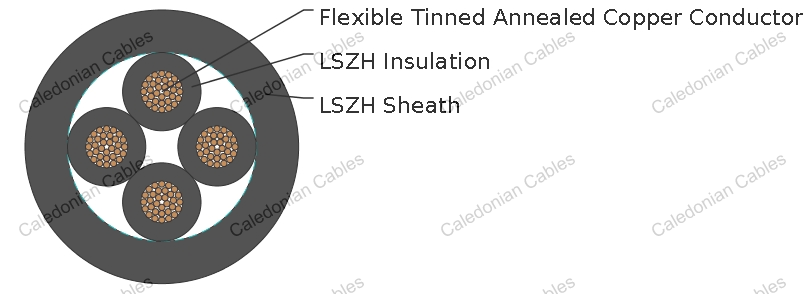

Construction
| Conductor | flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105) |
| Outer sheath | LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104) |
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V or 0.6/1 kV |
| Maximum Conductor Temperature | 90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) |
| Bending Radius | 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Propertie
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
Fire Performance for rolling stock application
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
|
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
FRL-SW-05M 300/500 V
| Number And Nominal Cross-Sectional Area(a) | Conductor Diameter (b) | Min. Mean Thickness of Insulation | Diameter of Core(b) | Min. Mean Thickness of Sheath | Overall Diameter | Weight | Maximum Conductor Resistance | Insulation Resistance | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI 105 | EI 101- EI 104 | ||||||||||
| Min | Max | Min | Max | 20℃ | 20℃ | 20℃ | |||||
| n x mm2 | mm | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 2x1 | 1.2 | 0.6 | 2.4 | 2.8 | 1.4 | 7.2 | 8.5 | 100 | 20.0 | 140 | 70 |
| 4x1 | 1.25 | 0.6 | 2.4 | 2.8 | 1.4 | 8.2 | 9.6 | 130 | 20.0 | 140 | 70 |
| 7x1 | 0.6 | 2.4 | 2.8 | 1.4 | 9.6 | 11.2 | 180 | 20.0 | 140 | 70 | |
| 9x1 | 0.6 | 2.4 | 2.8 | 1.4 | 11.5 | 13.4 | 220 | 20.0 | 140 | 70 | |
| 12x1 | 0.6 | 2.4 | 2.8 | 1.4 | 12.3 | 14.4 | 280 | 20.0 | 140 | 70 | |
| 19x1 | 0.6 | 2.4 | 2.8 | 1.4 | 14.5 | 16.6 | 400 | 20.0 | 140 | 70 | |
| 24x1 | 0.6 | 2.4 | 2.8 | 1.5 | 16.7 | 19.6 | 530 | 20.0 | 140 | 70 | |
| 32x1 | 0.6 | 2.4 | 2.8 | 1.6 | 18.5 | 21.7 | 660 | 20.0 | 140 | 70 | |
| 37x1 | 0.6 | 2.4 | 2.8 | 1.6 | 19.2 | 22.4 | 720 | 20.0 | 140 | 70 | |
| 40x1 | 0.6 | 2.4 | 2.8 | 1.6 | 19.9 | 23.3 | 750 | 20.0 | 140 | 70 | |
| 4x1.5 | 1.5 | 0.7 | 2.8 | 3.3 | 1.4 | 9.2 | 10.8 | 170 | 13.7 | 120 | 60 |
| 7x1.5 | 0.7 | 2.8 | 3.3 | 1.4 | 10.9 | 12.8 | 250 | 13.7 | 120 | 60 | |
| 9x1.5 | 0.7 | 2.8 | 3.3 | 1.4 | 13.1 | 15.3 | 310 | 13.7 | 120 | 60 | |
| 12x1.5 | 0.7 | 2.8 | 3.3 | 1.4 | 14.0 | 16.4 | 400 | 13.7 | 120 | 60 | |
| 19x1.5 | 0.7 | 2.8 | 3.3 | 1.5 | 16.5 | 19.4 | 570 | 13.7 | 120 | 60 | |
| 24x1.5 | 0.7 | 2.8 | 3.3 | 1.6 | 19.5 | 22.8 | 760 | 13.7 | 120 | 60 | |
| 32x1.5 | 0.7 | 2.8 | 3.3 | 1.7 | 21.5 | 25.2 | 940 | 13.7 | 120 | 60 | |
| 37x1.5 | 0.7 | 2.8 | 3.3 | 1.7 | 22.4 | 26.2 | 1040 | 13.7 | 120 | 60 | |
| 4x2.5 | 1.95 | 0.8 | 3.4 | 4.0 | 1.4 | 10.7 | 12.5 | 240 | 8.21 | 90 | 45 |
| 7x2.5 | 0.8 | 3.4 | 4.0 | 1.4 | 12.7 | 14.9 | 360 | 8.21 | 90 | 45 | |
| 9x2.5 | 0.8 | 3.4 | 4.0 | 1.5 | 15.6 | 18.3 | 450 | 8.21 | 90 | 45 | |
| 12x2.5 | 0.8 | 3.4 | 4.0 | 1.5 | 16.7 | 19.6 | 590 | 8.21 | 90 | 45 | |
| 19x2.5 | 0.8 | 3.4 | 4.0 | 1.6 | 19.7 | 23.1 | 860 | 8.21 | 90 | 45 | |
| 24x2.5 | 0.8 | 3.4 | 4.0 | 1.8 | 23.5 | 27.5 | 1150 | 8.21 | 90 | 45 | |
(a) = One earth conductor (green/yellow) can be included upon request
(b) = For information,indicative only
FRL-SW-6S-OS 3/6 kV
| Number And Nominal Cross-Sectional Area(a) | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Diameter of Core(a) | Min. Mean Thickness of Sheath | Overall Diameter | Weight | Maximum Conductor Resistance | Insulation Resistance | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI 105 | EI 101- EI 104 | ||||||||||
| Min | Max | Min | Max | 20℃ | 20℃ | 20℃ | |||||
| mm2 | mm | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| TWO CORES | |||||||||||
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 1.4 | 8.5 | 9.9 | 140 | 13.7 | 150 | 75 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 1.4 | 9.3 | 10.9 | 180 | 8.21 | 130 | 65 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 1.4 | 14.3 | 16.7 | 480 | 1.95 | 85 | 45 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 1.5 | 16.5 | 19.4 | 630 | 1.24 | 70 | 35 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 1.6 | 20.1 | 23.5 | 920 | 0.795 | 65 | 35 |
| 35 | 7.7 | 1.3 | 10.2 | 11.5 | 1.7 | 22.7 | 26.6 | 1200 | 0.565 | 60 | 30 |
| 50 | 9.2 | 1.5 | 11.6 | 13.5 | 1.9 | 26.7 | 31.2 | 1670 | 0.393 | 55 | 30 |
| THREE CORES | |||||||||||
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 1.4 | 8.9 | 10.5 | 160 | 13.7 | 150 | 75 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 1.4 | 9.9 | 11.6 | 210 | 8.21 | 130 | 65 |
| 4 | 2.5 | 0.8 | 3.9 | 4.6 | 1.4 | 11.0 | 12.9 | 270 | 5.09 | 110 | 55 |
| 6 | 3.0 | 0.9 | 4.6 | 5.4 | 1.4 | 12.5 | 14.6 | 360 | 3.39 | 90 | 45 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 1.5 | 15.3 | 17.9 | 600 | 1.95 | 85 | 45 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 1.6 | 17.8 | 20.8 | 790 | 1.24 | 70 | 35 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 1.7 | 21.6 | 25.3 | 1170 | 0.795 | 65 | 35 |
| 35 | 7.7 | 1.3 | 10.2 | 11.5 | 1.8 | 24.4 | 28.6 | 1530 | 0.565 | 60 | 30 |
| 50 | 9.2 | 1.5 | 11.6 | 13.5 | 1.9 | 28.2 | 33.3 | 2120 | 0.393 | 55 | 30 |
| FOUR CORES | |||||||||||
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 1.4 | 9.7 | 11.3 | 190 | 13.7 | 150 | 75 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 1.4 | 10.7 | 12.5 | 250 | 8.21 | 130 | 65 |
| 4 | 2.5 | 0.8 | 3.9 | 4.6 | 1.4 | 11.9 | 14.0 | 330 | 5.09 | 110 | 55 |
| 6 | 3.0 | 0.9 | 4.6 | 5.4 | 1.4 | 13.7 | 16.1 | 450 | 3.39 | 90 | 45 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 1.5 | 16.9 | 19.8 | 740 | 1.95 | 85 | 45 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 1.6 | 19.6 | 22.9 | 980 | 1.24 | 70 | 35 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 1.8 | 24.1 | 28.2 | 1460 | 0.795 | 65 | 35 |
| 3X35+25 | 7.7/6.4 | 1.3/1.3 | 10.2/8.6 | 11.5/10.0 | 1.9 | 28.5 | 34.2 | 1610 | 0.565/0.795 | 60 | 30 |
| 3X50+25 | 9.2/6.4 | 1.5/1.3 | 11.6/8.6 | 13.5/10.0 | 2.0 | 33.4 | 40.0 | 2230 | 0.393/0.795 | 55 | 30 |
(a) = for information, indicative only
